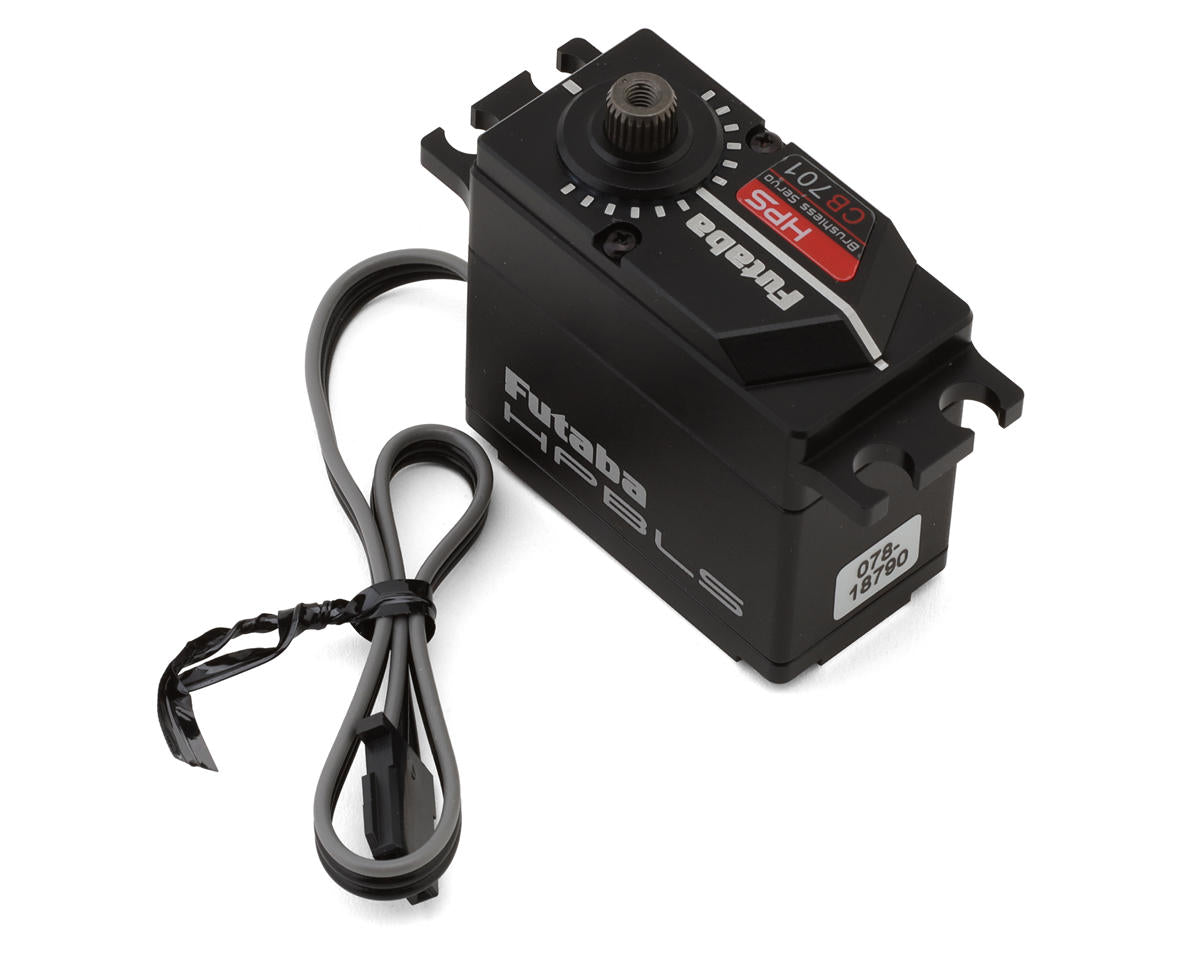

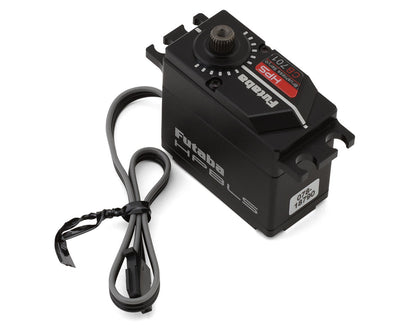

Futaba HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

The Futaba HPS-CB701 is a high-voltage brushless surface servo for 1/10 and 1/8 on-road and off-road vehicles. It features a custom high-power brushless motor, metal gears, a 25T output shaft spline, and full aluminum case construction.

Features

• High-voltage brushless surface servo
• Suitable for 1/10 and 1/8 on-road and off-road vehicles
• Custom high-power brushless motor
• SR mode compatible with compatible Futaba transmitters
• UR mode support with the T10PX
• Programmable through S.Bus and S.Bus2 systems
• PC programmable with the optional CIU-2 or CIU-3 USB adapter
• Full aluminum case construction
• High-strength and heat-dissipation design

Specifications

• Application: 1/10-1/8
• Input Voltage: 6.0-7.4V
• Operating Speed @ 6.0V: .09 sec/60°
• Operating Speed @ 7.4V: .075 sec/60°
• Dynamic Torque @ 6.0V: 583.3oz-in (42Kg-cm)
• Dynamic Torque @ 7.4V: 680.5oz-in (49.0Kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.83x1.49in (40.5x21x37.8mm)
• Weight: 2.65oz (75g)

Includes

• (1) HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

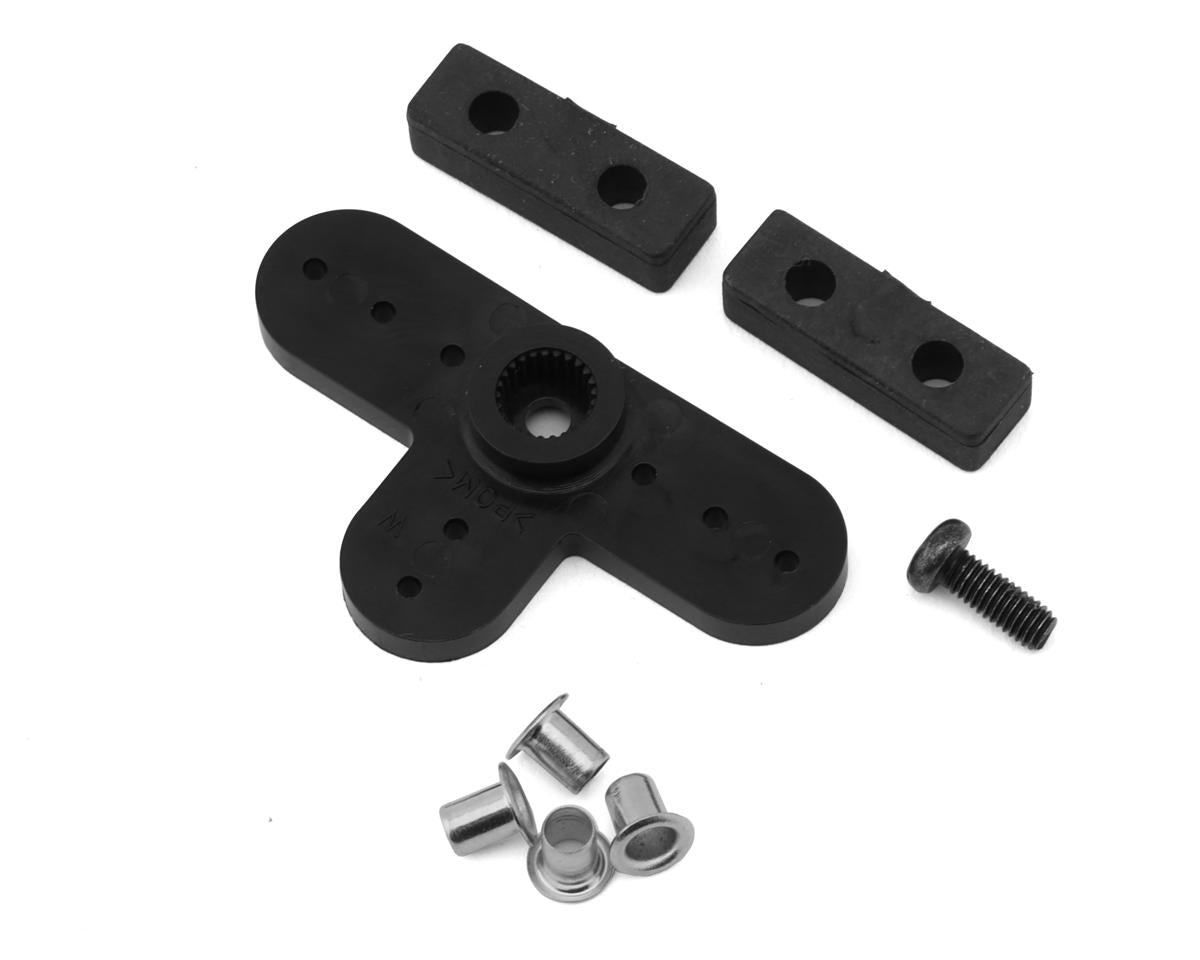

• Composite Servo Horns & Accessories
