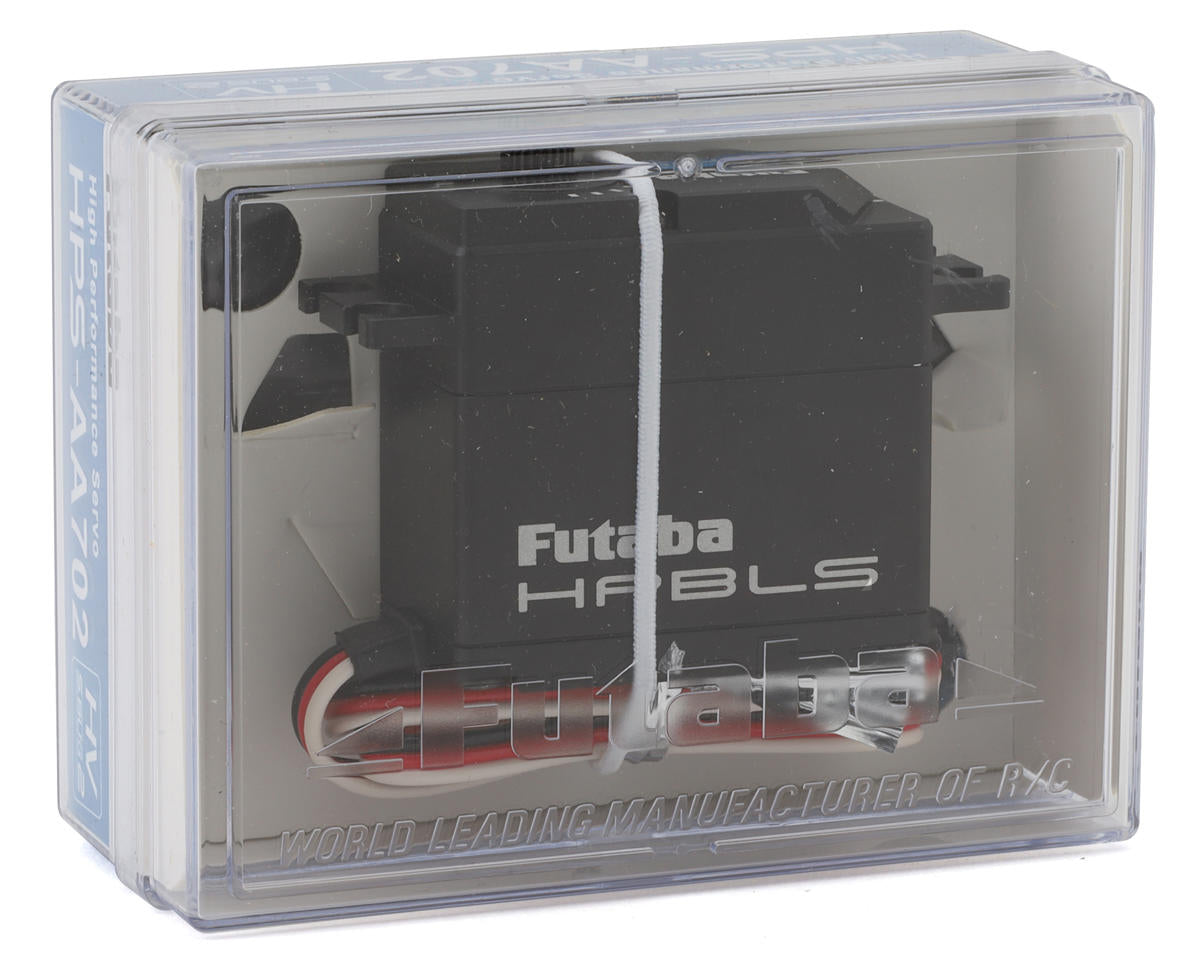

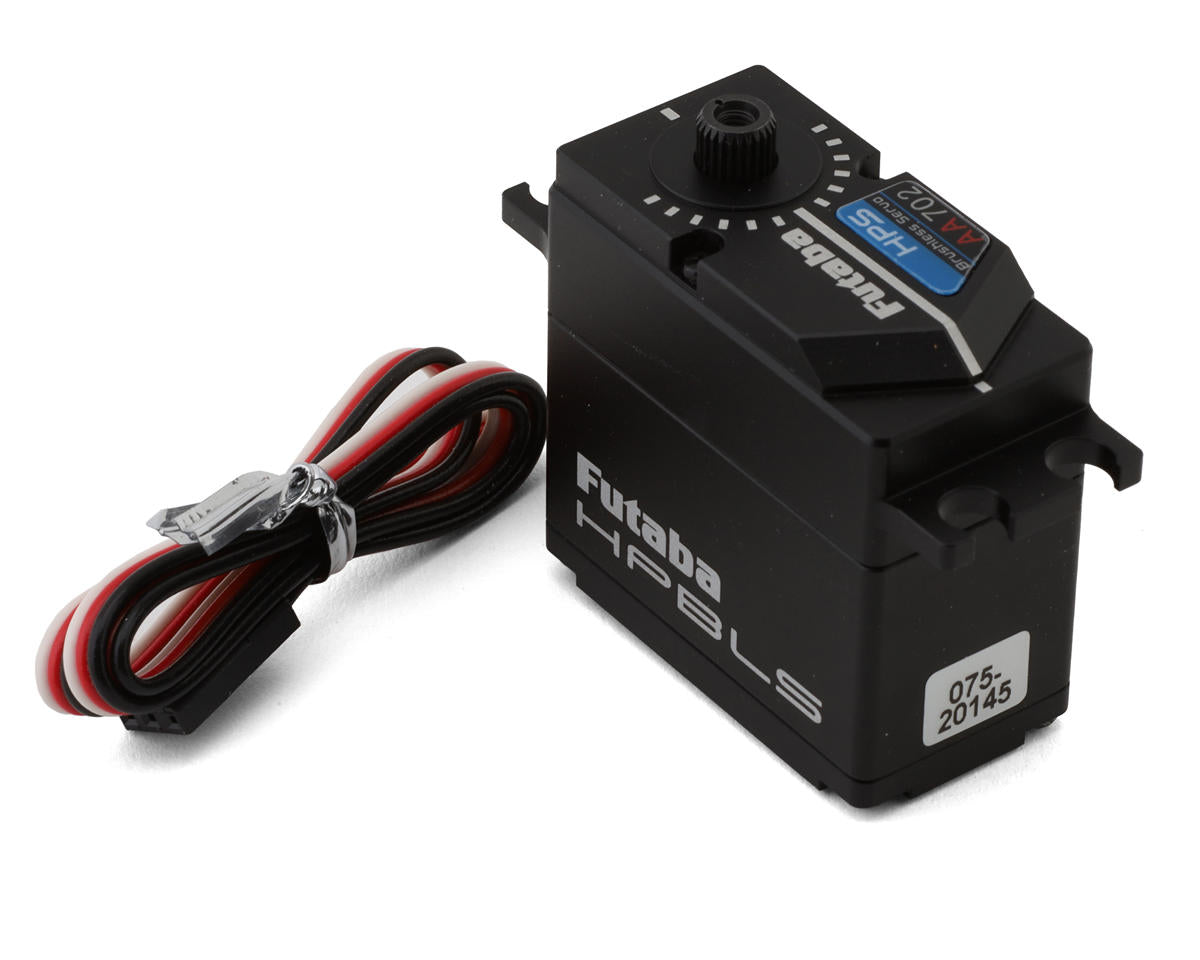

Futaba HPS-AA702 Brushless S.Bus2 Airplane Servo (High Voltage)

The Futaba HPS-AA702 is a high-voltage brushless S.Bus2 airplane servo for all-purpose giant scale airplanes. It features a programmable brushless motor, S.Bus and S.Bus2 compatibility, a stainless steel final gear, and an aluminum case.

Features

• Custom high power Brushless Motor
• Programmable and compatible with S.Bus and S.Bus2 systems
• Stainless steel final gear
• Aluminum Case construction

Specifications

• Speed: @6.6V: 0.08sec/60°; @7.4V: 0.075sec/60°
• Torque: @6.6V: 513.86oz-in (37.0kg-cm); @7.4V: 569.41oz-in (41.0kg-cm)
• Dimensions: 1.59x0.83x1.55in (40.5x21x39.4mm)
• Weight: 2.82oz (80g)
• Operating Voltage: 6.0-7.4V
• Spline: 25T
• Waterproof: No

Includes

• (1) HPS-AA702 Brushless S.Bus2 Airplane Servo

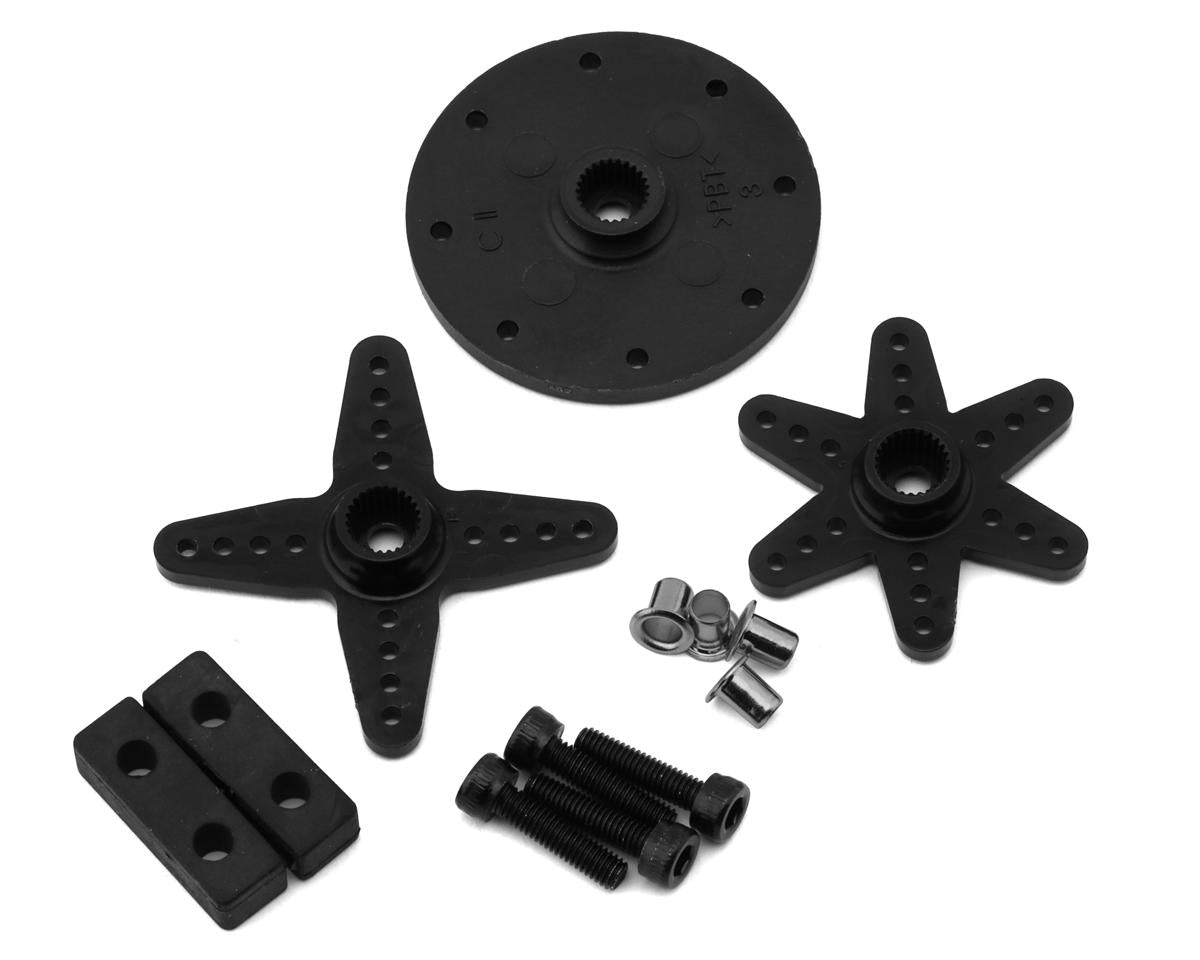

• Assorted Servo Horns and Mounting Hardware
