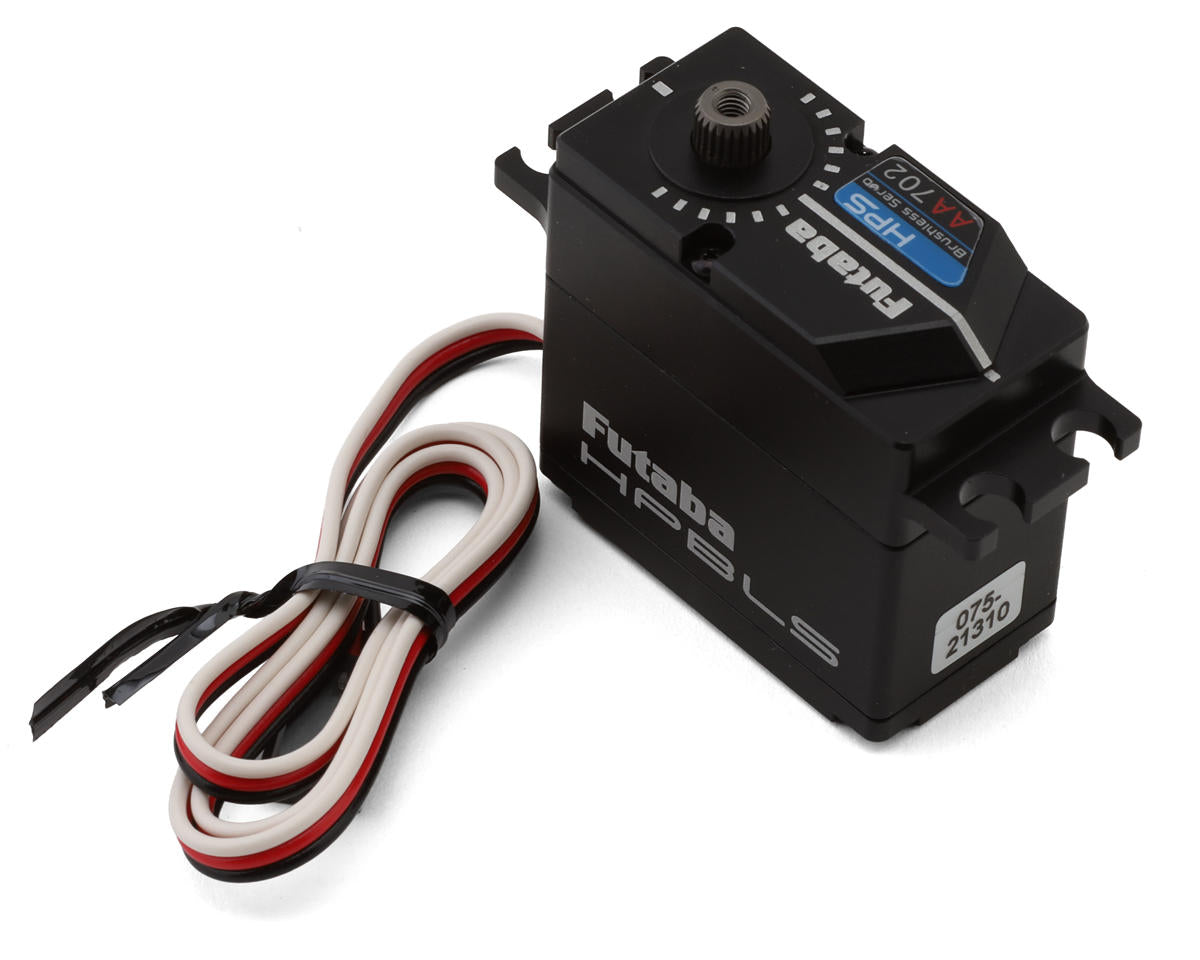

Futaba HPS-AA702 Brushless S.Bus2 Airplane Servo (High Voltage)

The Futaba HPS-AA702 is a high-voltage brushless S.Bus2 airplane servo designed for giant scale aircraft. It features a custom high-power brushless motor, programmable S.Bus and S.Bus2 support, a stainless steel final gear, and full aluminum case construction.

Features

• High-voltage brushless airplane servo
• Designed for giant scale aircraft
• Custom high-power brushless motor
• S.Bus and S.Bus2 programmable
• PC programmable with optional CIU-2/CIU-3
• Stainless steel final gear
• Full aluminum case construction
• Suggested upgrade for BLS172SV/177SV/AA700

Specifications

• Application: Aircraft
• Input Voltage: 6.0-7.4V
• Operating Speed @ 6.6V: .08 sec/60°
• Operating Speed @ 7.4V: .075 sec/60°
• Dynamic Torque @ 6.6V: 513.86oz-in (37Kg-cm)
• Dynamic Torque @ 7.4V: 569.41oz-in (41Kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.83x1.55in (40.5x21x39.4mm)
• Weight: 2.82oz (80g)

Includes

• (1) HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

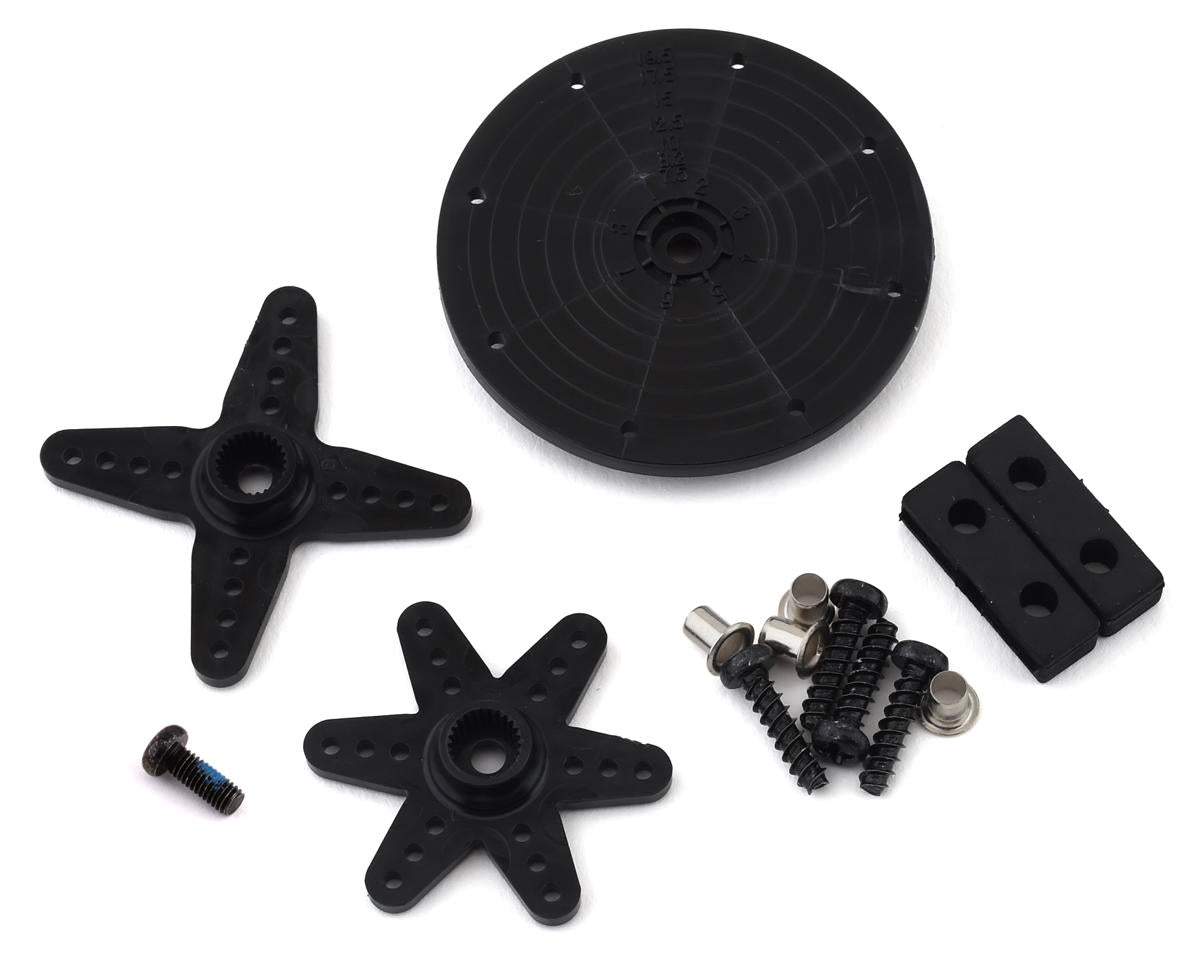

• Composite Servo Horns & Accessories
