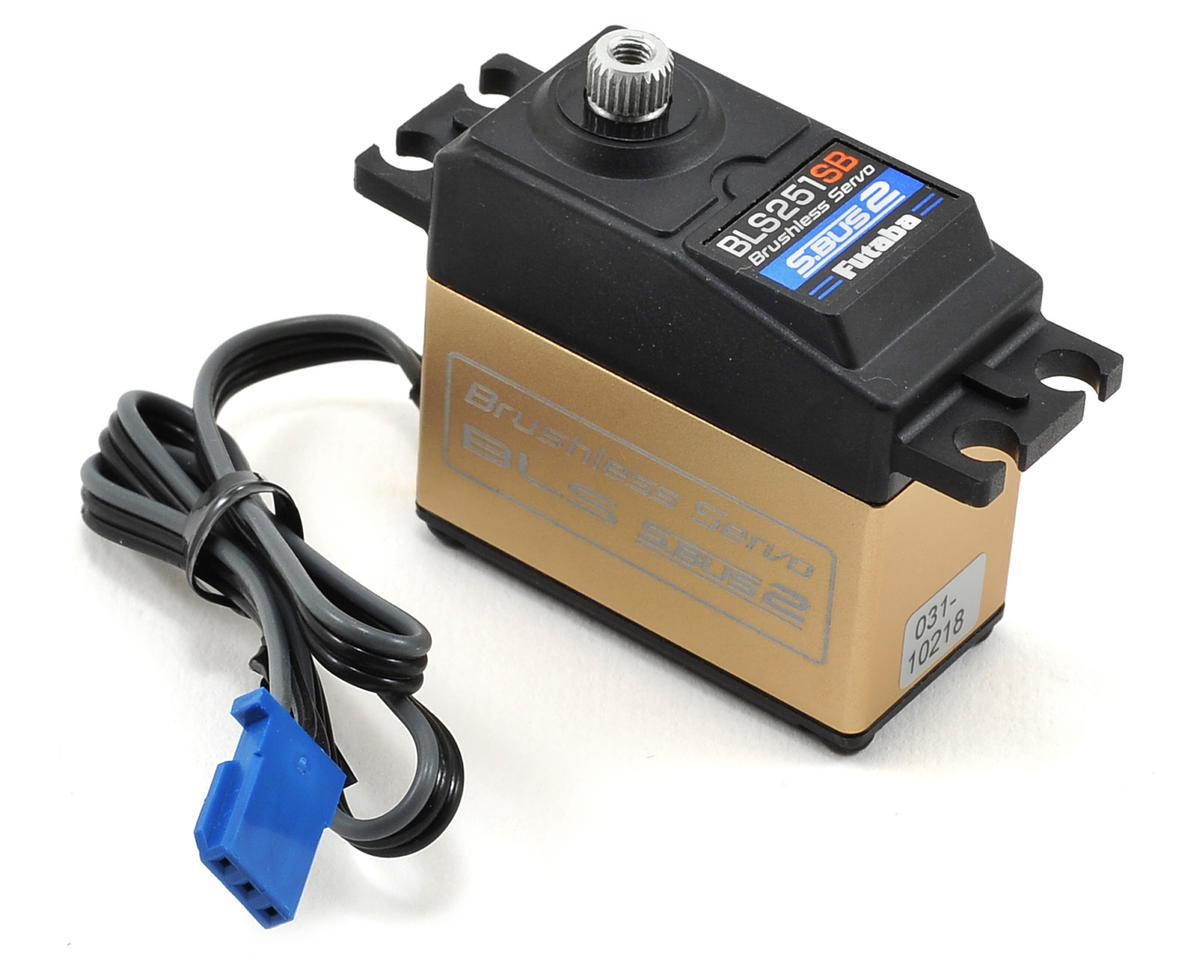

Futaba BLS251SB Brushless S.Bus2 Programmable Heli Tail Servo

The Futaba BLS251SB is a brushless digital helicopter tail servo with S.Bus and S.Bus2 programmability. Its aluminum center case section helps dissipate heat, while the brushless motor offers holding power and 5X longer life than servos equipped with brushed motors.

Features

• Compatible with Futaba CGY750, GY701, GY520, GY430, GY611 and GY601 gyros
• Programmable and compatible with S.Bus and S.Bus2
• Brushless motor design
• Aluminum center case section helps dissipate heat
• One year limited manufacturer warranty beginning at date of purchase

Specifications

• Torque: 52.78 oz-in (3.8 kg-cm) @ 4.8V
• Speed: 0.06 sec/60° @ 4.8V
• Dimensions: 1.57x0.79x1.45" (40 x 20 x 36.8mm)
• Weight: 2.12 oz (60g)
• Power Supply: 4.8V
• Neutral Pulse Width: 760us

Includes

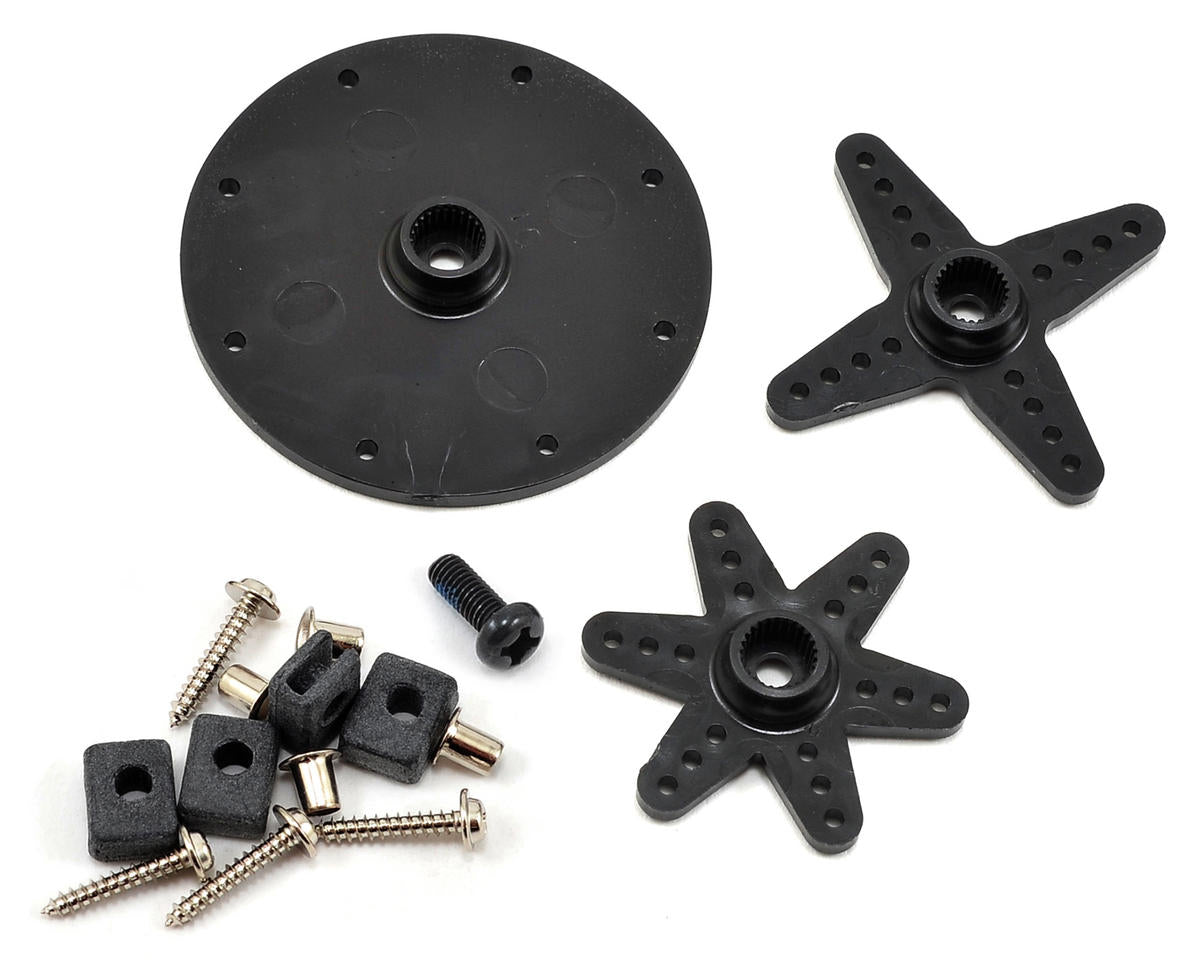

• BLS251SB S.Bus2 Servo with Instructions and Mounting Hardware
• 1.8" (45mm) diameter Round Horn
• 1.52" (38.7mm) four point Horn
• 1.2" (31.5mm) six point Horn

Important Note

Do not connect this servo directly to a receiver or damage will result. This servo is compatible only with the gyros listed above. Do not use with 1520us pulse width.
