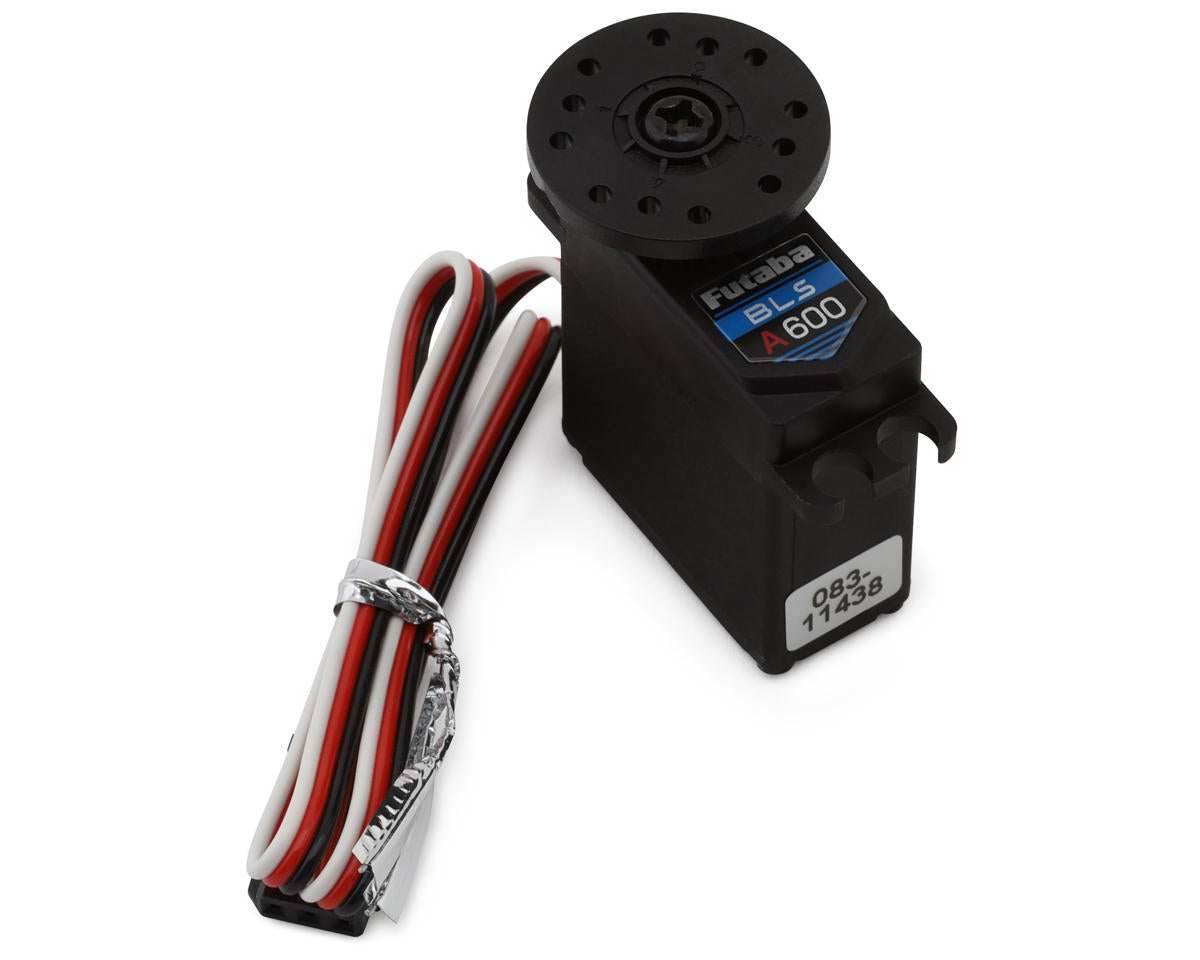

Futaba BLS-A600 Brushless Mini S.Bus2 Airplane Servo (High Voltage)

The Futaba BLS-A600 is a compact, high-voltage brushless mini servo for RC airplanes. It supports S.Bus2 compatibility and delivers 0.10sec/60° speed at 6.6V and 0.09sec/60° at 7.4V.

Features

• Brushless motor for high efficiency and long life
• High-voltage capable
• S.Bus2 compatibility
• Compact size for installation in smaller aircraft
• Durable and lightweight construction

Specifications

• Input Voltage: 6.0-7.4V
• Speed: @6.6V: 0.10sec/60°; @7.4V: 0.09sec/60°
• Torque: @6.6V: 83.3oz-in (6.00kg-cm); @7.4V: 93.0oz-in (6.70kg-cm)
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.07x0.51x1.2in (27.2x13x30.5mm)
• Weight: 0.98oz (28g)

Includes

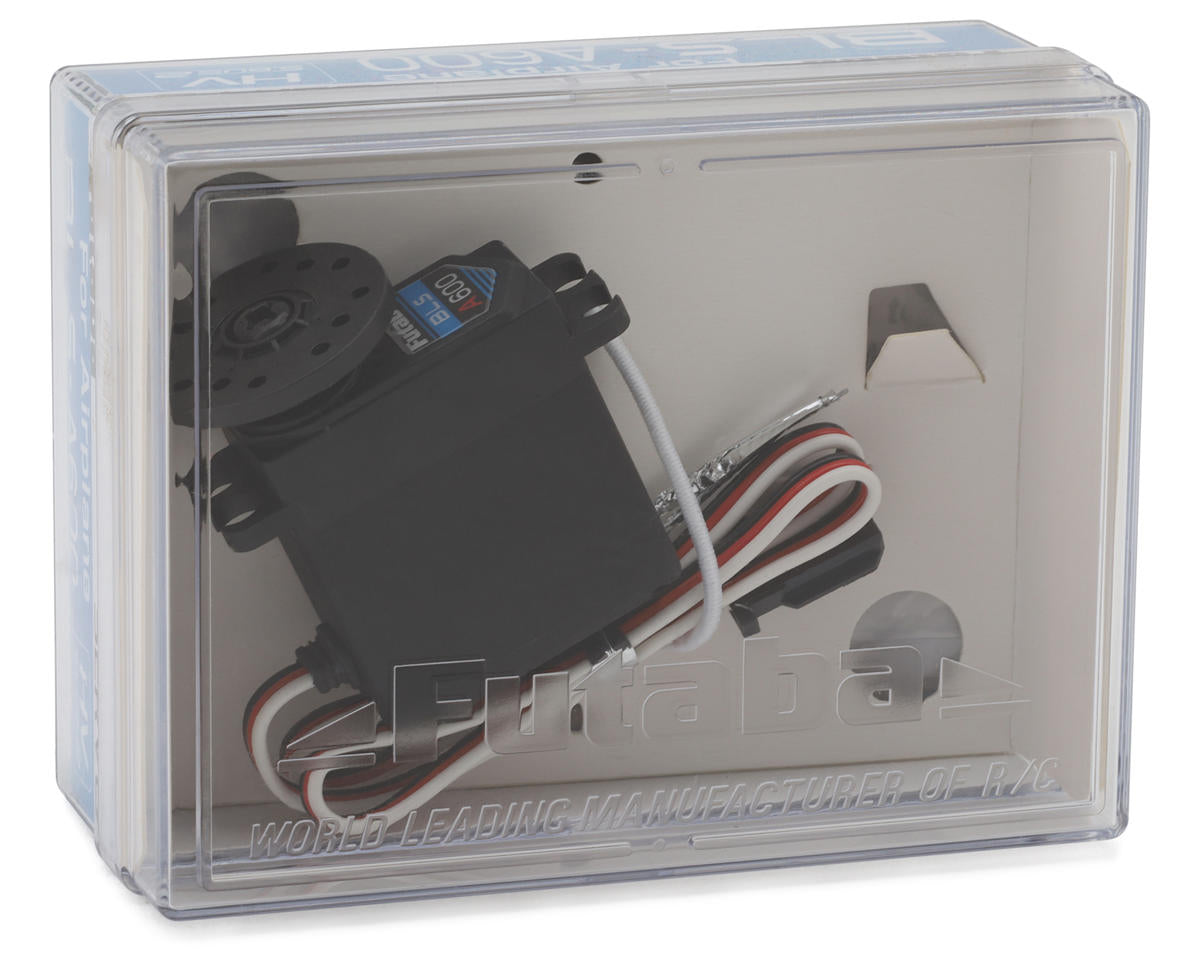

• (1) BLS-A600 Brushless Mini S.Bus2 Airplane Servo

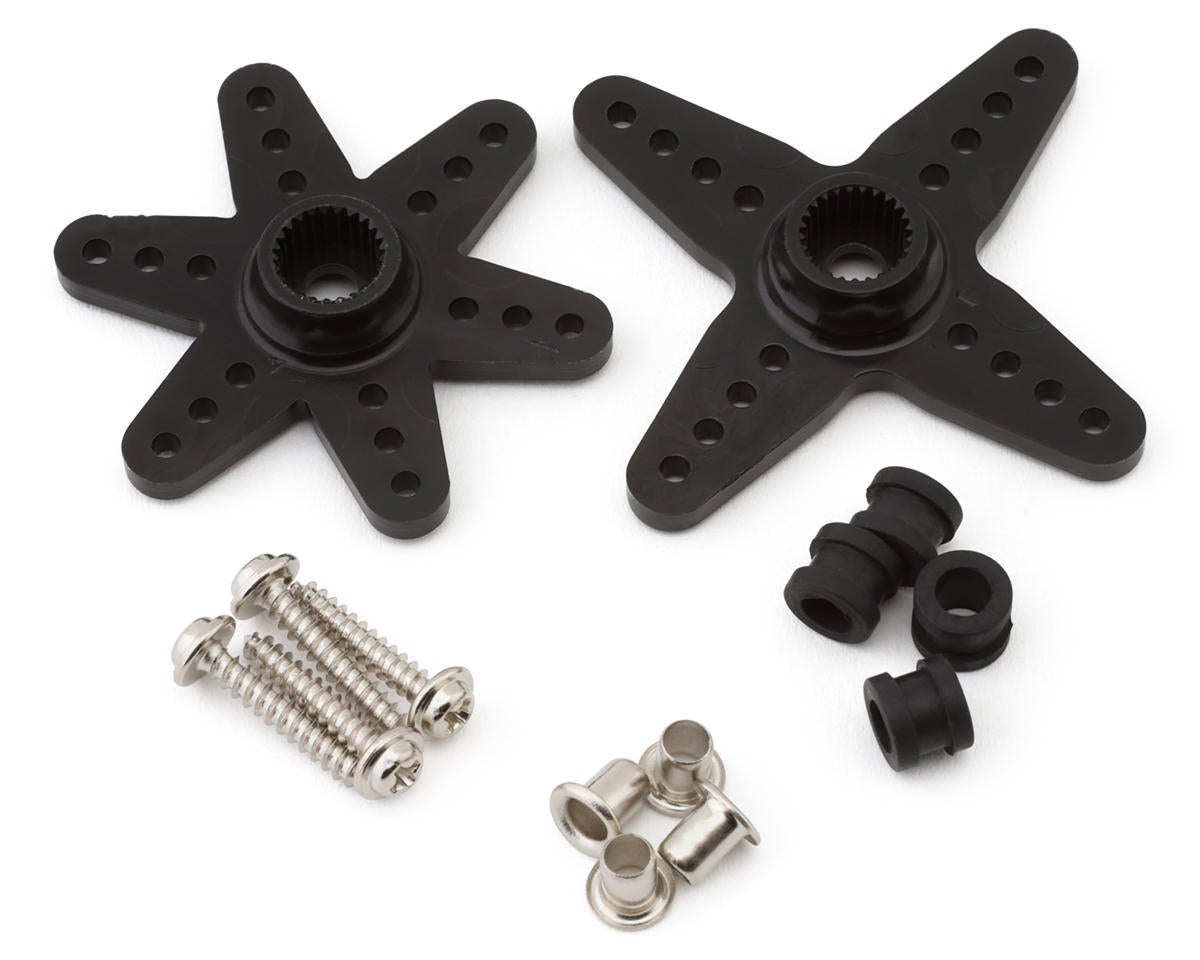

• Assorted Servo Horns and Mounting Hardware
