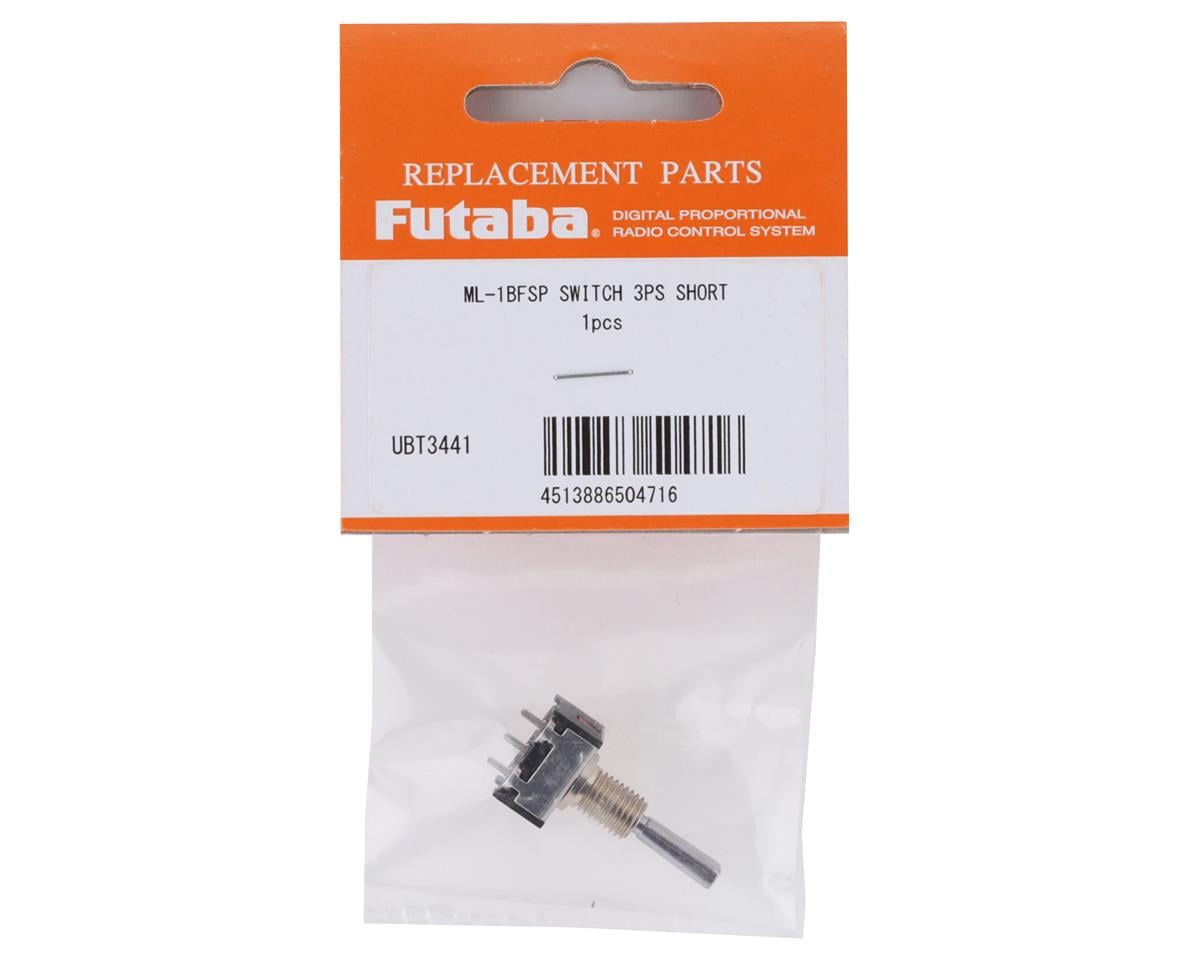

Futaba 3 Position Short Toggle

The Futaba 3 Position Short Toggle is a replacement switch for select Futaba radios. It is not compatible with the 9Z Series Radio.

Switch Part Number Applications

• 8UA F/P non-Super and Super airplane: A, D, E: FUTM3676; G: FUTM3677; B, H: FUTM3678; C: FUTM3679; F: FUTM3680
• 8UH F/P non-Super and Super helicopter: A, D, G: FUTM3676; E: FUTM3677; B, F: FUTM3678; C: FUTM3679; SSw H: FUTM3680
• 6VA airplane: trainer: FUTM3680; all except trainer: FUTM3676
• 6VH helicopter: all except gear: FUTM3676; gear/ch 5: FUTM3678
• 5UA, 6XA and 6XAS airplane: Ele, ail D/R: FUTM3676; Gear/Flap-air: FUTM3676; Gear-heli: FUTM3678; Air Brake-Air: FUTM3678; IdleUp/ThrHold-Heli: FUTM3676
• 6YG: Gear: FUTM3676
• 7UA F/P non-Super or Super airplane: Ele/Ail D/R, gear, mix: FUTM3676; Rudder D/R: FUTM3676; Mix: FUTM3679
• 7UH F/P non-Super or Super helicopter: Ele/Ail D/R, Thr Hold: FUTM3676; Rudder D/R: FUTM3676; Ch 5/Ch 7: FUTM3678; Idle up: FUTM3677

Installation Information

Futaba supplies this switch as a spare part for modelers with the skills and tools to replace switches on older, out-of-warranty, dropped or damaged radios. No installation instructions are provided. Replacing a switch on an in-warranty radio may void the warranty, and Futaba accepts no liability for damage resulting from switch replacement. For the D/R switch and Trainer switch, contact the warranty center.
