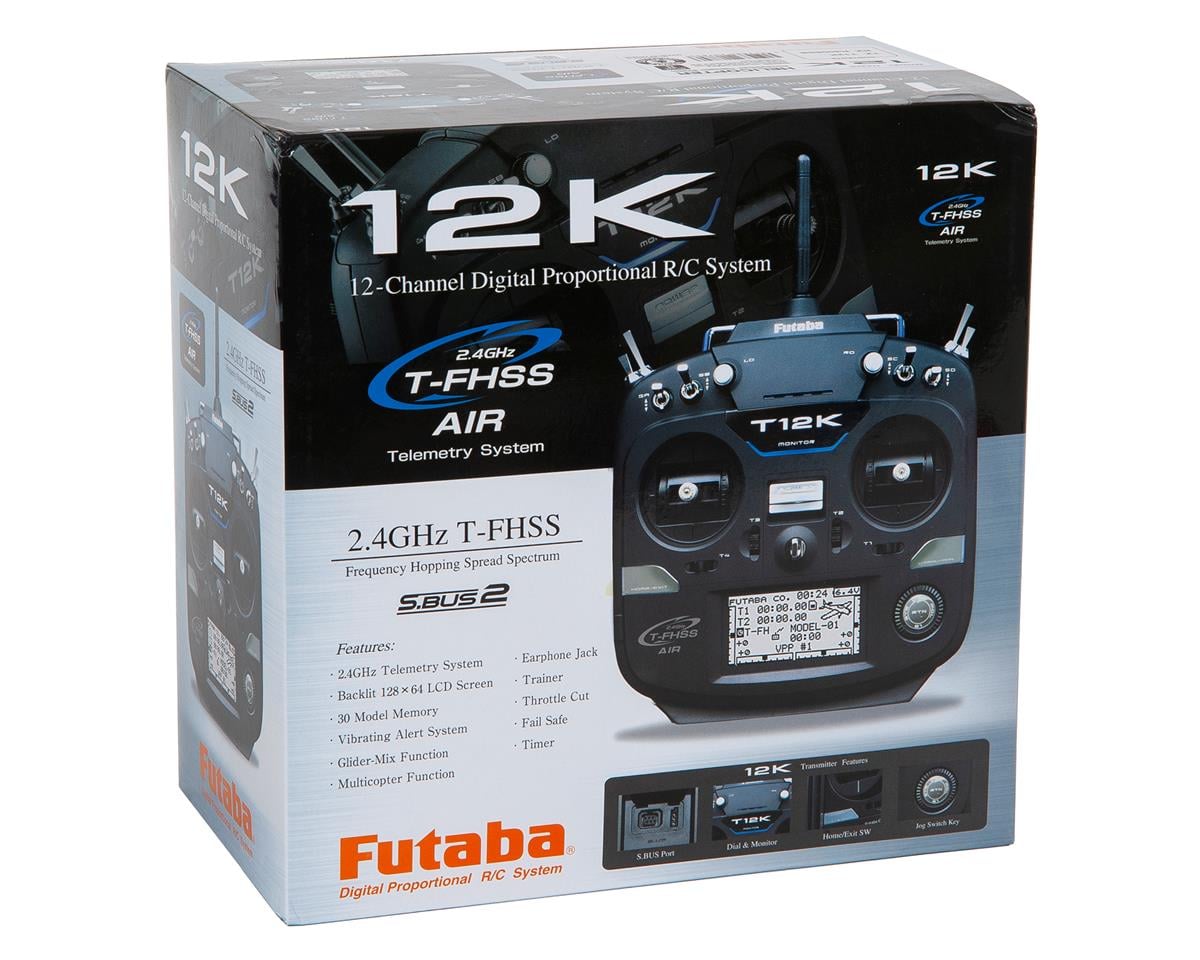

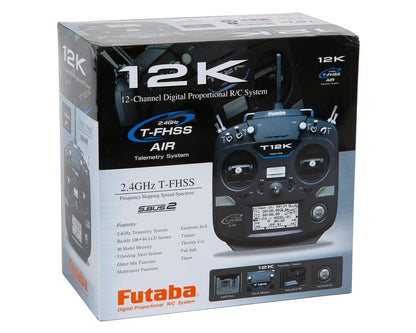

Futaba 12K 2.4GHz T-FHSS 14 Channel Radio System (FPV) w/R3001SB Receiver

The Futaba 12K 2.4GHz T-FHSS 14 Channel Radio System is designed for FPV drones and can also be programmed for helicopters, airplanes, and other aircraft. This system includes an R3001SB receiver, a 6V 1800mAh NiMH battery, and charger.

Transmitter Features

• 14 channels: 12 proportional and 2 switched
• Switchable T-FHSS Air and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims, and two push buttons
• Headphone plug, trainer port, and S.Bus plug-in
• S.Bus2 support for servos, gyros, and telemetry sensors
• Large backlit LCD screen with adjustable contrast
• Expandable 30-model memory with 10-character model naming
• Micro memory card slot for model information and system updates; supports SD-32MB to 2GB and SDHC-4GB to 32GB cards, not included
• Dual rates and exponential, five customizable programmable mixes, servo test, servo position display, fuel mixing, stick calibration, servo speed, logic switching, and smooth throttle movement
• Vibration alerts for alarms and timers
• Adjustable stick lengths and tension
• Six main wing types with three tail types for airplanes, six swash types for helicopters, and multi-rotor functions

Telemetry and Receiver

Using the T-FHSS protocol with compatible Futaba telemetry sensors, the system can transmit and receive telemetry data. The R3001SB receiver features standard PWM (CH3), an S.Bus port, and an S.Bus2 port for telemetry sensors and compatible gyros and servos.

• Receiver model: R3001SB
• Dual antenna diversity
• High voltage battery failsafe
• Channel mode settings: Mode A, 3/S.Bus; Mode B, CH3 S.Bus

Specifications

• Frequency: 2.4 GHz band
• System: T-FHSS Air, S-FHSS, switchable
• RF power output: 100mW EIRP

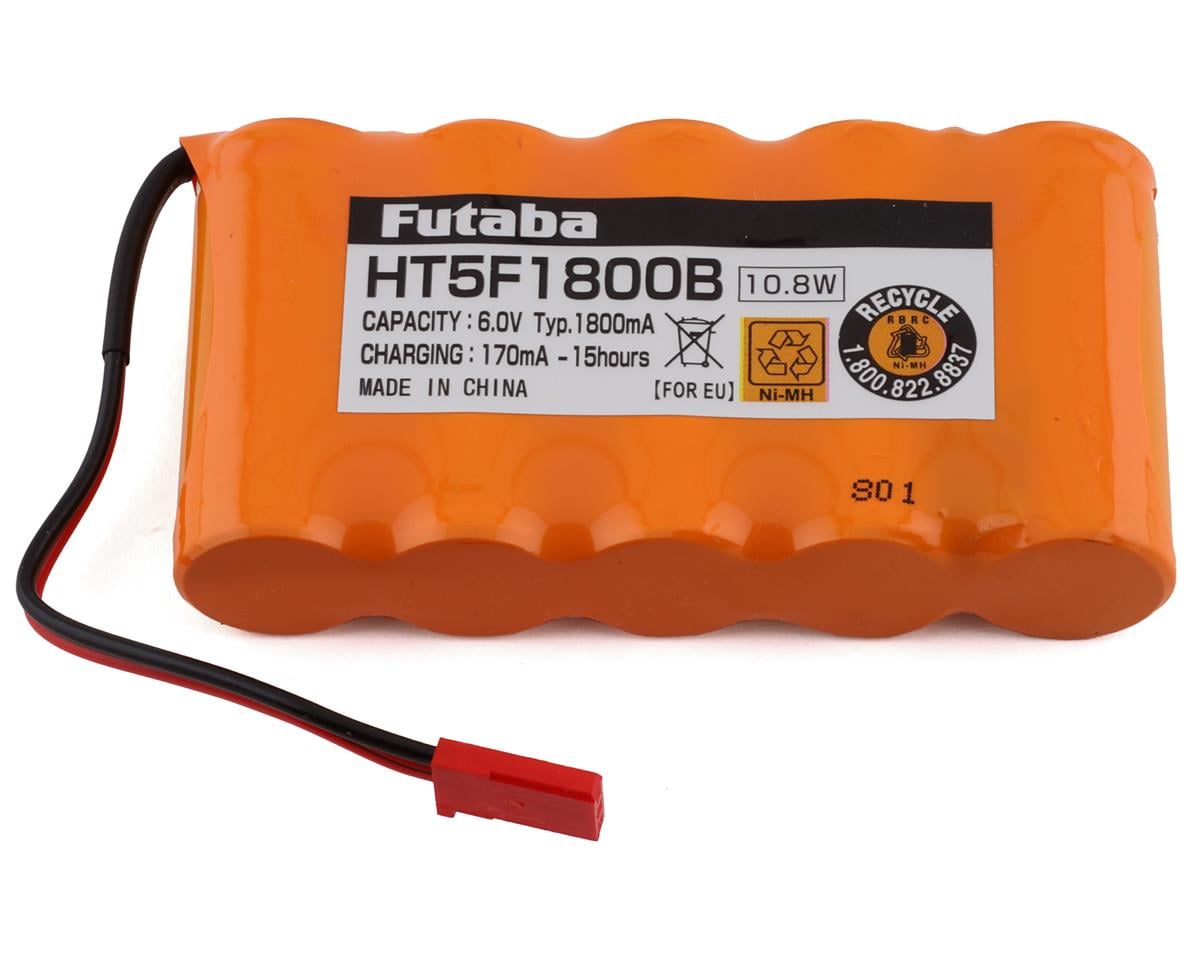

• Transmitter power supply: 6.0 V HT5F1800B NiMH battery
• Receiver dimensions: 0.83x1.65x0.21in (21.1x41.8x5.3mm)
• Receiver weight: 0.15oz (4.2g)
• Receiver voltage: 4.8-7.4V DC

Includes

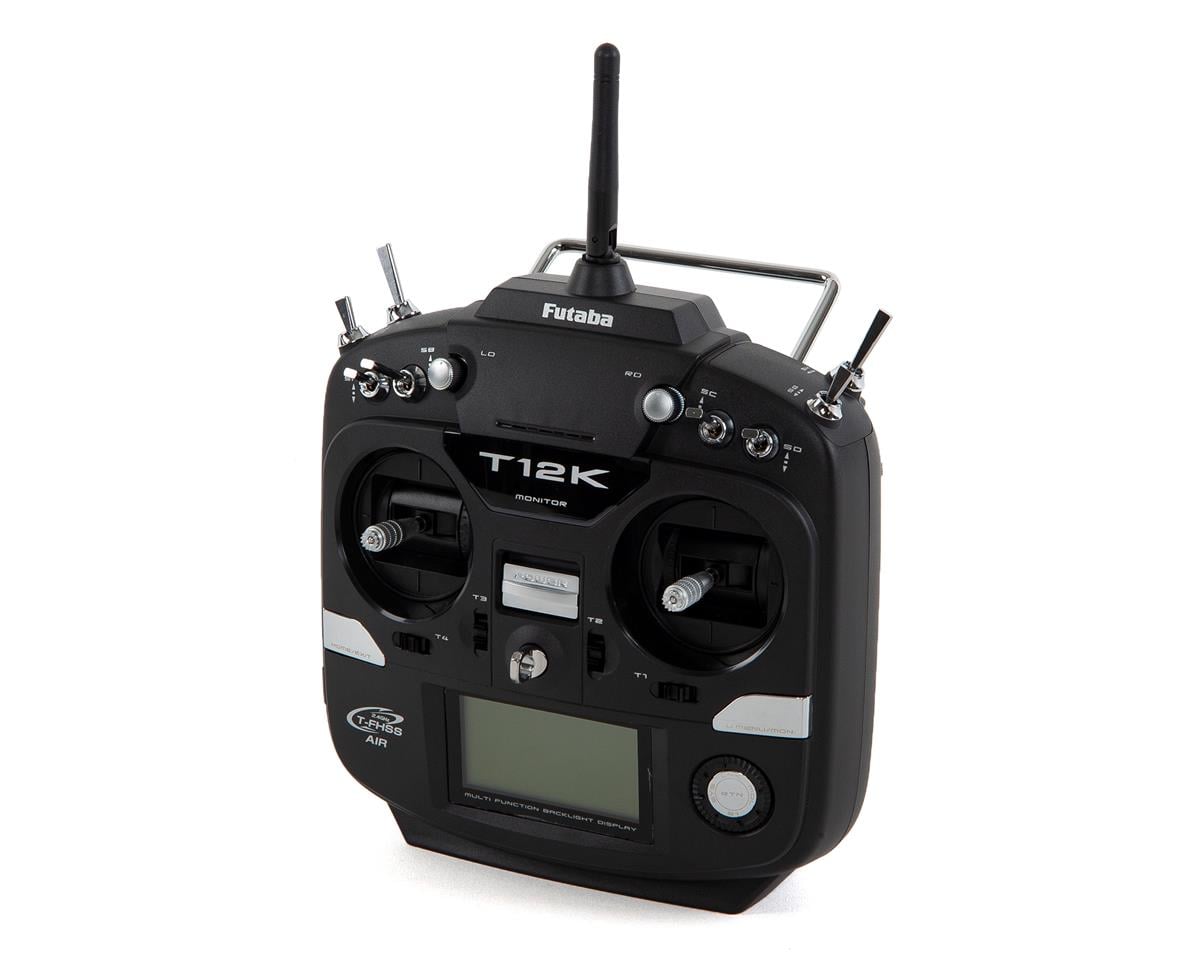

• Futaba 12K transmitter

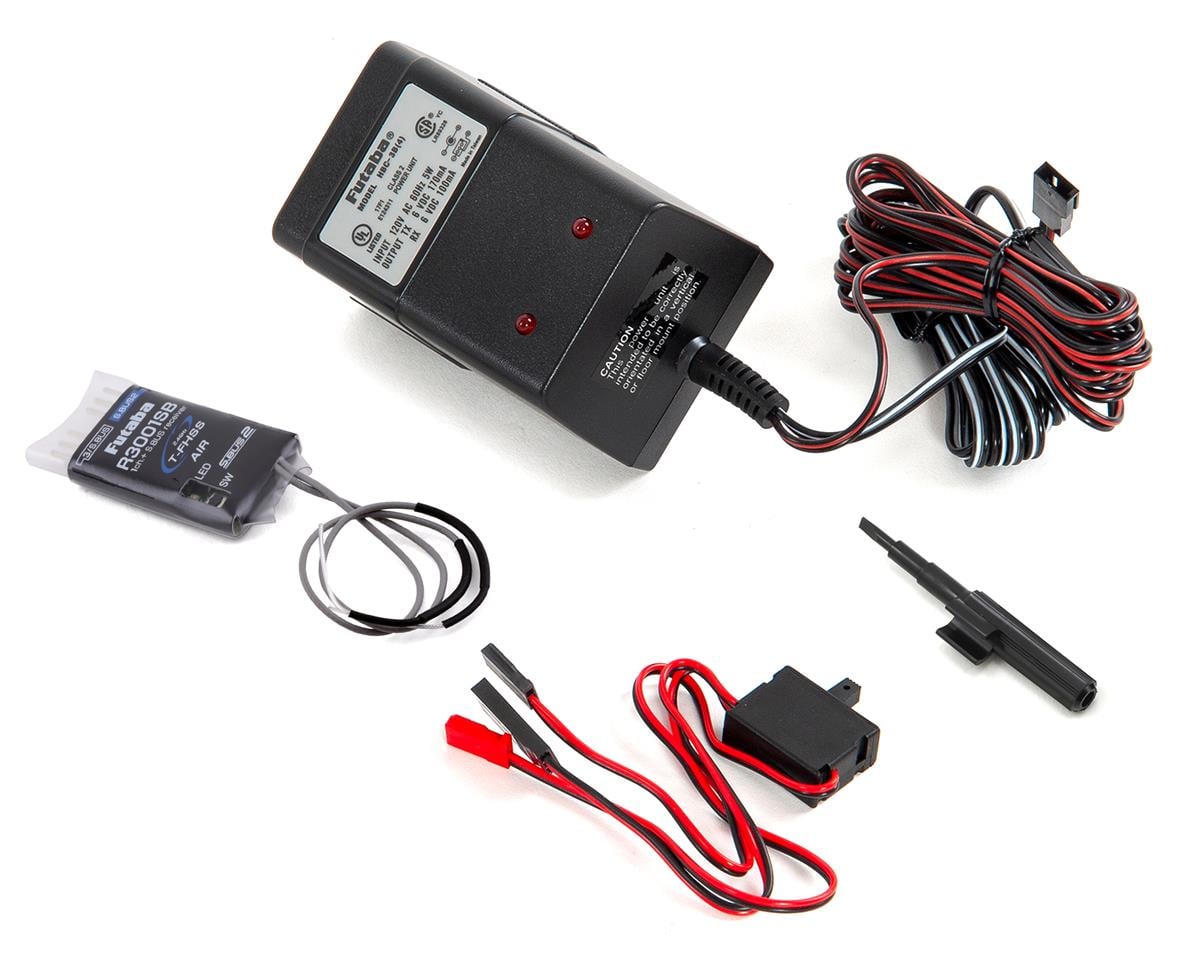

• R3001SB receiver
• HT5F1800B NiMH battery and charger
• Instruction manual
