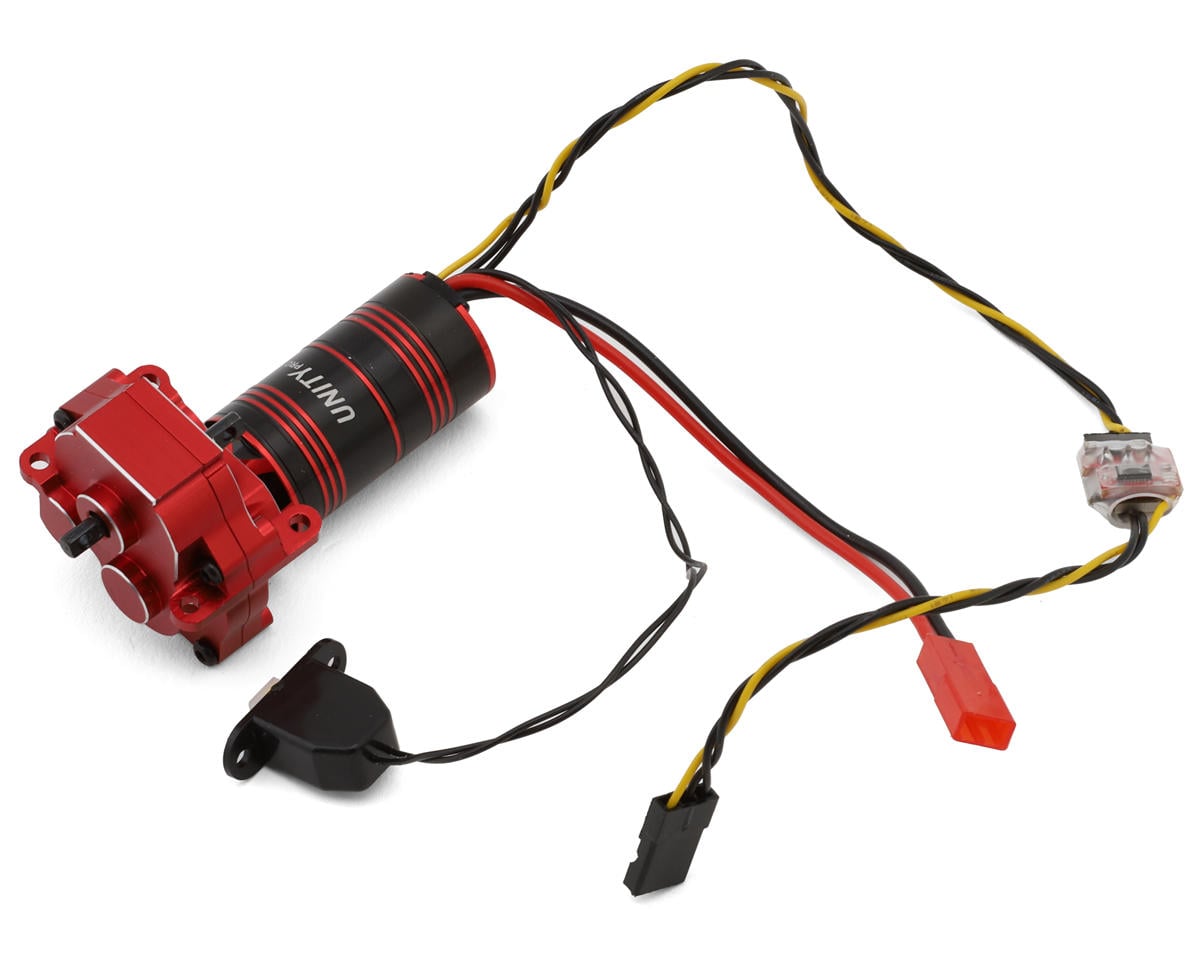

Furitek Unity PRO CRAWLCORE Waterproof 2-in-1 Brushless ESC & Motor Combo

The Furitek Unity PRO CRAWLCORE is a waterproof 2-in-1 brushless ESC and motor combo designed for Traxxas TRX-4M platforms. It combines a 3500kV brushless motor with a built-in FOC ESC for smooth, precise low-speed crawling control.

Features

• 2-in-1 brushless motor and ESC combo
• Fully waterproof and dustproof
• FOC technology for smooth throttle control
• Adjustable BEC: 5.5V / 7.4V / 8.4V @ 5A
• Furicar App support for tuning, telemetry monitoring, and firmware updates
• Plug-and-play design
• CNC aluminum gearbox housing
• Steel gears
• 40.3:1 gear ratio

Specifications

• Motor Type: Brushless
• Motor Turn/kV: 3500kV
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• BEC Voltage: 5.5-8.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin

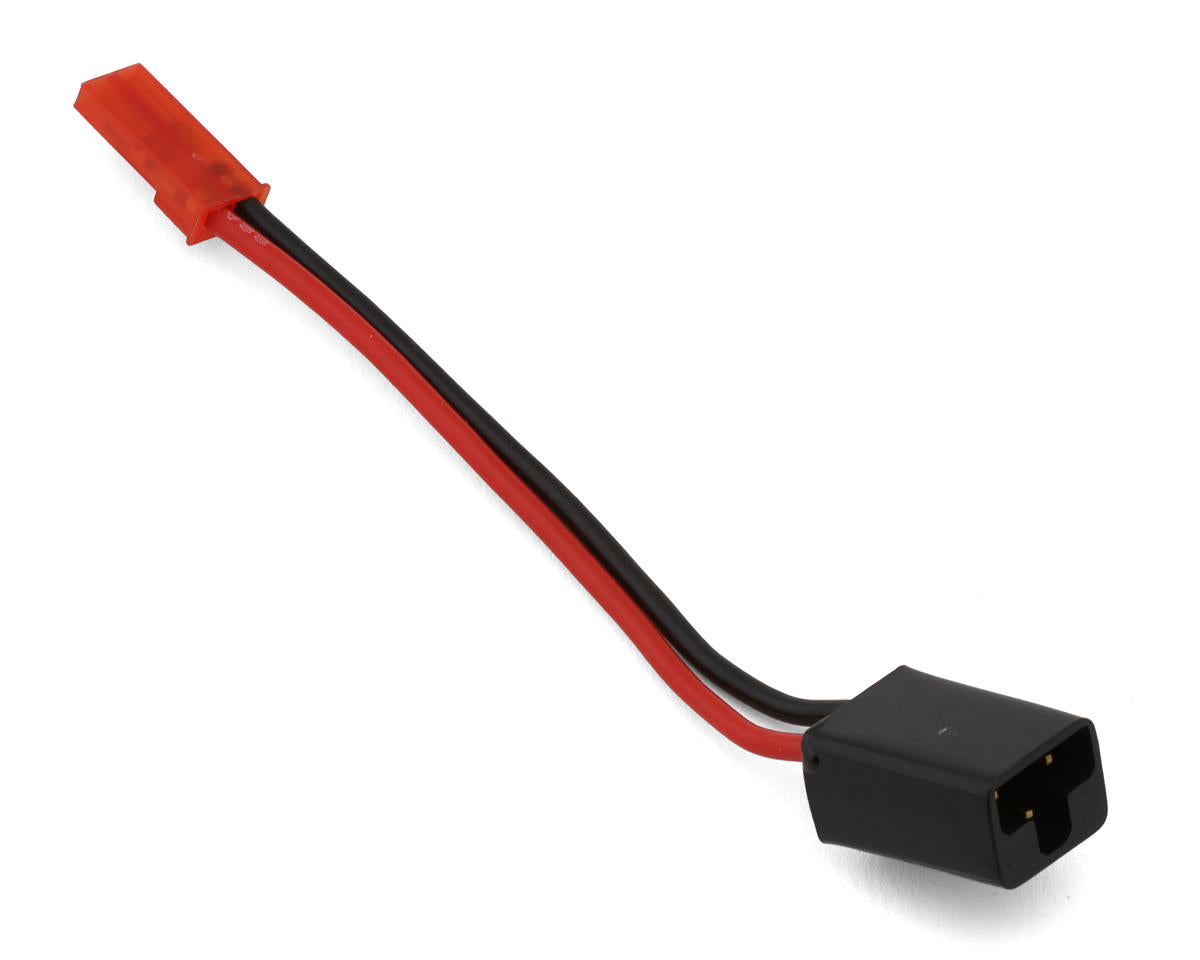

• Battery Connector: PH 2.0
• Programming: Furicar App
• Suggested Application: Micro Rock Crawlers

Included

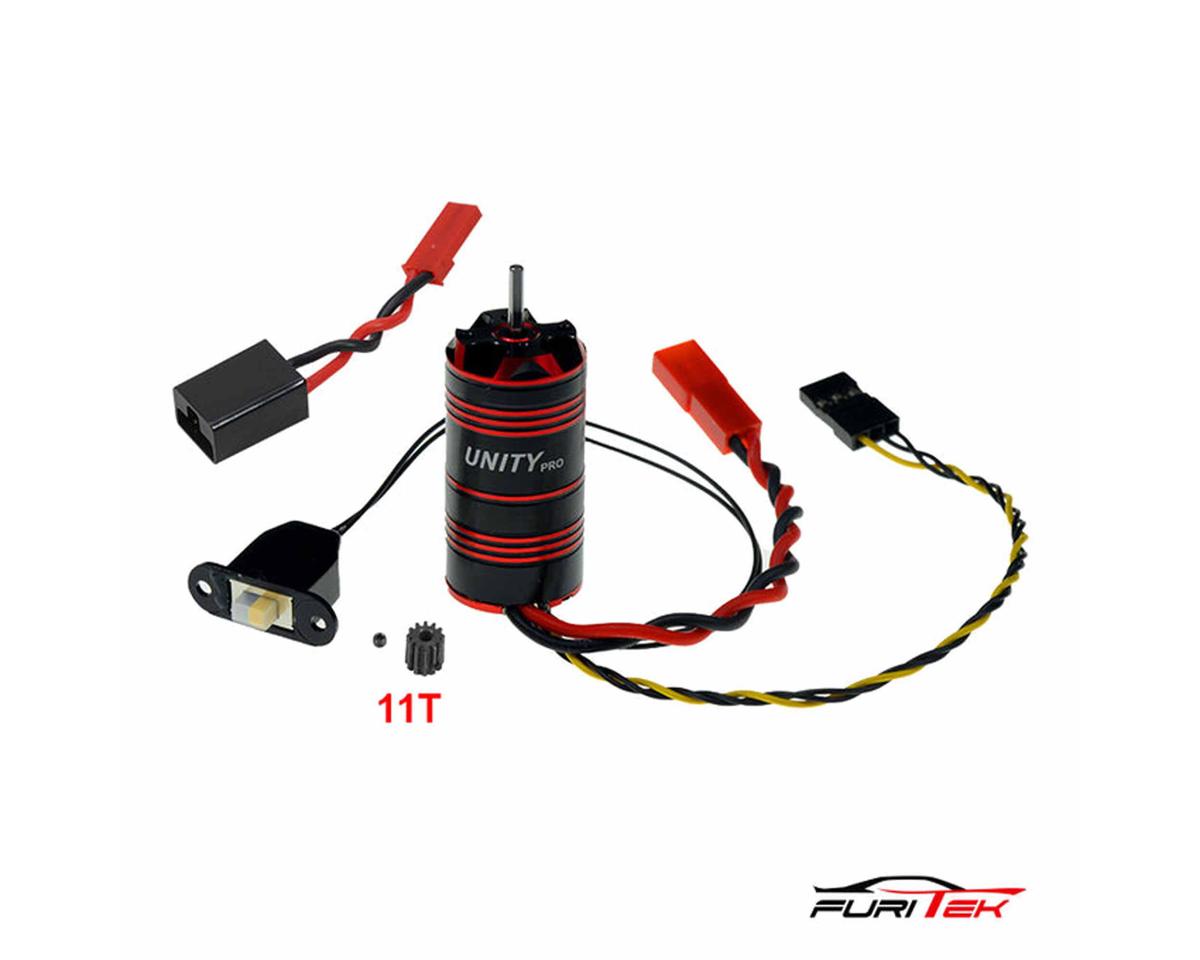

• (1) Unity PRO CRAWLCORE Waterproof 2-in-1 Brushless ESC & Motor Combo

Installation Note

For Traxxas TRX-4M platforms, the included custom steel driveshaft must be used with the motor and transmission setup, as other shafts may not align correctly.
