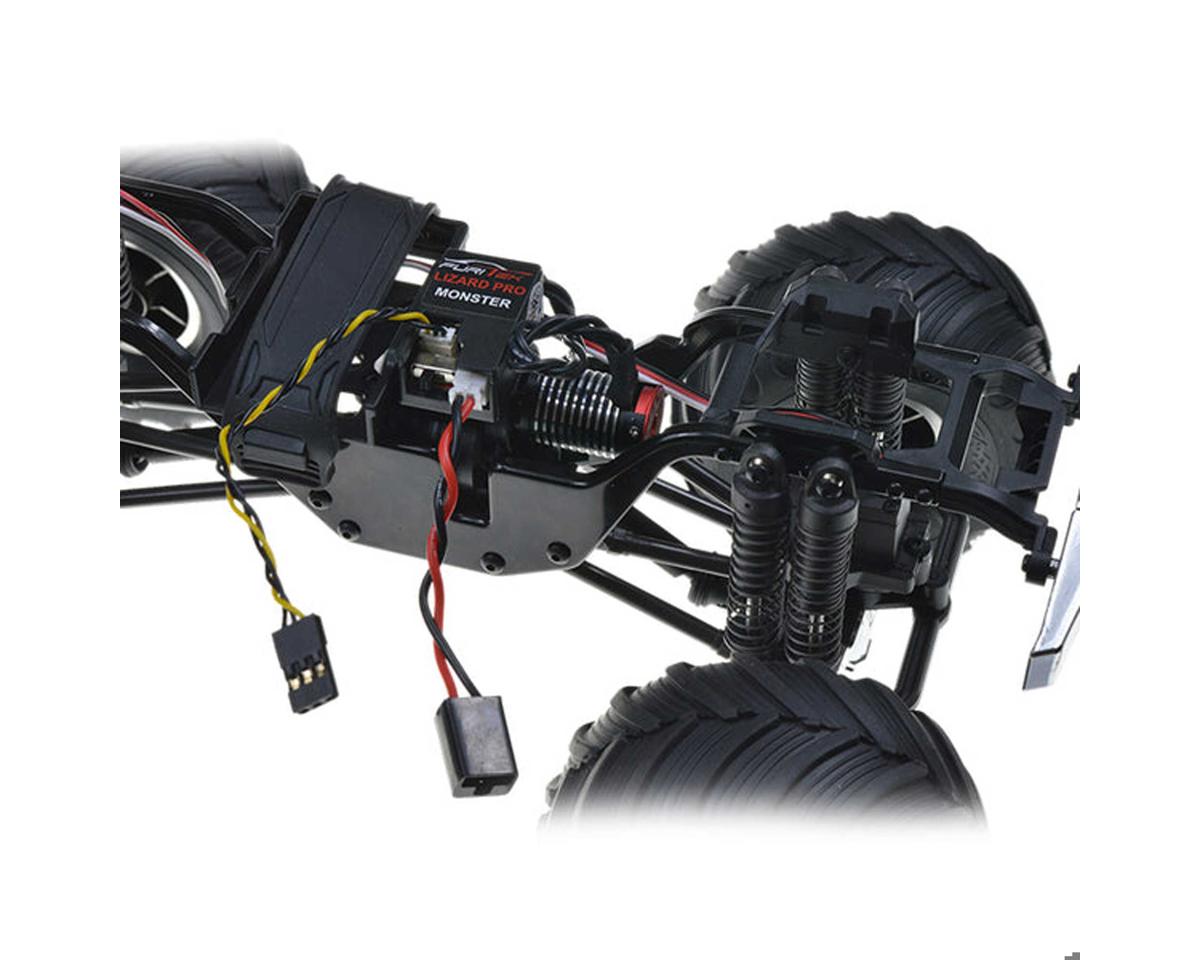

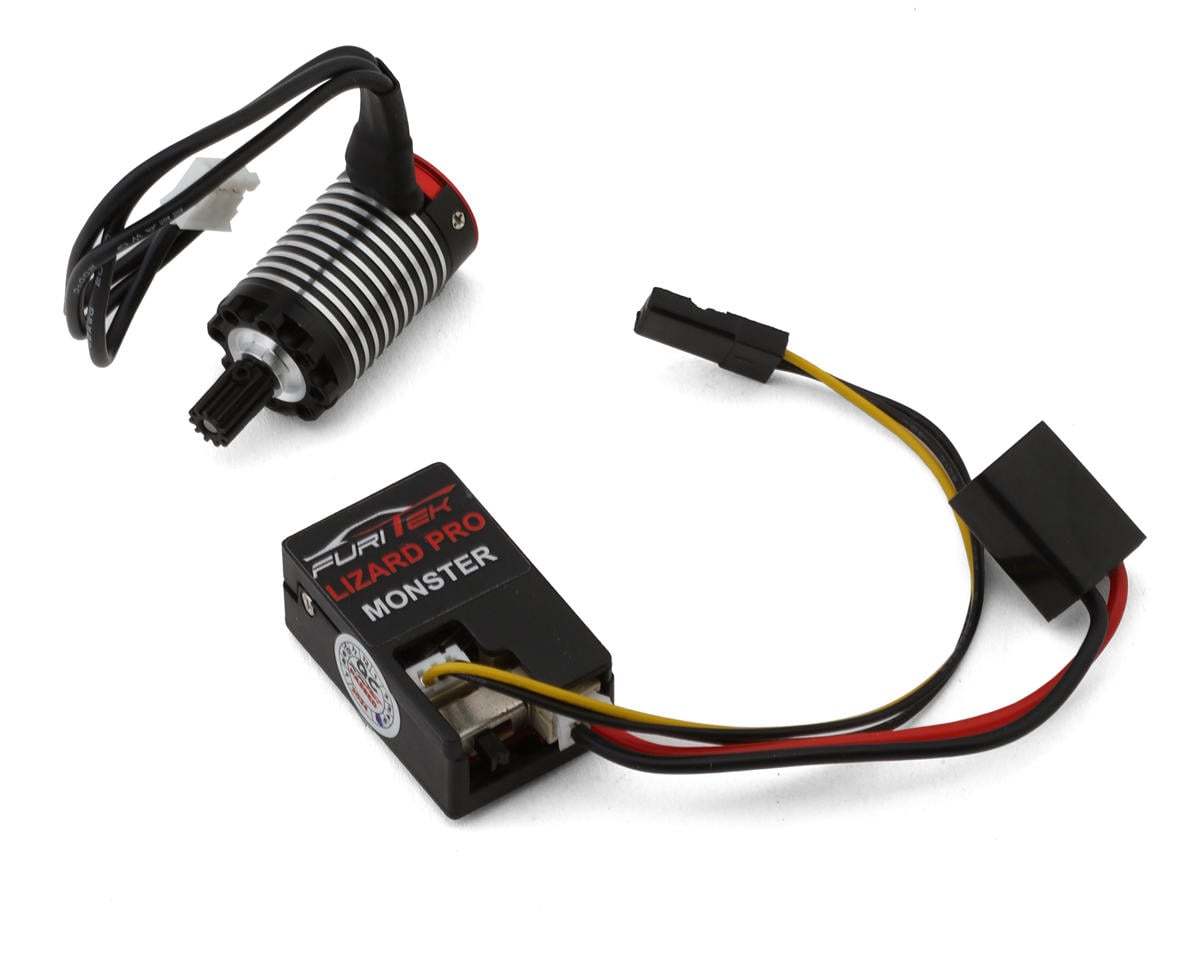

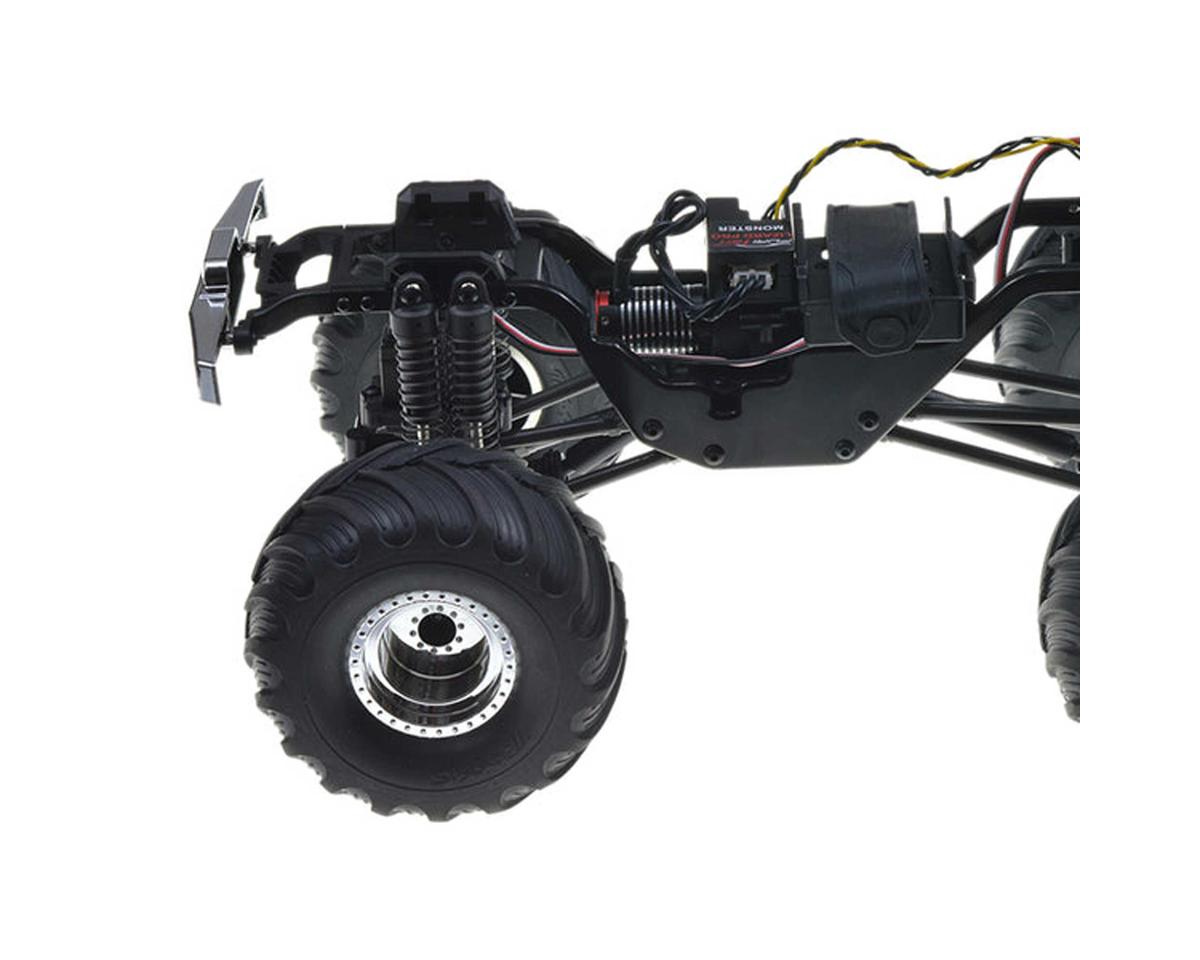

Furitek TRX-4MT Monster Brushless Power System

The Furitek TRX-4MT Monster Brushless Power System combines a Lizard Pro 30A brushless ESC with a 7500kV brushless motor for micro crawler applications. The ESC supports sensorless brushless DC and brushed DC motors, with brushless operation set as the default.

Lizard Pro ESC Features

• FOC (Field-oriented control) technology
• Water-proof CNC-machined aluminum case
• Built-in wireless
• Built-in HV switchable BEC
• Built-in switch power
• Programming through an app on Android and IOS
• Lifetime free firmware updates
• Realtime telemetry with 10Hz update rate
• Compatible with all transmitter and receiver types

Motor Features

• 2-pole strong magnetic rotor hi-torque motor design
• High purity, higher temperature copper windings
• 0.2mm stator lamination
• High RPM ABEC5 bearings
• Precision balanced rotor with maximum 60,000 RPM
• CNC machined 6061 T6 aluminum heat sink vein can design
• Specially designed end cap with side locking screws

Specifications

• ESC input voltage: 2S-3S LiPo
• Waterproof: Yes
• BEC: 5.5V-6.5V Switchable
• Continuous current: 30A
• Peak current: 50A
• ESC dimensions (LxW): 1.1x0.59" (28x15.5mm)
• Motor type: Inrunner
• Motor KV: 7500kV
• Motor pole: 2-Pole
• Motor LiPo: 2-3S
• Motor power: 80W
• Resistance: 0.7 Ohm
• No load current(@10V): .07A
• Motor size (Diameter x Length): 15x25mm
• Application: Micro Crawler

Includes

• (1) Lizard Pro 30A Brushless ESC
• (1) 7500kV Brushless Motor
