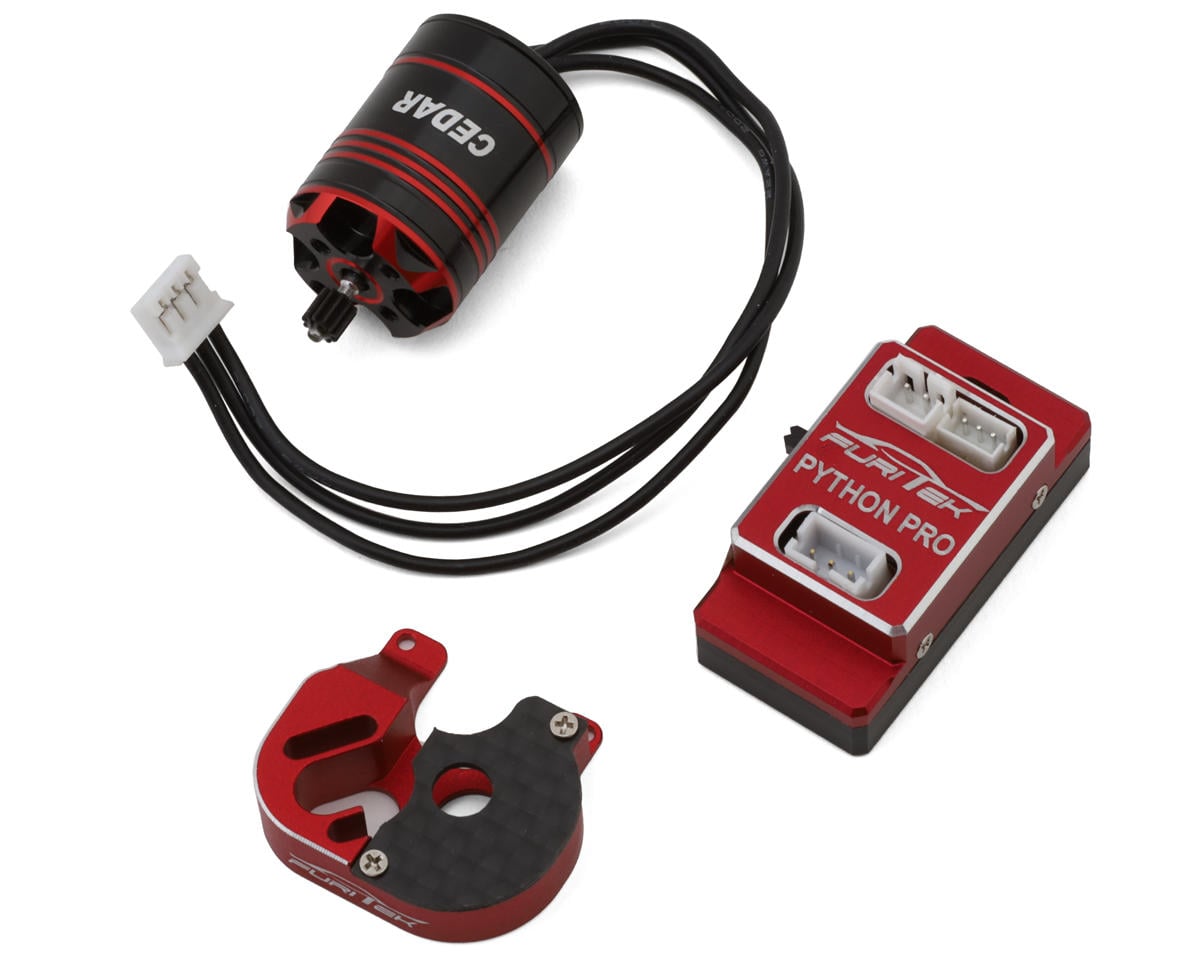

Furitek Torpedo Brushless ESC & Motor Combo (SCX24)

The Furitek Torpedo Brushless ESC & Motor Combo pairs a Python Pro 40A micro waterproof ESC with a Cedar 3456kV inrunner brushless motor for Axial SCX24 vehicles. The system features FOC technology, app-based programming, switchable BEC output, built-in wireless connectivity, and real-time telemetry up to 10Hz.

Python Pro ESC Features

• Supports sensorless brushless DC and brushed DC motors; configurable via the app, with brushless operation as the default
• FOC (Field-oriented control) technology
• Water-proof CNC-machined aluminum case
• Built-in wireless
• Built-in HV switchable BEC
• Built-in switch power
• Programming via app on Android and IOS
• Lifetime free firmware updates
• Compact and lightweight design
• Real-time telemetry up to 10Hz

Cedar Motor Features

• 12-pole inrunner brushless motor
• Water and dustproof design
• Compact size for installation in tight spaces
• Red and black anodized aluminum case
• High torque and super slow-speed operation
• CNC machined 6061 T6 billet aluminum heatsink
• 0.2mm stator laminations
• High RPM ABEC5 bearings
• Precision balanced rotor

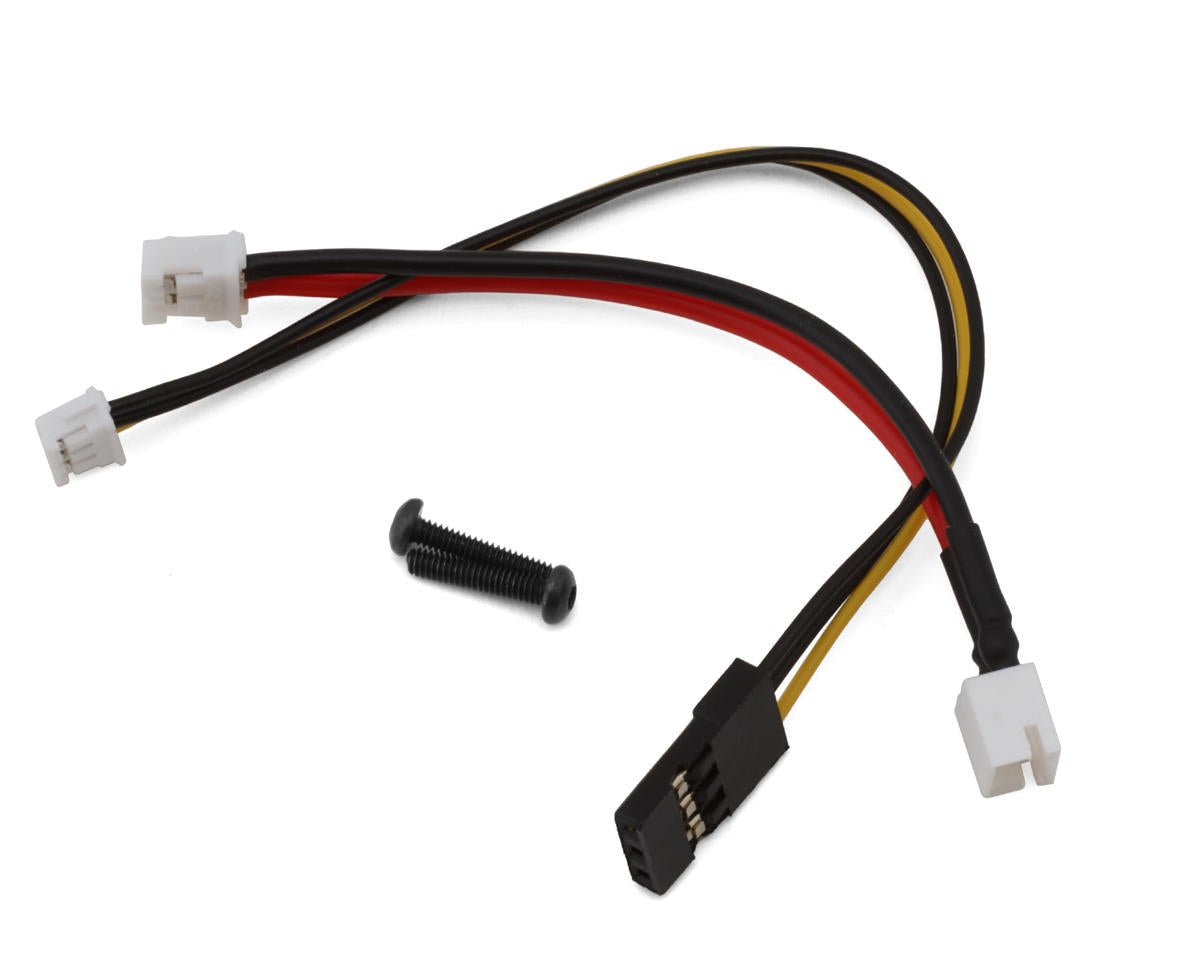

• All hardware included

Specifications

• ESC input voltage: 2S-4S lipo
• BEC: 5.5V-8.4V Switchable
• Constant current: 40A
• Burst current: 70A
• ESC dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
• Current protection: Yes
• Motor KV: 3456kV
• Motor poles: 12
• LiPo: 2S-3S
• Resistance: 0.17Ohm
• No load current: 07A @10V
• Motor size: 18x25mm diameter (0.7x1")
• Weight: 20g (0.7oz)
• Application: 1/24 Micro Crawlers

Includes

• (1) Python Pro 40A (Brushless/Brushed) Micro Waterproof ESC
• (1) Cedar 3456kV Inrunner Brushless Motor
