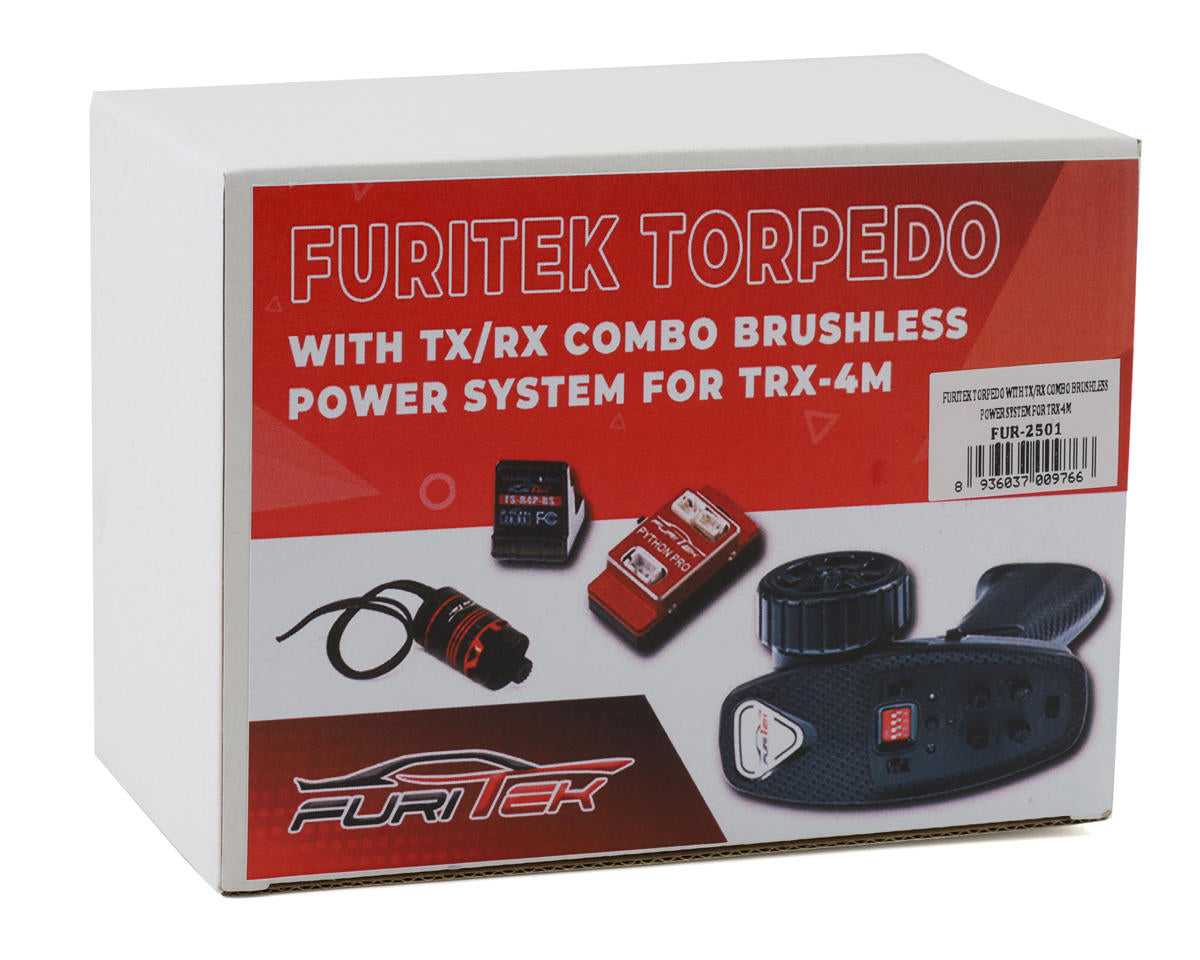

Furitek Torpedo 118 Brushless Combo for Traxxas TRX-4M w/Python Pro 40A ESC

The Furitek Torpedo 118 Brushless Combo pairs a Python Pro 40A ESC with a Cedar 3456kV brushless motor and Furitek TX/RX system for Traxxas TRX-4M micro crawlers.

Python Pro ESC Features

• Supports sensorless brushless DC and brushed DC motors; brushless is the default configuration
• FOC (Field-oriented control) technology
• Waterproof CNC-machined aluminum case
• Built-in wireless programming capability
• Built-in HV switchable BEC
• Programming through the app on Android and iOS
• Lifetime free firmware updates
• Real-time telemetry up to 10Hz
• Compact and lightweight design

Cedar Motor Features

• 12-pole inrunner design
• Element-resistant black and red aluminum case
• Quiet and compact design
• High-temperature copper windings
• High-strength steel pinion gear

Specifications

• ESC input voltage: 2S-4S LiPo
• ESC BEC: 5.5V-8.4V Switchable
• ESC current: 40A continuous, 70A peak
• ESC dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
• ESC weight: 0.2oz (5.6g)
• Motor type: Inrunner
• Motor KV: 3456kV
• Motor pole: 12-Pole
• Motor LiPo: 2-3S
• Motor power: 120W
• Motor resistance: 0.170 Ohm
• Motor no-load current (@10V): .07A
• Motor size (diameter x length): 18x25mm
• Motor weight: 0.7oz (20g)
• Application: Micro Crawler

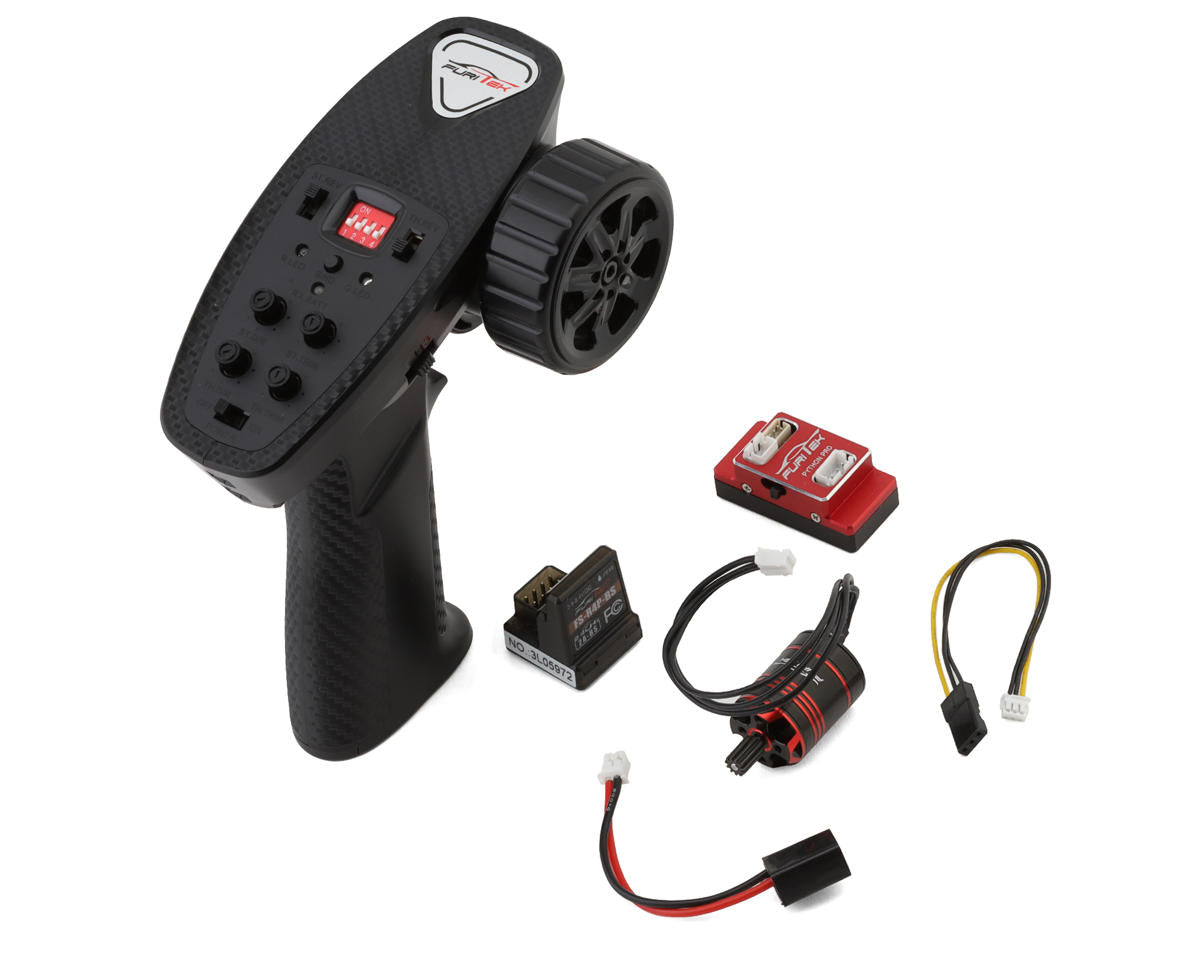

Includes

• (1) Python Pro 40A Brushless ESC
• (1) Cedar 3456kV Brushless Motor
• (1) Furitek TX/RX System
