Furitek Stinger Brushless Motor & ESC Combo Power System (Axial AX24)

The Furitek Stinger Brushless Motor and ESC Combo is a power system designed for the Axial AX24. It combines the Micro Komodo 1212 3450KV brushless motor with the Lizard Pro 30A brushed/brushless ESC, a built-in wireless module, and CNC aluminum mounting hardware.

The system is compatible with the stock AX24 radio and receiver and is a drop-in replacement for the stock brushed system and skid plate. FOC technology provides smooth operation without cogging, while the Furitek FURICAR mobile phone app and built-in wireless module allow parameter adjustment and tuning. The system is not compatible with the HRZ00015 board.

Features

• Smaller and lighter brushless motor for a low C.G. setup
• 30A/50A brushless ESC with FOC technology
• Built-in wireless module for wireless connectivity
• Precision CNC aluminum motor mount
• Precision CNC brass pinion
• High torque for low-speed crawling
• Super smooth operation without cogging at low and high speeds
• Lifetime free firmware upgrades
• Drop-in replacement for the stock AX24 brushed system and skid plate
• Compatible with the stock radio and receiver

Specifications

• ESC: Lizard Pro 30A Brushed/Brushless
• Input Voltage: 2-3S LiPo
• Constant Current: 30A
• Burst Current: 50A
• BEC: 5V/ 6.5V 2.5A
• Telemetry: Yes (10Hz)
• ESC Dimensions: 28x15.5mm
• ESC Weight: 3.7g
• Motor: Micro Komodo 1212 3450KV Brushless Motor
• Kv: 3450
• Output Power: 120W
• No-Load Current: @10V – 0.7A
• Resistance: 0.16 Ohms
• Maximum Current: 10A
• Slot/Pole: 12
• Dimensions: 115.5x20.6mm
• Shaft: 1.5x6mm
• Weight: 17.5g

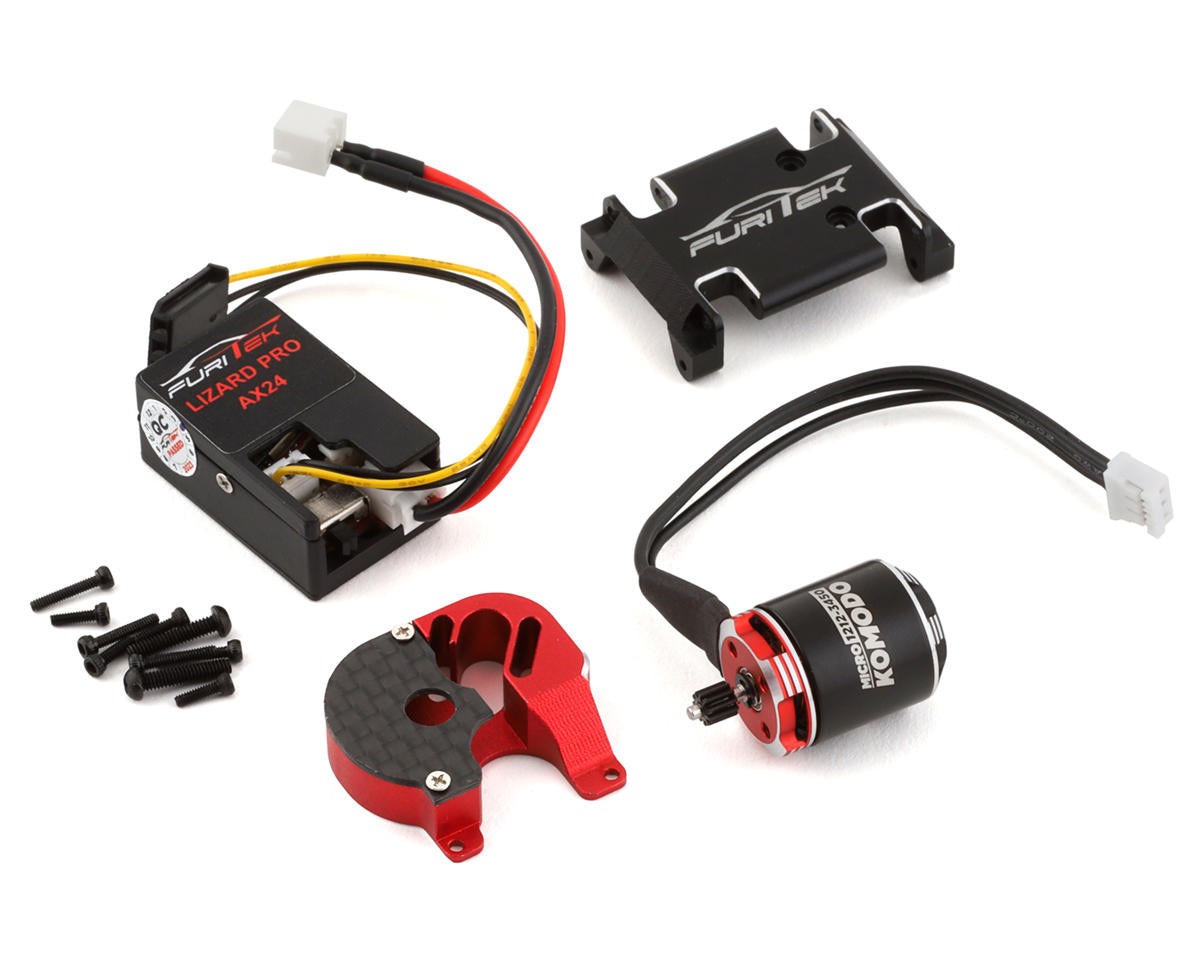

Includes

• (1) Lizard Pro 30A Brushed/Brushless ESC
• (1) Micro Komodo 1212 3450KV Brushless Motor
• (1) 11T 0.3M CNC Brass Pinion
• (1) CNC Aluminum Motor Mount
• (1) CNC Aluminum Skid
