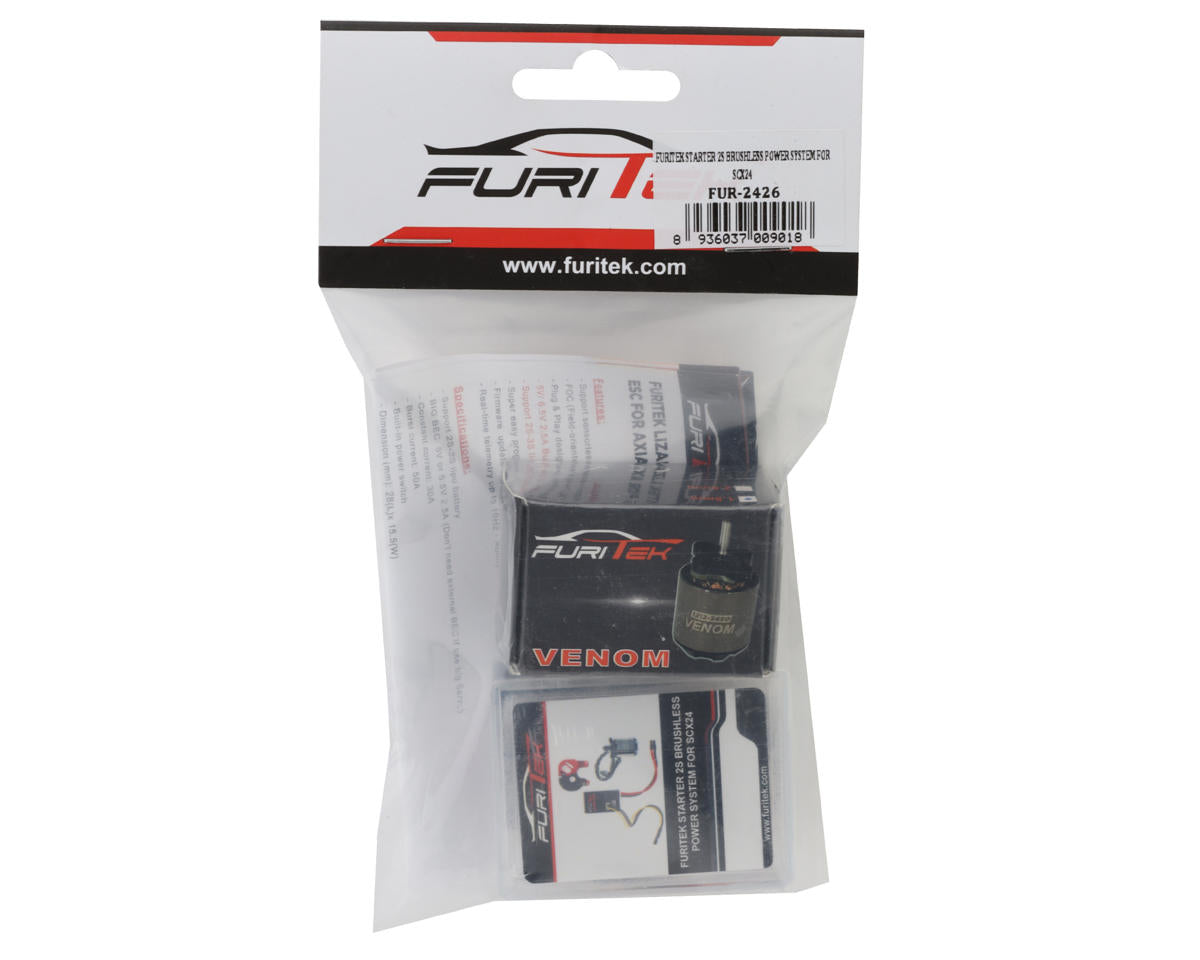

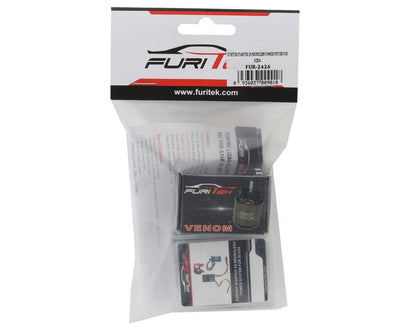

Furitek SCX24 Starter 118 2S Brushless ESC & Venom Motor Combo

Upgrade an SCX24 micro crawler with the Furitek Lizard Pro 30A brushless ESC and Venom 1212 3450kV brushless motor combo. The ESC supports sensorless brushless DC and brushed DC motors, uses FOC technology, and features built-in wireless programming, switchable BEC, and real-time telemetry up to 10Hz.

The Venom motor uses a 12-pole outrunner design with 0.2mm stator laminations, high-temperature copper windings, and a high-strength steel pinion gear. The combo is compatible with a stock battery and supports 2S-3S LiPo input through the ESC.

Note: This combo is not compatible with the stock TX/RX because it does not provide channel 2 for an external ESC. A separate RX unit is required.

Features

• Lizard Pro ESC with sensorless brushless and brushed motor support
• FOC (Field-oriented control) technology
• Built-in wireless programming via app on Android and IOS
• Built-in switchable BEC and switch power
• Lifetime free firmware updates
• Compact and lightweight design
• Real-time telemetry up to 10Hz
• Venom 12-pole outrunner motor
• Precision balanced rotor
• High-temperature copper windings
• High-strength steel pinion gear

Specifications

• ESC Input Voltage: 2S-3S LiPo
• Waterproof: No
• BEC: 5V-6.5V Switchable
• Continuous Current: 30A
• Peak Current: 50A
• ESC Dimensions (LxW): 28x15.5mm
• Motor Type: Outrunner
• Motor KV: 3450kV
• Motor Pole: 12-Pole
• Motor LiPo: 2S
• Motor Power: 120W
• Motor Resistance: 0.16 Ohm
• No Load Current(@10V): .07A
• Motor Size (Diameter x Length): 20x15.5mm
• Motor Weight: 17.5g
• Application: Micro Crawler

Includes

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
• (1) Aluminum Motor Plate/Transmission Case
• (1) Built-in Wireless Module
• (1) 11T CNC Steel Pinion
