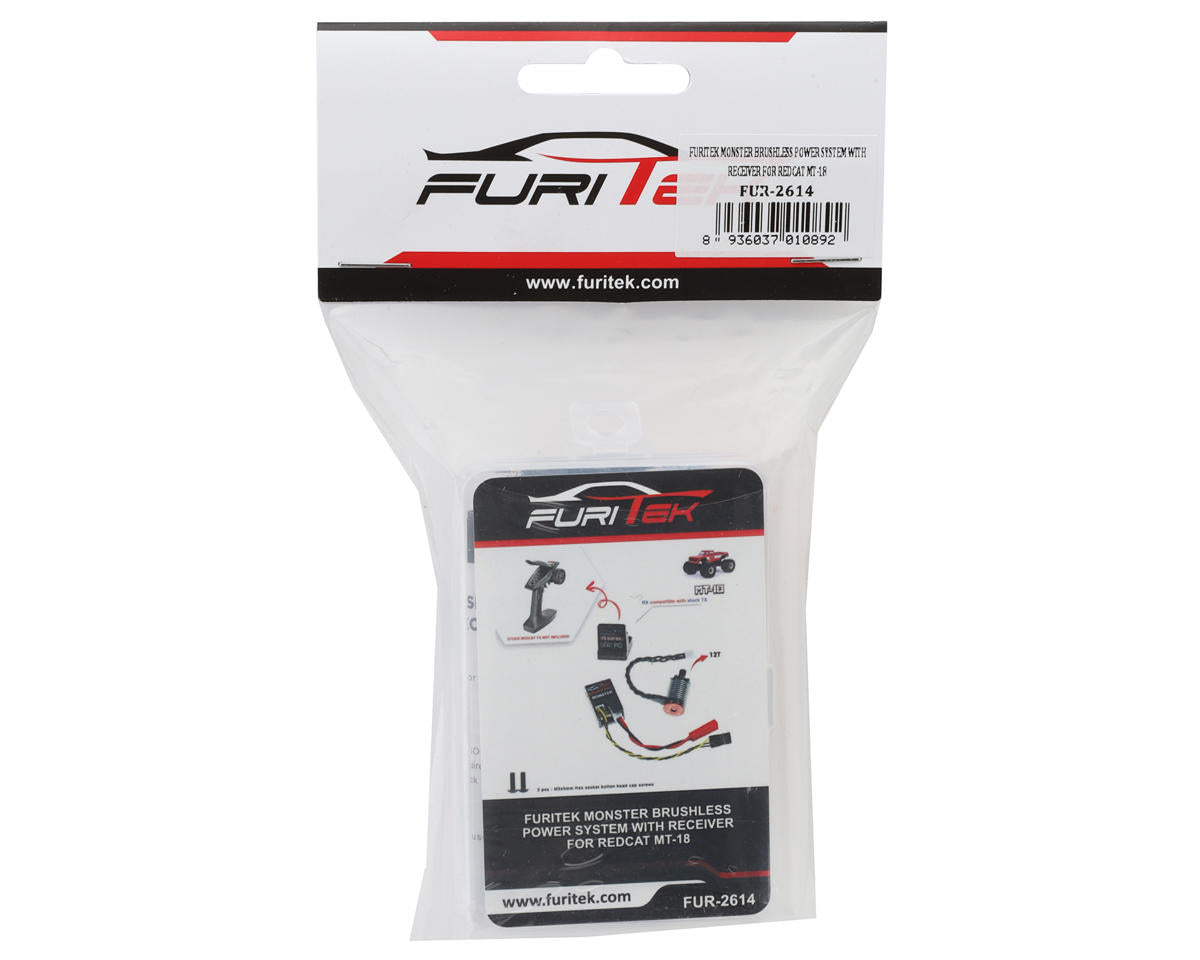

Furitek Redcat MT-18 Monster Brushless Power System ESC & Motor Combo

The Furitek Redcat MT-18 Monster brushless power system combines a Lizard Pro ESC with a Greyhound 1410 7500kV motor in a plug-and-play setup designed for the Redcat MT-18 monster truck. Built-in wireless programming supports parameter adjustments through the Furitek FuriCar app on Android and iOS devices.

ESC Features

• Supports sensorless brushless DC and brushed DC motors; configurable through the app, with brushless operation as the default
• FOC (Field-oriented control) technology
• Plug & Play design for the Redcat MT-18 monster truck
• 5V/ 6.5V 2.5A built-in BEC, configurable through the app
• Supports 2S-3S lipo battery
• Mini size and lightweight design
• App programming on Android and IOS
• Real-time telemetry up to 10Hz
• Built-in power switch

Motor Features

• 2 Pole strong magnetic rotor hi-torque motor design
• High purity and higher temperature copper windings
• Super thin 0.2mm stator lamination
• High RPM ABEC5 bearings
• Precision balanced rotor with maximum 60,000 RPM
• CNC machined 6061 T6 aluminum heat sink vein can design
• Precision engineered for maximum energy conversion
• End cap with side locking screws to secure the end cap and PCB

Specifications

• Scale: 1/24
• Type: Brushed/Brushless Switchable
• Waterproof: No
• Input Voltage: 2-3S LiPo
• BEC Voltage: 5-6.5V
• Battery Connector: 2-Pin JST
• Continuous: 30A
• Burst: 50A
• ESC Size (LxW): 28x15.5mm
• ESC Weight: 0.59oz (17g)
• Programmable: Built-in wireless
• KV: 7500kV
• Pole: 2P
• Resistance: 0.7 Ohms
• No Load Current(@7.4V): 0.3A
• Motor Size (Diameter x Length): 0.61x0.98in (15.5x25mm)
• Shaft (Diameter x Length): -
• Application: 1/24 & 1/18 Monster Trucks

Includes

• (1) Lizard Pro 30A/50A Brushed/Brushless ESC
• (1) Greyhound 1410 7500KV brushless motor
• (1) FS-R4P-RS Receiver, compatible with stock Redcat MT-18 radio
• (1) CNC Steel Pinion
