Furitek Redcat Ascent-32 NanoModo 2026 Brushless Power System Combo

Upgrade the Redcat Ascent-32 with the Furitek NanoModo 2026 Brushless Power System Combo. This 3-in-1 system combines the Nano Python ESC, Nano Komodo 3800kV brushless motor, and servo adapter for a compact, plug-and-play conversion.

Features

• Complete brushless system for the Redcat Ascent-32
• Wireless tuning and programming through the Furicar App
• Brushed/brushless motor operation switchable via the app
• Integrated servo controller supports the stock servo
• FOC technology for smooth throttle response
• Compact ESC and motor fit tight spaces
• High-torque 12-pole 3800KV brushless motor
• Built-in 5A BEC
• Plug-and-play installation with no modifications needed

Specifications

• Suggested application: Optimized for the Ascent-32
• ESC input voltage: 2-3S (7.4-11.1V) LiPo
• ESC continuous current: 20A
• ESC burst current: 50A
• BEC voltage: 5.5V/7.4V
• BEC continuous current: 5A
• Battery connector: Ph2
• Motor type: Brushless - Sensored
• Motor voltage: 2-3S (7.4-11.1V) LiPo
• kV rating: 3800
• Shaft length: 0.236in (6mm)
• Shaft diameter: 0.059in (1.5mm)

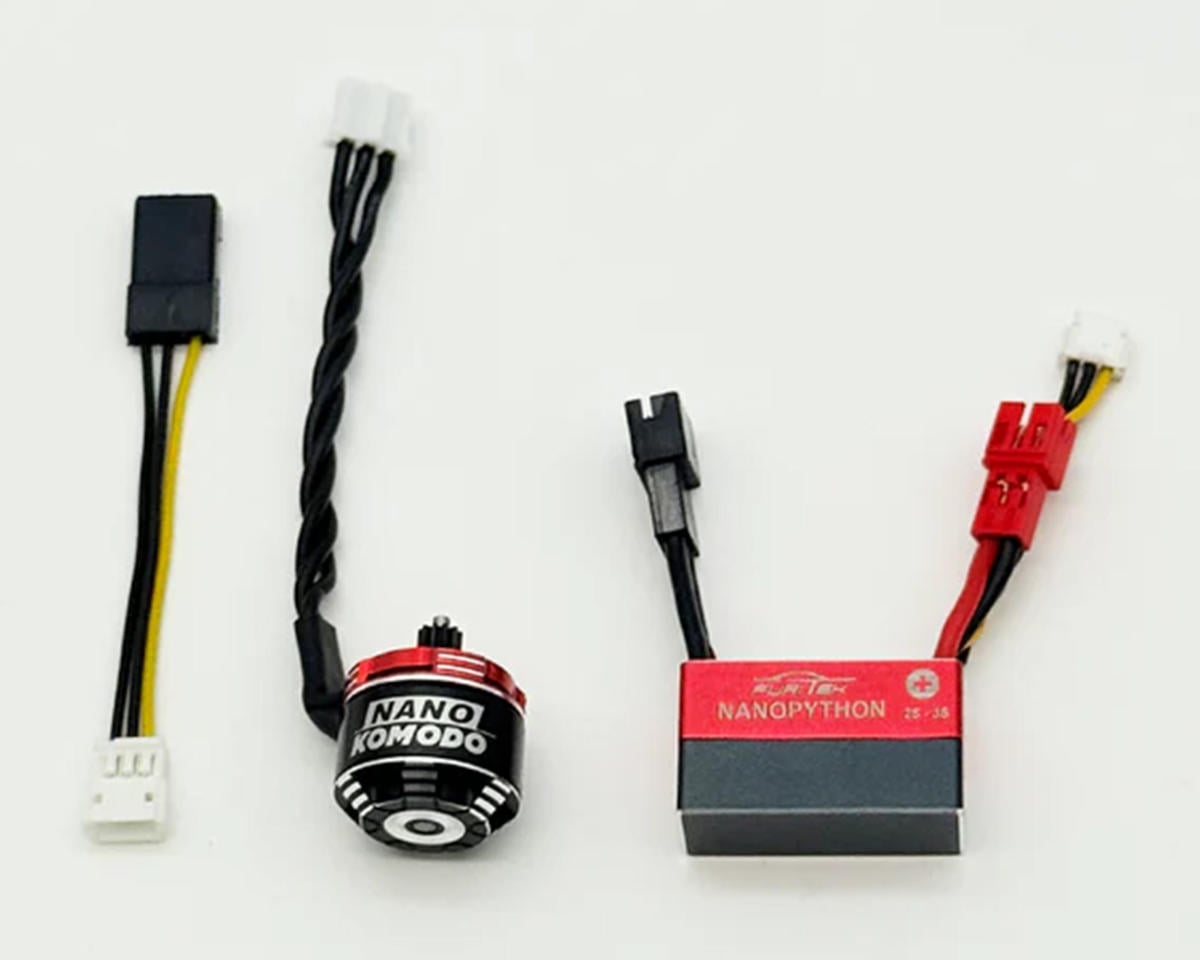

Includes

• (1) Nano Python Brushless ESC
• (1) Nano Komodo Brushless Motor
• (1) Servo Adapter

Note: The stock servo has no control circuit and requires an integrated servo controller circuit to be compatible with the NanoModo system.
