Furitek Redcat Ascent-18 Torpedo Brushless Combo w/Python Pro 40A ESC

The Furitek Redcat Ascent-18 Torpedo Brushless Combo combines a Python Pro 40A ESC with a Cedar 3456kV 12-pole inrunner motor for micro crawler applications. The ESC supports sensorless brushless and brushed DC motors, while FOC technology provides motor control with app-based programming on Android and iOS devices.

Python Pro ESC Features

• Supports sensorless brushless DC and brushed DC motors; default setting is brushless
• FOC (Field-oriented control) technology
• Water-proof CNC-machined aluminum case
• Built-in wireless module
• Built-in HV switchable BEC
• Built-in switch power
• App programming on Android and iOS
• Lifetime free firmware updates
• Real-time telemetry up to 10Hz
• Compact and lightweight

Cedar Motor Features

• 12-pole inrunner design
• Element resistant
• Black and red aluminum case
• Quiet and compact design
• High-temperature copper windings
• Redcat Ascent-18 compatible pinion gear

Specifications

• ESC input voltage: 2S-4S LiPo
• Waterproof: Yes
• BEC: 5.5V-8.4V Switchable
• Continuous current: 40A
• Peak current: 70A
• ESC dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
• Motor type: Inrunner
• Motor KV: 3456kV
• Motor poles: 12-Pole
• Motor LiPo: 2-3S
• Motor power: 120W
• Motor resistance: 0.170 Ohm
• No load current(@10V): .07A
• Motor size (Diameter x Length): 18x25mm
• Motor weight: 0.7oz (20g)
• Application: Micro Crawler

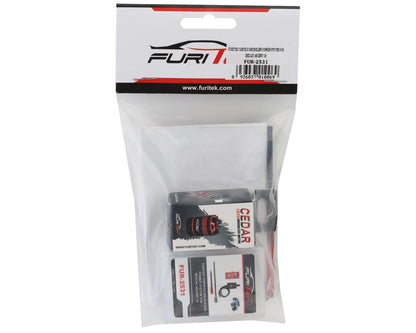

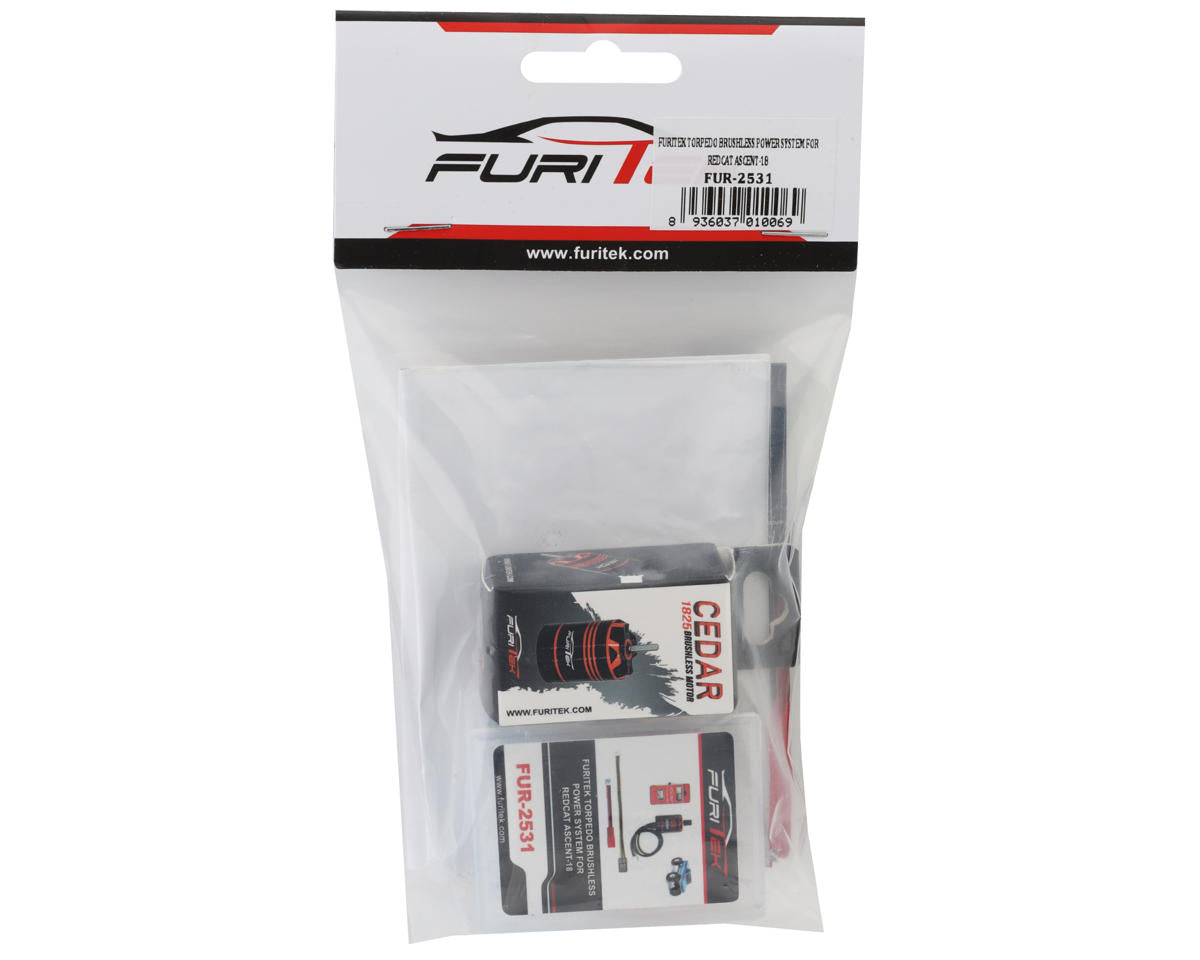

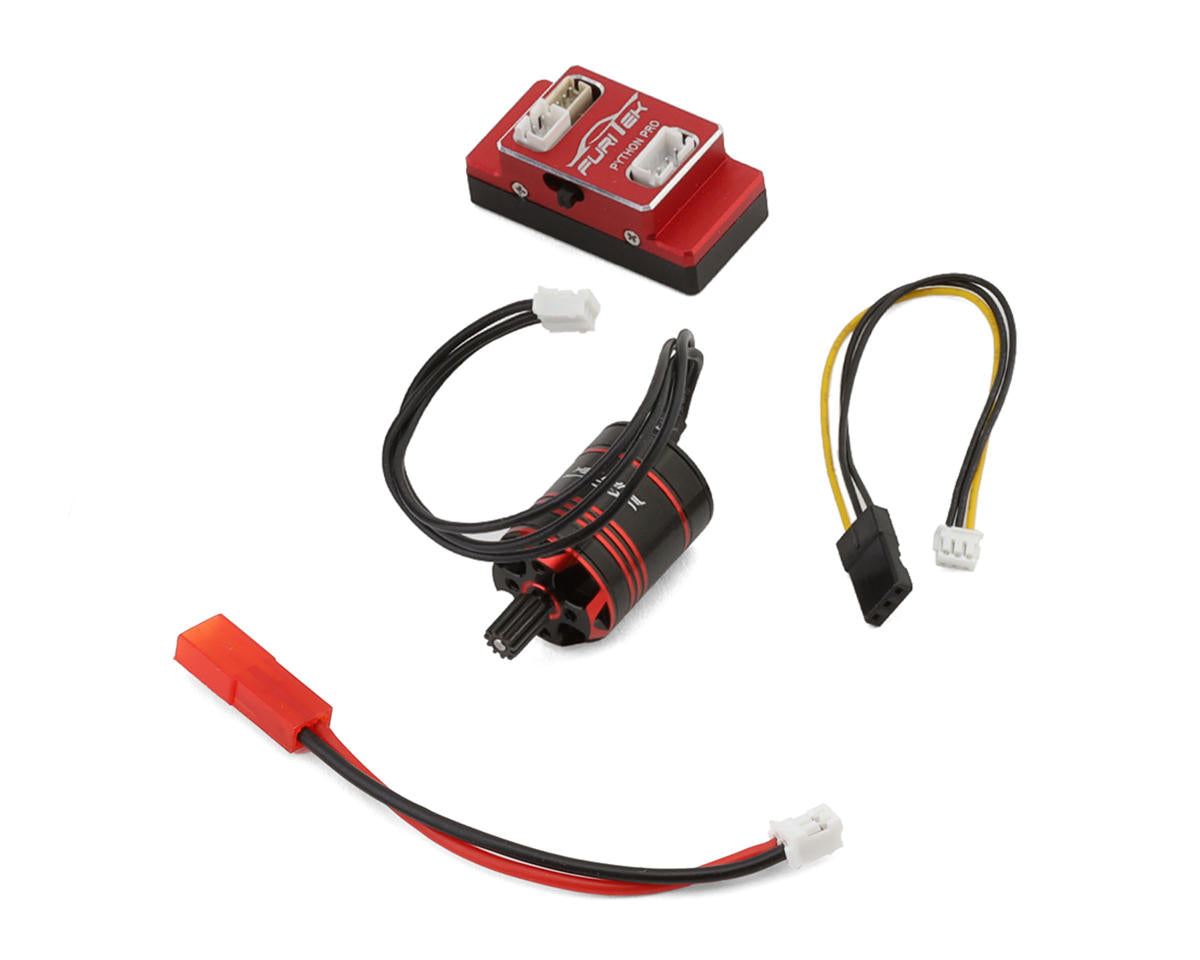

Includes

• (1) Python Pro 40A ESC
• (1) Cedar 3456kV Inrunner Motor
• (1) Battery Connector
• (1) Receiver Connector
