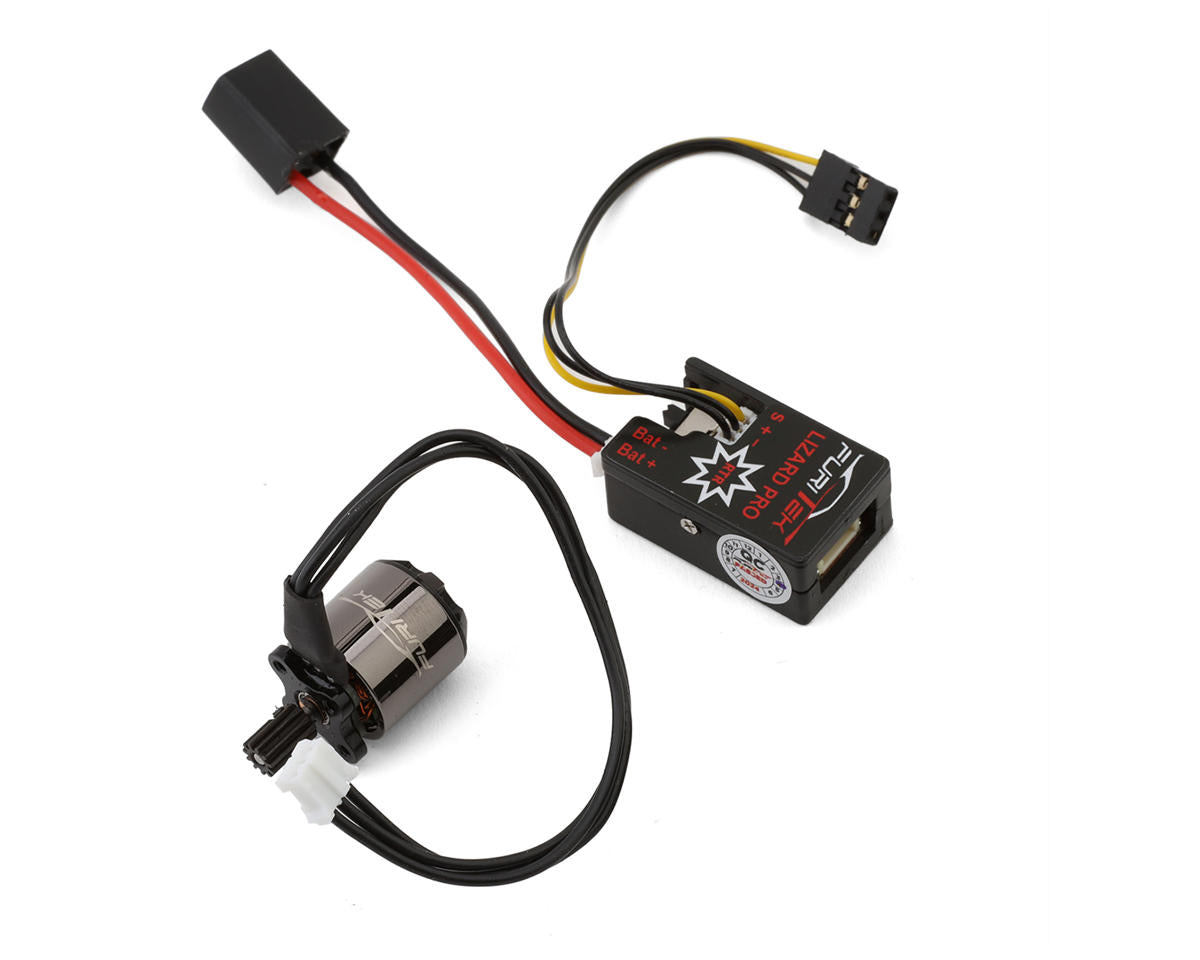

Furitek Redcat Ascent-18 Starter 2S ESC Combo w/Venom Motor (3450kV)

Upgrade a Redcat Ascent-18 micro crawler with the Furitek Lizard Pro 30A ESC and Venom 1212 3450kV brushless motor combo. The ESC supports sensorless brushless and brushed DC motors, while FOC technology provides smooth control across the RPM range.

Lizard Pro ESC Features

• Supports sensorless brushless DC and brushed DC motors; brushless operation is the default and can be configured via the app
• 30A continuous current and 50A peak current
• Supports 2S-3S LiPo input voltage
• 5V-6.5V switchable BEC
• Built-in wireless module, switchable BEC, and switch power
• App programming for Android and IOS
• Lifetime free firmware updates
• Real-time telemetry up to 10Hz
• Compact and lightweight design

Venom Motor Features

• 12-pole Outrunner design
• 3450kV
• Super thin 0.2mm stator laminations
• Precision balanced rotor
• High temperature copper windings
• High strength steel pinion gear
• Quiet and compact design

Specifications

• ESC input voltage: 2S-3S LiPo
• ESC waterproof rating: No
• ESC BEC: 5V-6.5V Switchable
• ESC current: 30A continuous, 50A peak
• ESC dimensions (LxW): 28x15.5mm
• ESC weight: 3.5g
• Motor type: Outrunner
• Motor KV: 3450kV
• Motor poles: 12-Pole
• Motor LiPo: 2S
• Motor power: 120W
• Motor resistance: 0.16 Ohm
• No load current (@10V): .07A
• Motor size (Diameter x Length): 20x15.5mm
• Motor weight: 17.5g
• Application: Micro Crawler

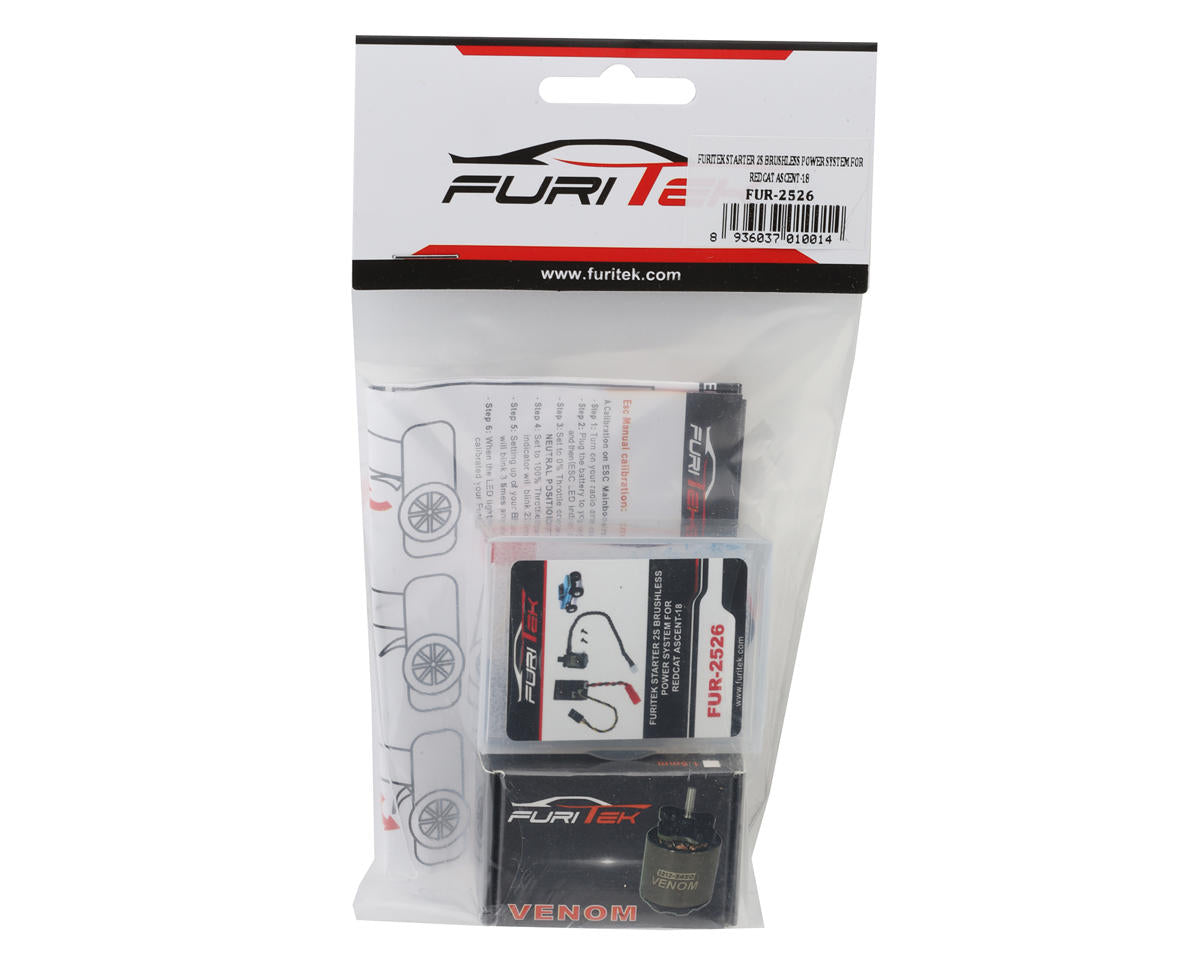

Includes

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
