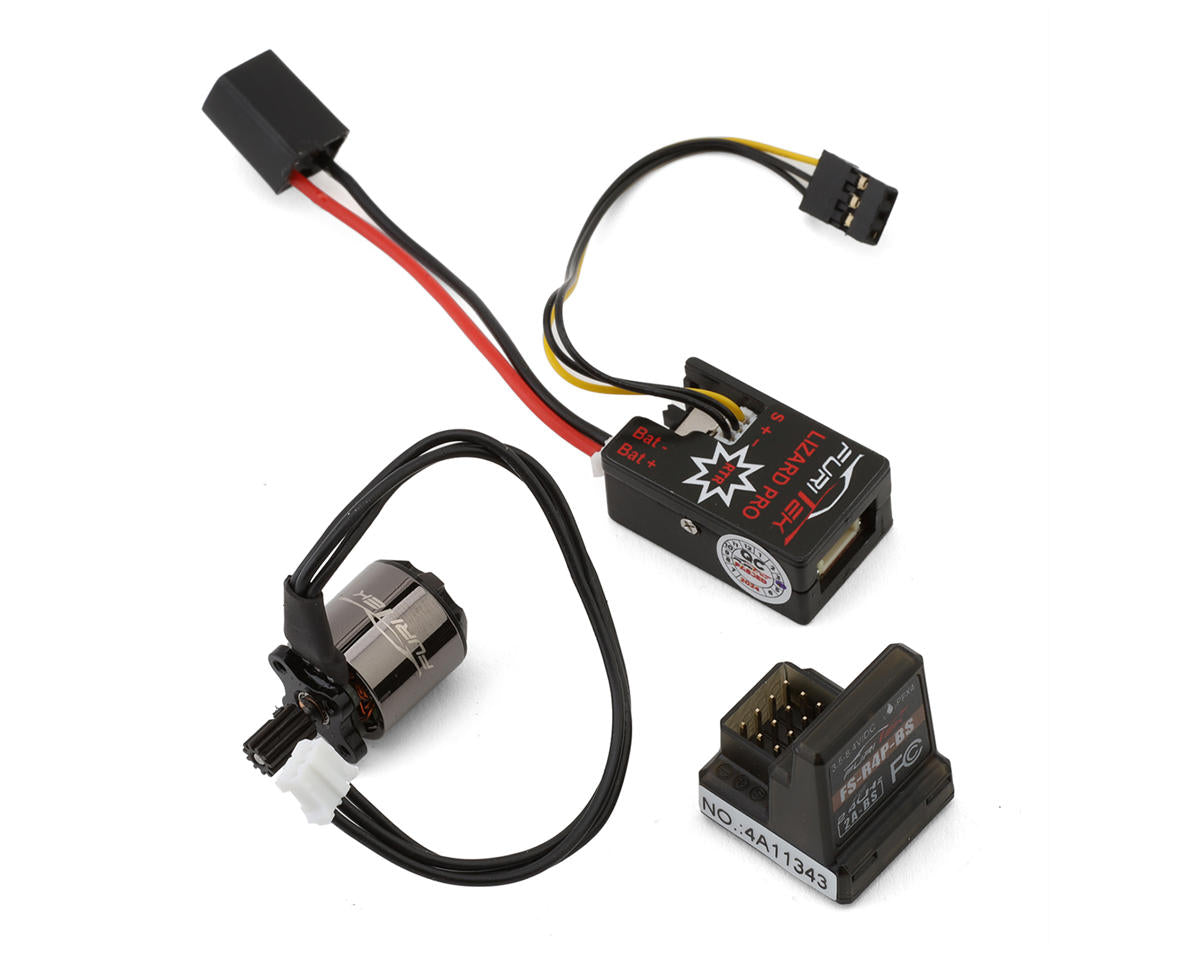

Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo

The Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo pairs a Lizard Pro 30A ESC with a Venom 1212 3450kV 12-Pole brushless motor and FlySky 4-Channel Receiver Connector. Designed as a plug-and-play option for Ascent-18 rock crawlers, it supports sensorless brushless DC and brushed DC motors, with brushless operation selected by default.

Lizard Pro ESC Features

• FOC (Field-oriented control) technology
• 2S-3S LiPo input voltage
• 30A continuous current and 50A peak current
• 5V-6.5V switchable BEC
• Built-in wireless and switch power
• App programming on Android and IOS
• Lifetime free firmware updates
• Real-time telemetry up to 10Hz
• Compatible with stock battery
• Compact and lightweight

Venom Motor Features

• 12-Pole Outrunner design
• 3450kV
• Super thin (0.2mm) stator laminations
• Precision balanced rotor
• High temperature copper windings
• High strength steel pinion gear
• Quiet and compact design

Specifications

• ESC Input Voltage: 2S-3S LiPo
• ESC Waterproof: No
• ESC BEC: 5V-6.5V Switchable
• ESC Current: Continuous: 30A; Peak: 50A
• ESC Dimensions (LxW): 28x15.5mm
• ESC Weight: (3.5g)
• Motor Type: Outrunner
• Motor KV: 3450kV
• Motor Pole: 12-Pole
• Motor LiPo: 2S
• Motor Power: 120W
• Motor Resistance: 0.16 Ohm
• Motor No Load Current(@10V): .07A
• Motor Size (Diameter x Length): 20x15.5mm
• Motor Weight: (17.5g)
• Application: Micro Crawler

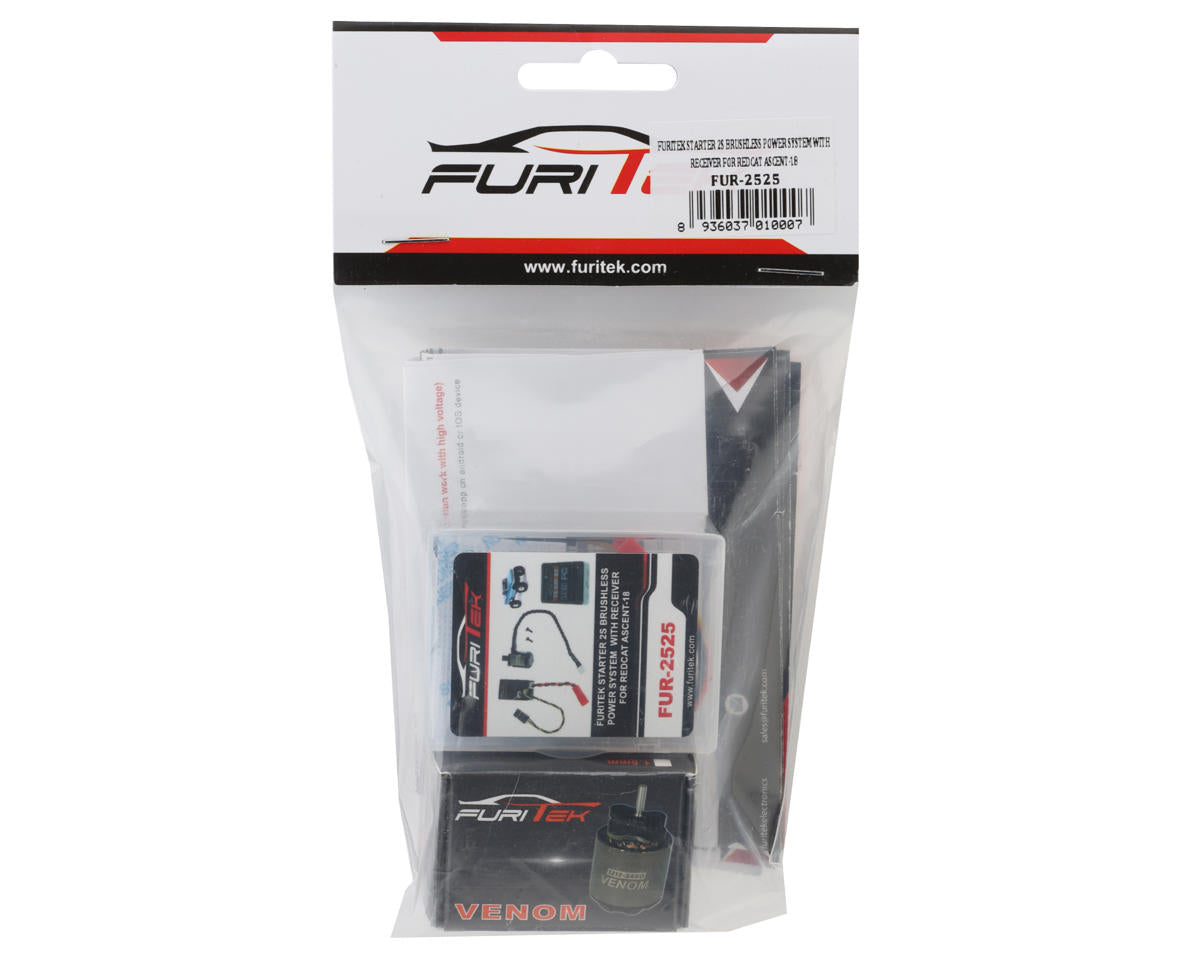

Includes

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
• (1) FlySky 4-Channel Receiver Connector
