Furitek Redcat Ascent-18 Mini Komodo Unity 2-in-1 Micro FOC Brushless System

The Furitek Mini Komodo Unity combines a 2500kV brushless outrunner motor and ESC in one compact system for micro rock crawlers. Optimized for the Redcat Ascent-18 platform, its integrated design reduces wiring complexity while FOC technology provides smooth low-speed throttle response for technical crawling.

The system supports 2-3S LiPo power and includes an adjustable 5.5/7.4V BEC with 5A continuous current. Programming and tuning are handled through the Furicar App, with a 30A continuous current rating and 50A burst current rating.

Features

• Integrated ESC and brushless outrunner motor
• Optimized for the Redcat Ascent-18 platform
• Reduced wiring complexity for cleaner setups
• Compact design enhances chassis airflow
• FOC control for ultra-smooth low-speed throttle response
• High torque output for technical crawling
• Supports high-performance servo configurations
• Compatible with the Furicar mobile tuning app
• Easy installation with included mounting hardware

Specifications

• Suggested Application: Micro Rock Crawlers
• Motor Type: Brushless
• Turn/kV: 2500kV
• Input Voltage: 2-3S LiPo
• Continuous Current: 30A
• Burst Current: 50A
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App
• Adjustable Timing: No
• Watts: 160
• Diameter: 0.91in (23mm)
• Length: 0.84in (21.3mm)
• Weight: 0.88oz (25.1g)

Includes

• (1) Mini Komodo Unity 2-in-1 Micro FOC Brushless System w/12T Steel Pinion

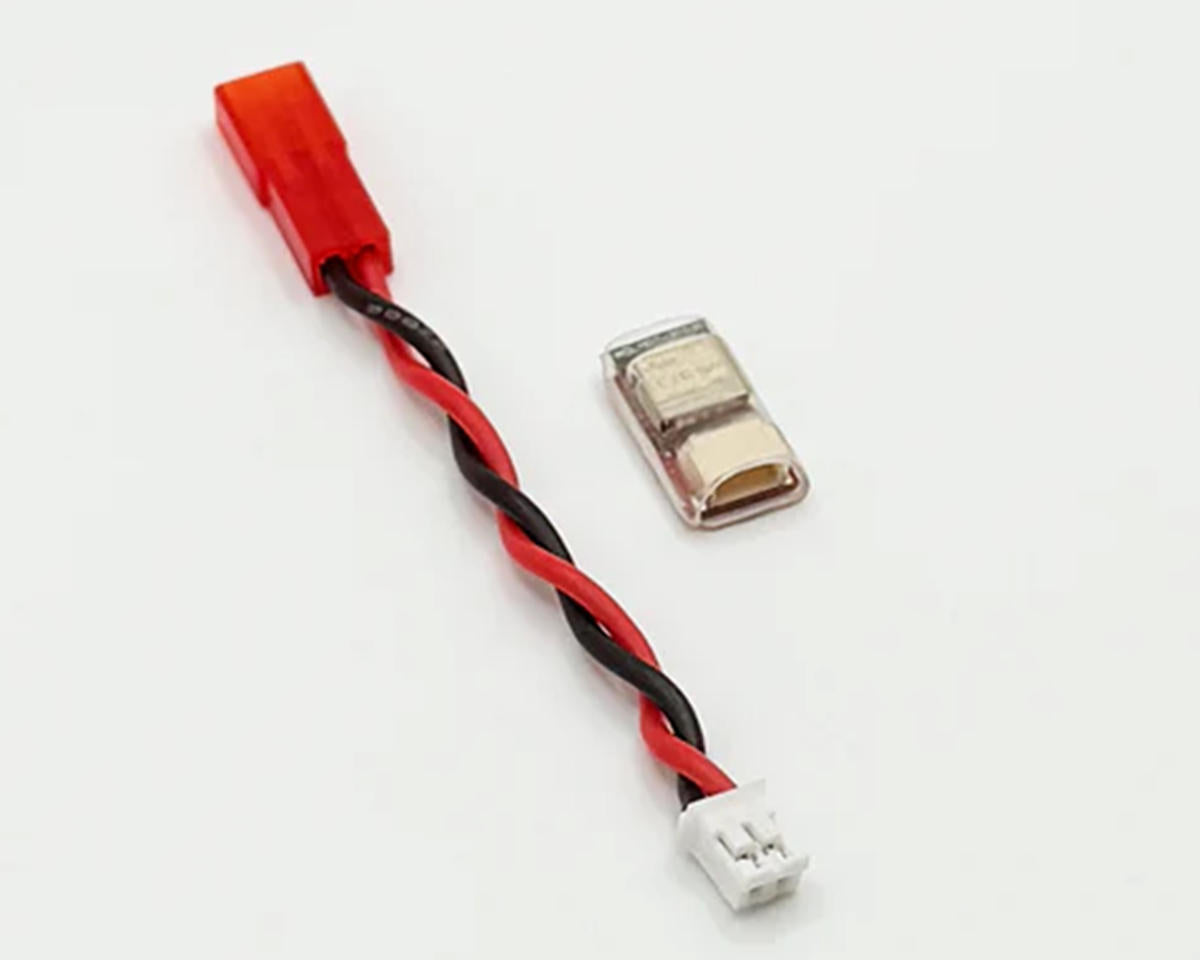

• (1) JST Adapter Cable
• (1) Furitek Wireless Module
• Product Manual
