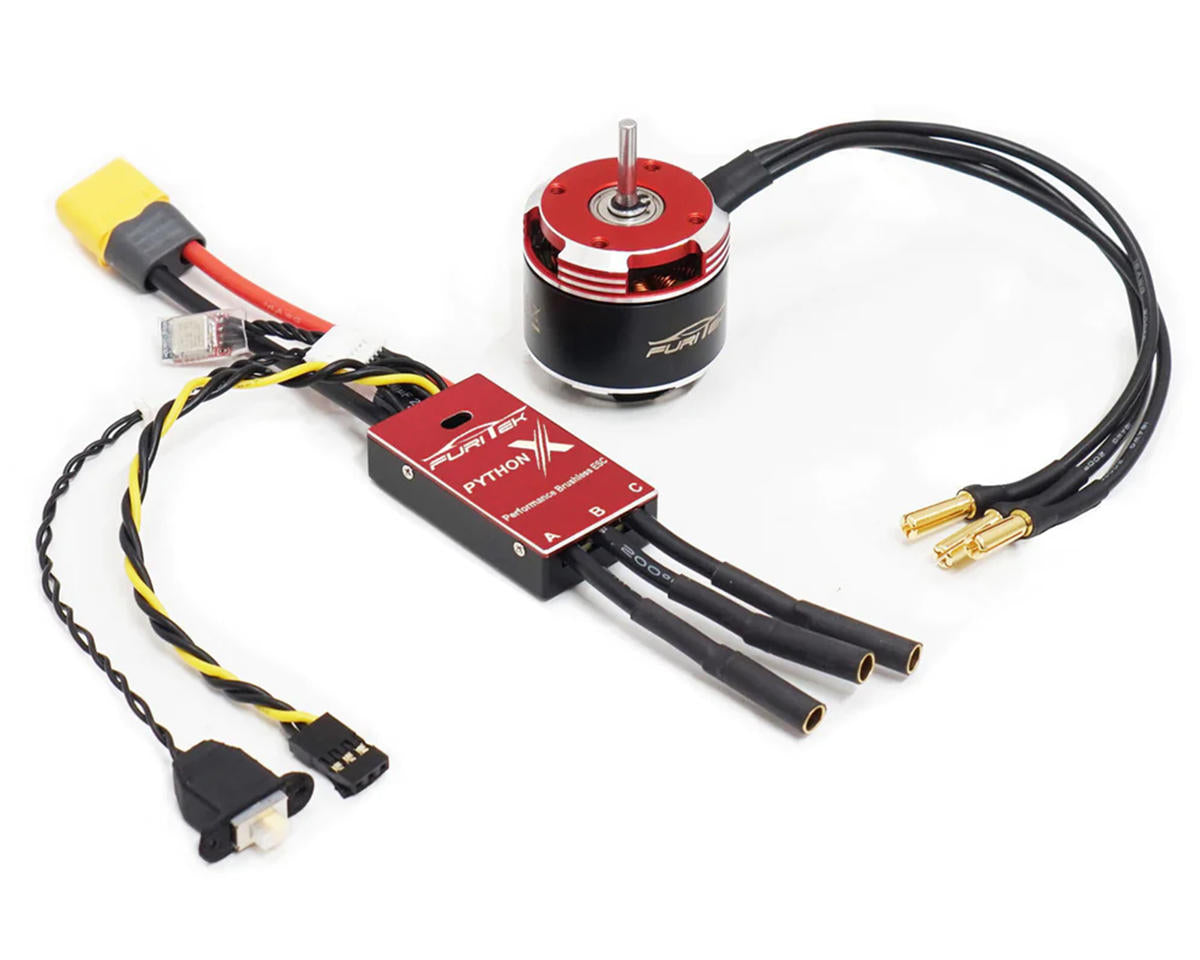

Furitek Python X 80A Brushless ESC & Motor Combo (Komodo Ten)

The Furitek Python X 80A Brushless ESC and Komodo Ten motor combo combines FOC control technology with a 2000KV 1/10 crawler motor. The included wireless module enables on-the-fly adjustment of throttle, braking, and punch settings through the FuriCar app.

Python X ESC Features

• FOC (Field-Oriented control technology) for smooth throttle response and steady movement
• CNC aluminum case
• Water and dust resistant
• High current protection and live telemetry
• Audible alerts for easy diagnosis
• Updated algorithm for smooth startup to FOC stage
• Removable power switch
• Brushed and brushless compatibility

Komodo Ten Motor Features

• 14-pole high-torque motor design
• Precision-balanced rotor
• CNC machined 6061 T6 billet aluminum heatsink built into the motor housing
• Precision engineered for maximum energy conversion
• High-purity, higher-temperature single copper windings
• Heat dissipation designed for efficiency

Specifications

• Application: 1/10 Crawler
• ESC dimensions: 1.7in (45mm) length, 1.0in (25mm) width, 0.4in (10mm) height
• ESC input voltage: 7.4-14.8V
• Continuous current: 80A
• Burst current: 120A
• BEC output: 5.5-8.4V
• Input lead: XT-60
• Motor leads: 4.0mm Bullets
• Motor KV: 2000KV
• Motor poles: 14
• LiPo: 3-4S
• Resistance: 0.02ohm
• Shaft diameter: 3.17mm
• No load current: 3.0A
• Motor size (diameter x length): 35x33.5mm
• Motor weight: 103g

Includes

• Python X 80A Brushed/Brushless ESC
• Wireless module
• Komodo Ten 2815-2000kV motor
