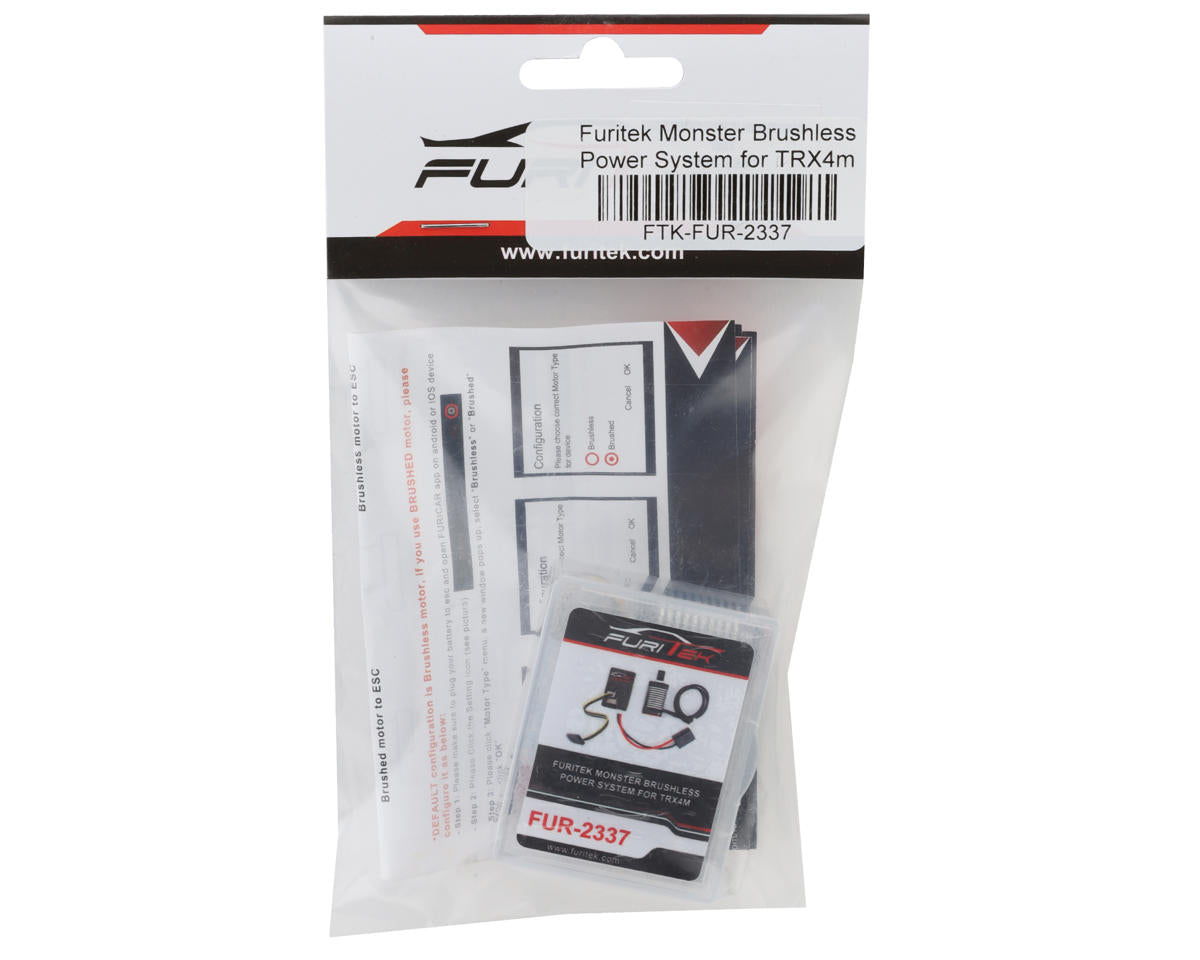

Furitek Monster Brushless Power System Combo for Traxxas TRX-4M

Upgrade a Traxxas TRX-4M micro truck with the Furitek Monster brushless power system combo. It pairs a Greyhound 1410 7500kV motor with a Lizard Pro ESC in a plug-and-play design.

The ESC supports sensorless brushless and brushed DC motors, with setup available through the Furitek FuriCar app on Android and iOS. FOC technology, real-time telemetry up to 10Hz, a built-in power switch, and a configurable 5V or 6.5V 2.5A BEC are included.

Important: This system is not compatible with the stock Traxxas TRX-4M radio and receiver. An external receiver is required.

Features

• Supports sensorless brushless DC and brushed DC motors
• FOC (Field-oriented control) technology
• Designed for the Traxxas TRX-4M micro truck
• Supports 2S-3S LiPo batteries
• Mini size and lightweight design
• App programming on Android and iOS
• Real-time telemetry up to 10Hz
• 2 pole high-torque motor design with a precision-balanced rotor
• High RPM ABEC5 bearings
• Maximum 60,000 RPM
• CNC machined 6061 T6 aluminum heat sink

Specifications

• Scale: 1/24
• Type: Brushed/Brushless Switchable
• Waterproof: No
• Input Voltage: 2-3S LiPo
• BEC Voltage: 5V or 6.5V
• ESC: 30A continuous, 50A burst
• ESC Size (LxW): 28x15.5mm
• ESC Weight: 17g
• Programmable: Built-in wireless
• Motor KV: 7500kV
• Motor Pole: 2P
• Motor Resistance: 0.7 Ohms
• No Load Current(@7.4V): 0.3A
• Motor Size (Diameter x Length): 15.5x25mm
• Application: 1/24 & 1/18 Monster Trucks

Includes

• (1) Lizard Pro 30A/50A Brushed/Brushless ESC
• (1) Greyhound 1410 7500KV brushless motor
• (1) CNC Steel Pinion
