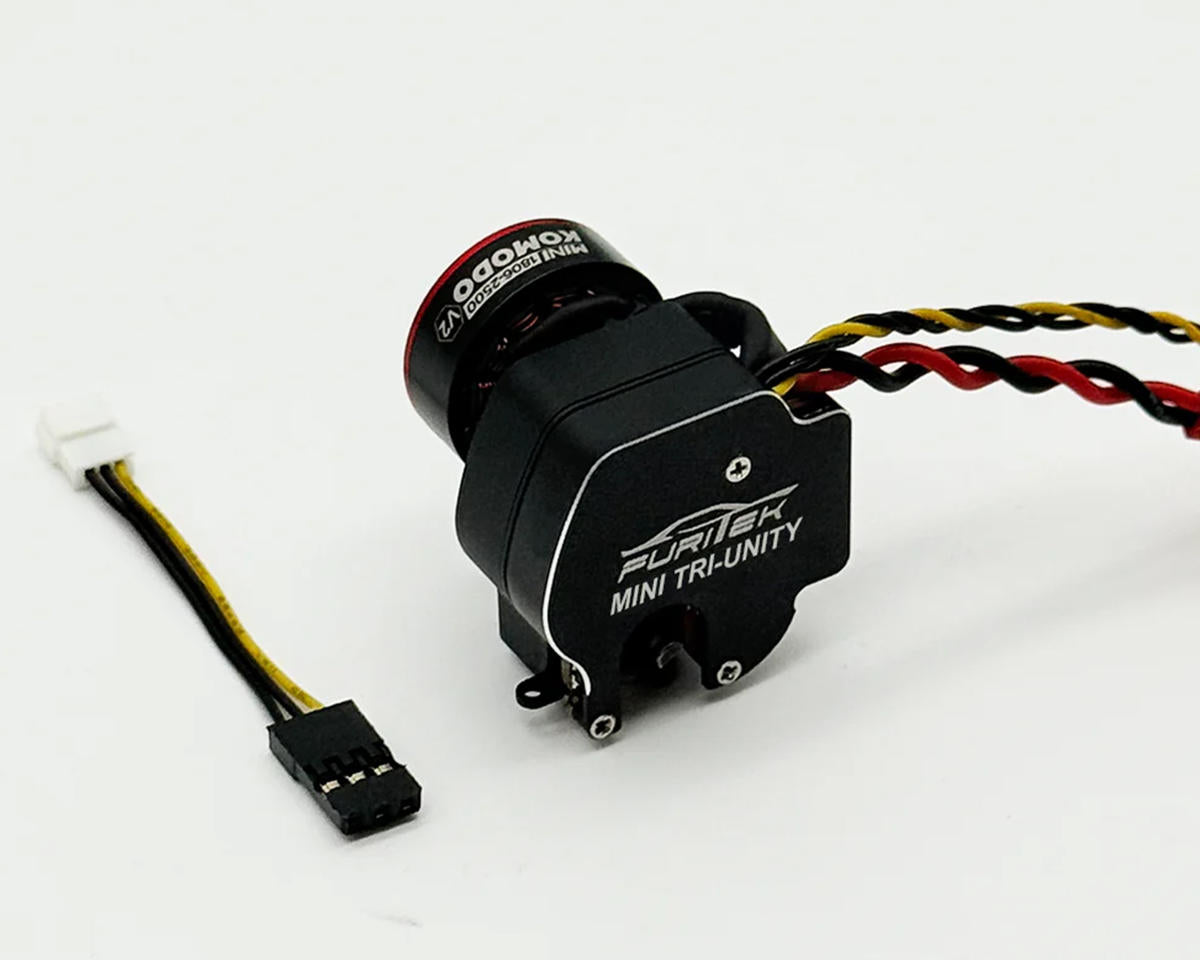

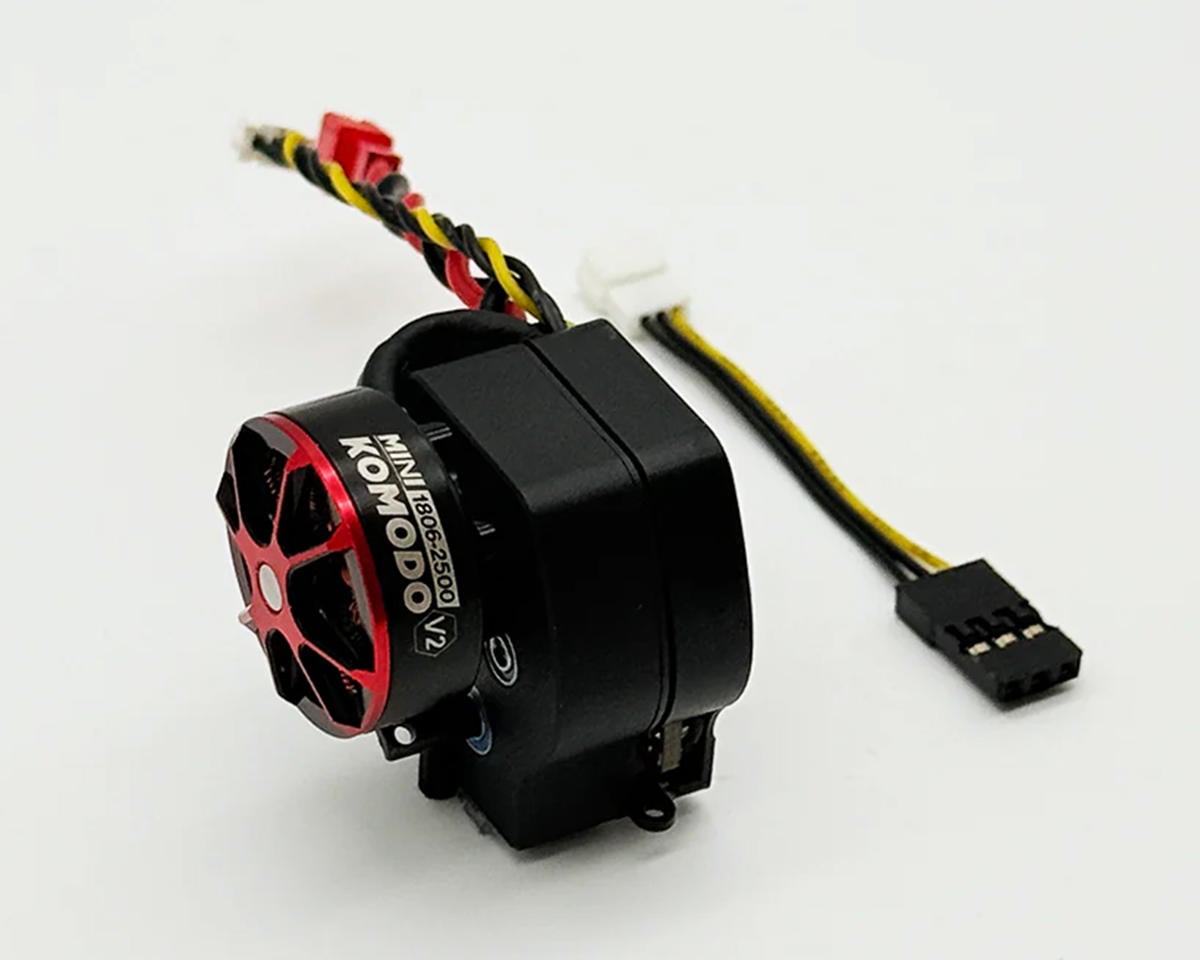

Furitek Mini Tri-Unity FOC 3-in-1 Brushless Drive System

The Furitek Mini Tri-Unity FOC 3-in-1 Brushless Drive System combines a brushless motor, transmission, and FOC ESC in one compact assembly for micro crawler applications. Designed for the Axial SCX24 platform, it provides reduced wiring complexity, smooth low-speed throttle response, and a cleaner electronics layout.

Features

• Reduced wiring complexity for cleaner setups
• Optimized for the Axial SCX24 platform
• High torque output for technical crawling
• Smooth low-speed throttle response
• CNC-machined Mini Stellar Transmission for improved gear efficiency
• Built-in High-Power BEC with selectable 5.5V/7.4V output
• Easy installation with included mounting hardware
• Compatible with the Furicar mobile tuning app
• Outrunner motor with integrated ESC for mini crawlers

Specifications

• Suggested Application: Micro Rock Crawlers
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Battery Connector: PH 2.0
• Programming: Furicar App
• Adjustable Timing: No
• Motor Connector: 3 Pin

Includes

• (1) Mini Tri-Unity FOC 3-in-1 Brushless Drive System
• (1) Pre-Assembled Mini Transmission
• Product Manual
