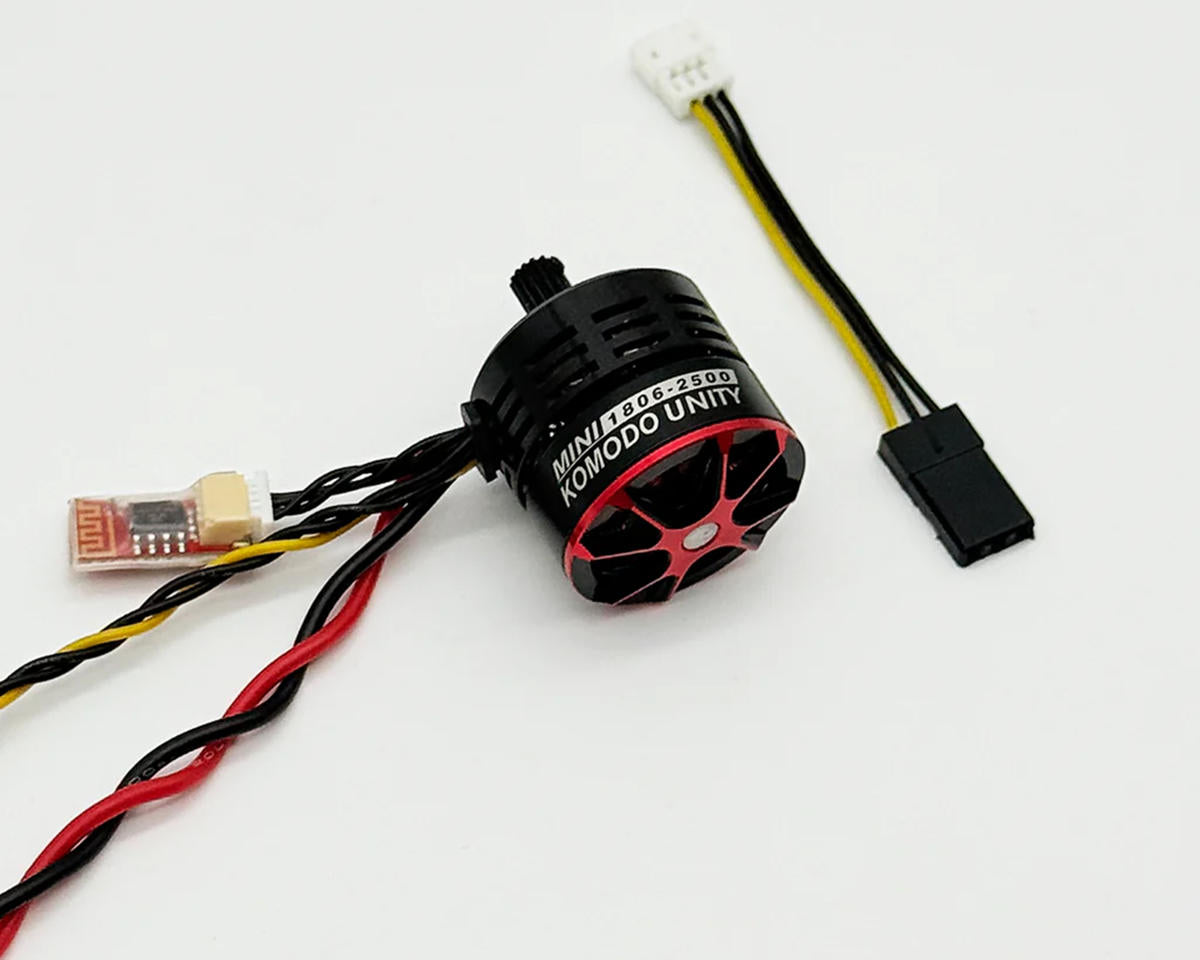

Furitek Mini Komodo Unity 2-in-1 Micro FOC

The Furitek Mini Komodo Unity 2-in-1 Micro FOC combines a 2500kV brushless outrunner motor and ESC in one compact assembly for micro rock crawlers. Its integrated design reduces wiring complexity while providing smooth low-speed throttle response for technical crawling.

Built-in FOC control and a selectable 5.5V or 7.4V BEC support precise operation and flexible servo configurations. The system accepts 2-3S LiPo power and can be tuned with the Furicar mobile app.

Features

• Integrated ESC and outrunner motor for micro crawlers
• 2500kV brushless motor with high torque output
• Ultra-smooth low-speed throttle response
• 30A continuous and 50A burst current ratings
• Built-in 5A BEC with adjustable 5.5V or 7.4V output
• Reduced wiring complexity for cleaner setups
• Optimized for Furitek TerraX, Terra Comp, Titan Buggy 18, and Titan Buggy 24
• Compatible with the Furicar mobile tuning app

Specifications

• Suggested Application: Micro Rock Crawlers
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Turn/kV: 2500kV
• Continuous Current: 30A
• Burst Current: 50A
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App
• Adjustable Timing: No
• Watts: 160
• Diameter: 0.91in (23mm)
• Length: 0.84in (21.3mm)
• Weight: 0.88oz (25.1g)

Includes

• (1) Mini Komodo Unity 2-in-1 Micro FOC Brushless System
• (1) Power Adapter Cable
• (1) Furitek Wireless Module
• (1) 14T Steel Pinion
• Product Manual
