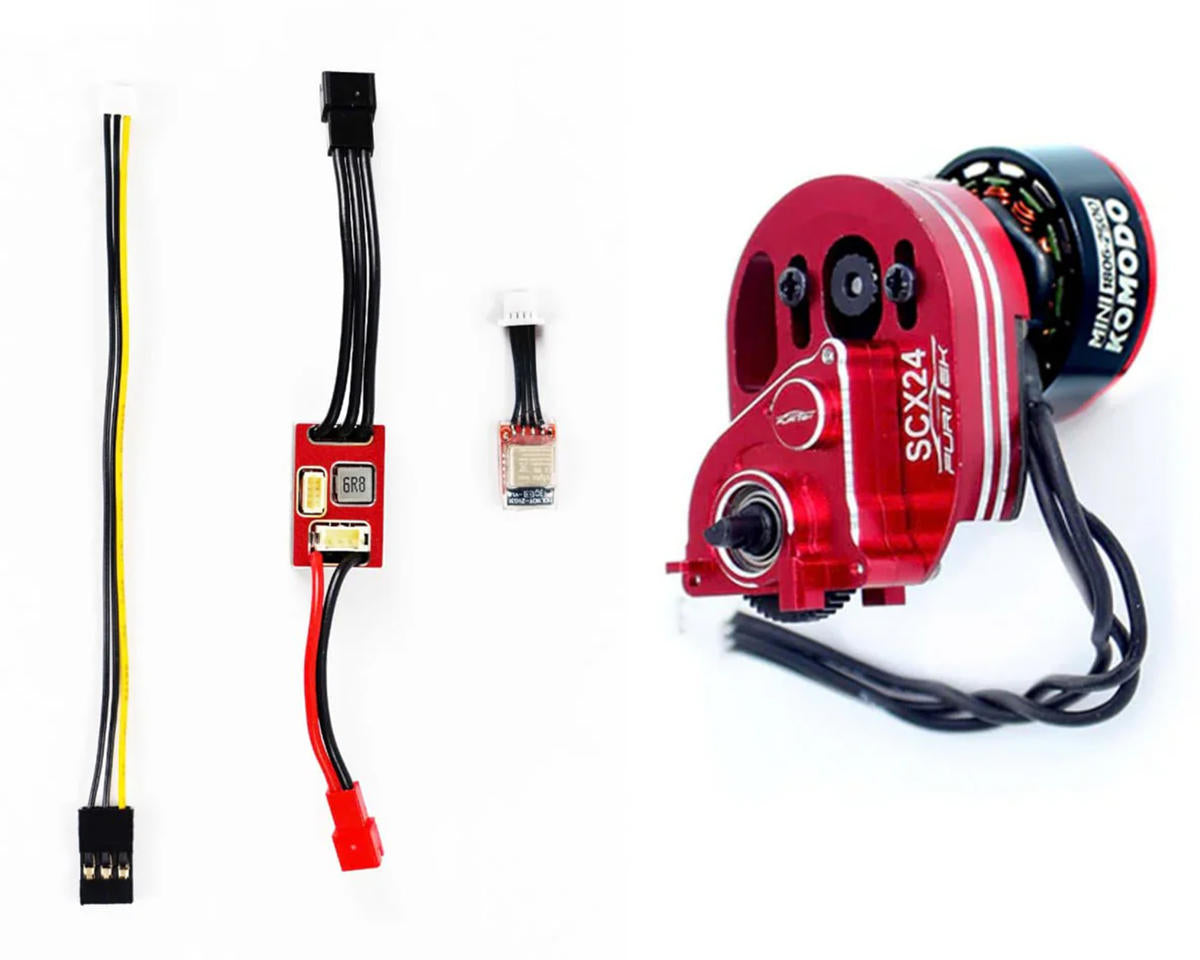

Furitek Mini Komodo Brushless Motor & MicroPython ESC Crawlmaster Combo (SCX24)

Upgrade an Axial SCX24 crawler with the Furitek Mini Komodo V2 Brushless Motor, MicroPython ESC, and Mini Stellar CNC Aluminum Transmission combo. FOC technology provides smooth throttle control, while the Furicar App enables live tuning through Android and iOS devices.

The MicroPython ESC supports brushed and brushless motors, includes a built-in high-power BEC, and is compatible with 2-3S LiPo batteries. The fourteen-pole Mini Komodo V2 motor features ultra-thin stator laminations, a precision-balanced rotor, high-purity copper windings, and a CNC-machined aluminum heatsink.

The Mini Stellar Transmission uses a CNC-machined aluminum housing and optimized gear design for smooth power transfer on Axial SCX24 platforms.

Features

• FOC technology for ultra-smooth throttle control
• Live tuning via the Furicar App for Android and iOS
• MicroPython ESC supports both brushed and brushless motors
• Compatible with 2-3S LiPo batteries
• Precision-engineered for Axial SCX24 platforms
• Fourteen-pole brushless motor
• Ultra-thin stator laminations
• Precision-balanced rotor
• CNC-machined aluminum heatsink

Includes

• (1) MicroPython ESC
• (1) Mini Komodo V2 Brushless Motor
• (1) Mini Stellar Transmission
• (1) Wireless Module
• (1) Receiver Plug
• Product Manual

ESC Specifications

• Suggested Application: 1/24 Crawler
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 25A
• Burst Current: 50A
• Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• Weight: 0.27oz (7.6g)
• BEC Voltage: 5.5/7.4V
• BEC Continuous Current: -
• BEC Peak Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App

Motor Specifications

• Suggested Application: 1/24 Crawler
• Size: 2500kV
• Type: Brushless
• Voltage: 2-4S LiPo
• Adjustable Timing: No
• Watts: 160
• Connector: 3 Pin
• Dimensions: 0.59x0.91in (15x23mm)
• Weight: 0.67oz (19g)
