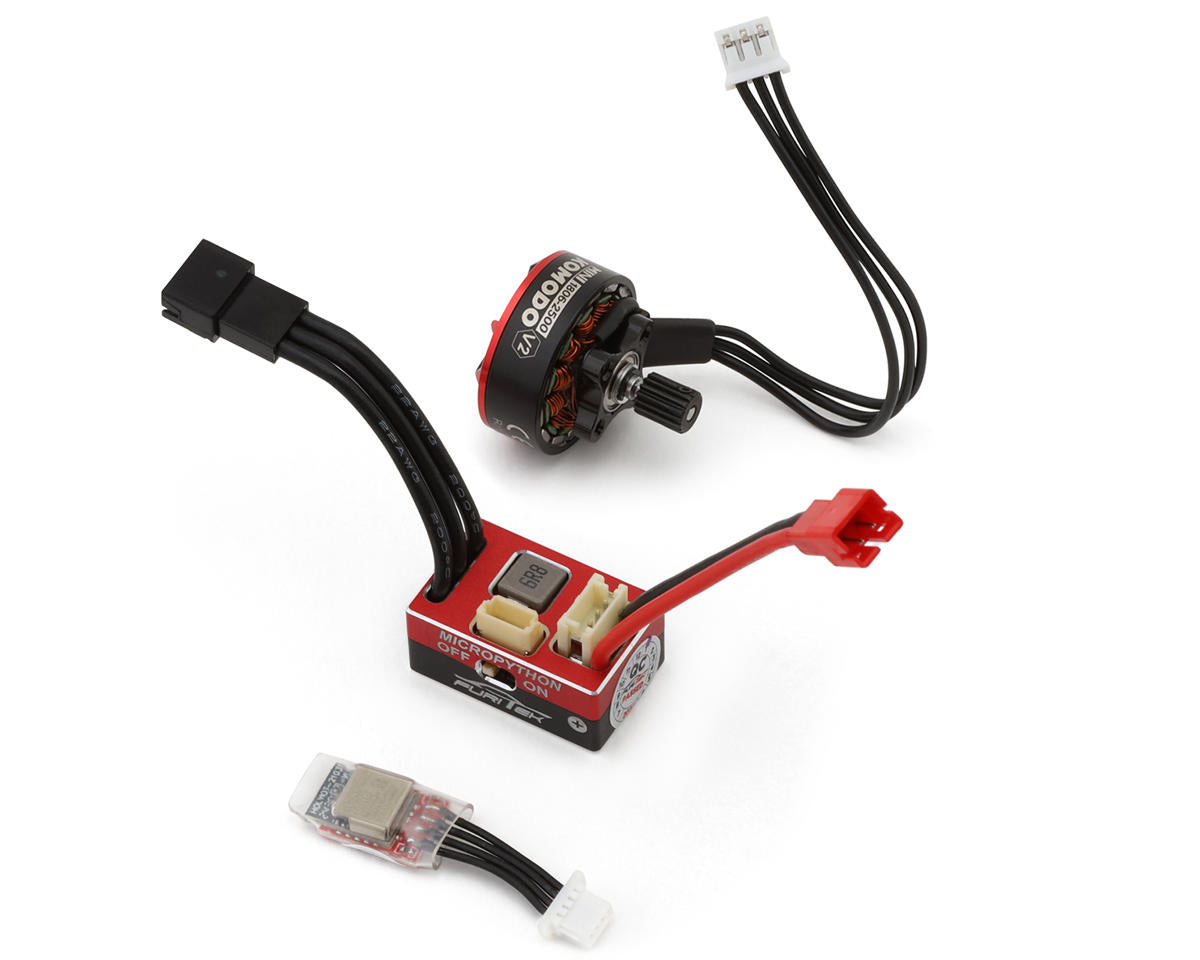

Furitek MicroSilk 2025 Brushless Power System Combo for Traxxas® TRX-4M™

The Furitek MicroSilk 2025 Brushless Power System Combo combines the MicroPython ESC with the Micro Komodo V2 brushless motor for Traxxas® TRX-4M™ crawlers. Field-Oriented Control (FOC) technology provides precise throttle response, while the compact design supports installation in tight spaces.

Features

• Designed specifically for TRX-4M crawlers
• Brushless motor and ESC combo
• Field-Oriented Control (FOC) technology for precise throttle response
• Ultra-compact design
• Upward wire configuration for improved space management
• Built-in 5A BEC for servo operation
• Wireless tuning via the Furicar App for Android and iOS
• Real-time telemetry up to 10Hz

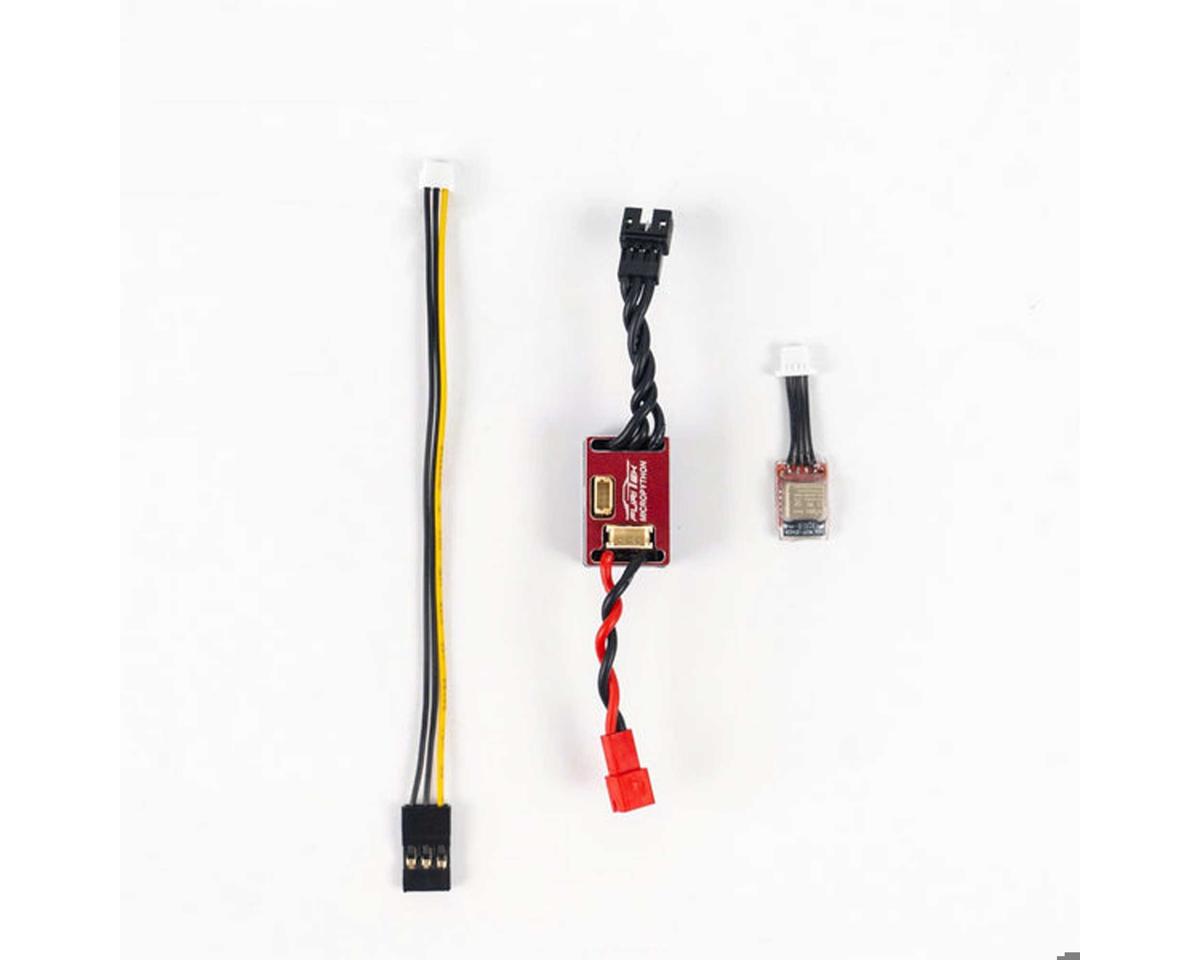

Included

• (1) MicroPython ESC
• (1) Micro Komodo Brushless Motor
• (1) Wireless Module
• (1) Receiver Plug
• (1) User Manual

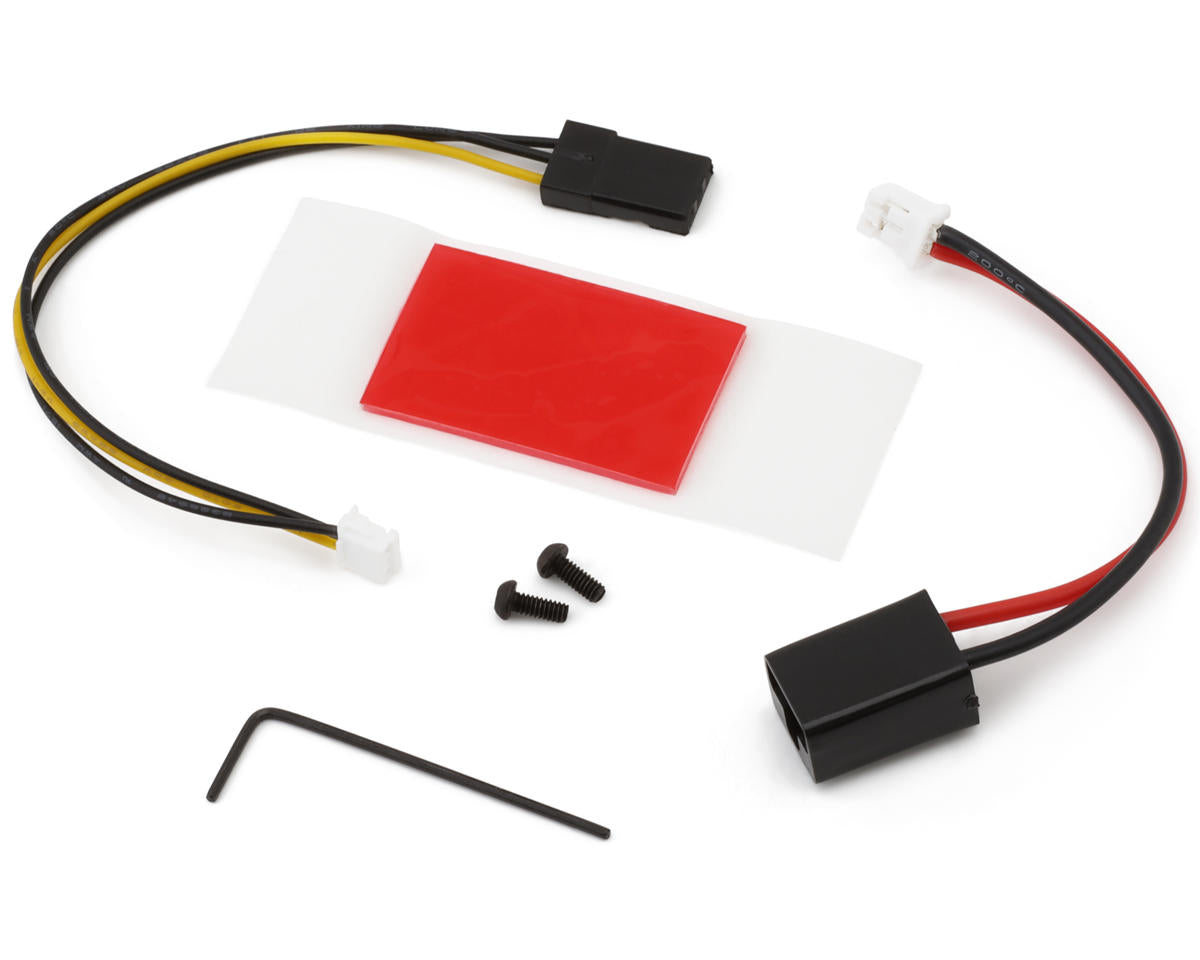

• Mounting Accessories

ESC Specifications

• Suggested Application: 1/18-1/24 Crawler
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 25A
• Burst Current: 50A
• Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• BEC Voltage: 5.5-7.4V
• BEC Peak Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App

Motor Specifications

• Suggested Application: 1/18-1/24 Crawler
• Size: 2500kV
• Type: Brushless
• Voltage: 2-4S LiPo
• Adjustable Timing: No
• Watts: 160
• Connector: 3 Pin
• Dimensions: 0.59x0.91in (15x23mm)
• Weight: 0.67oz (19g)

Tech Note: This motor is designed to fit perfectly with the stock components. Compatibility with aftermarket transmissions or driveshafts may vary, and minor fitment adjustments could be required.
