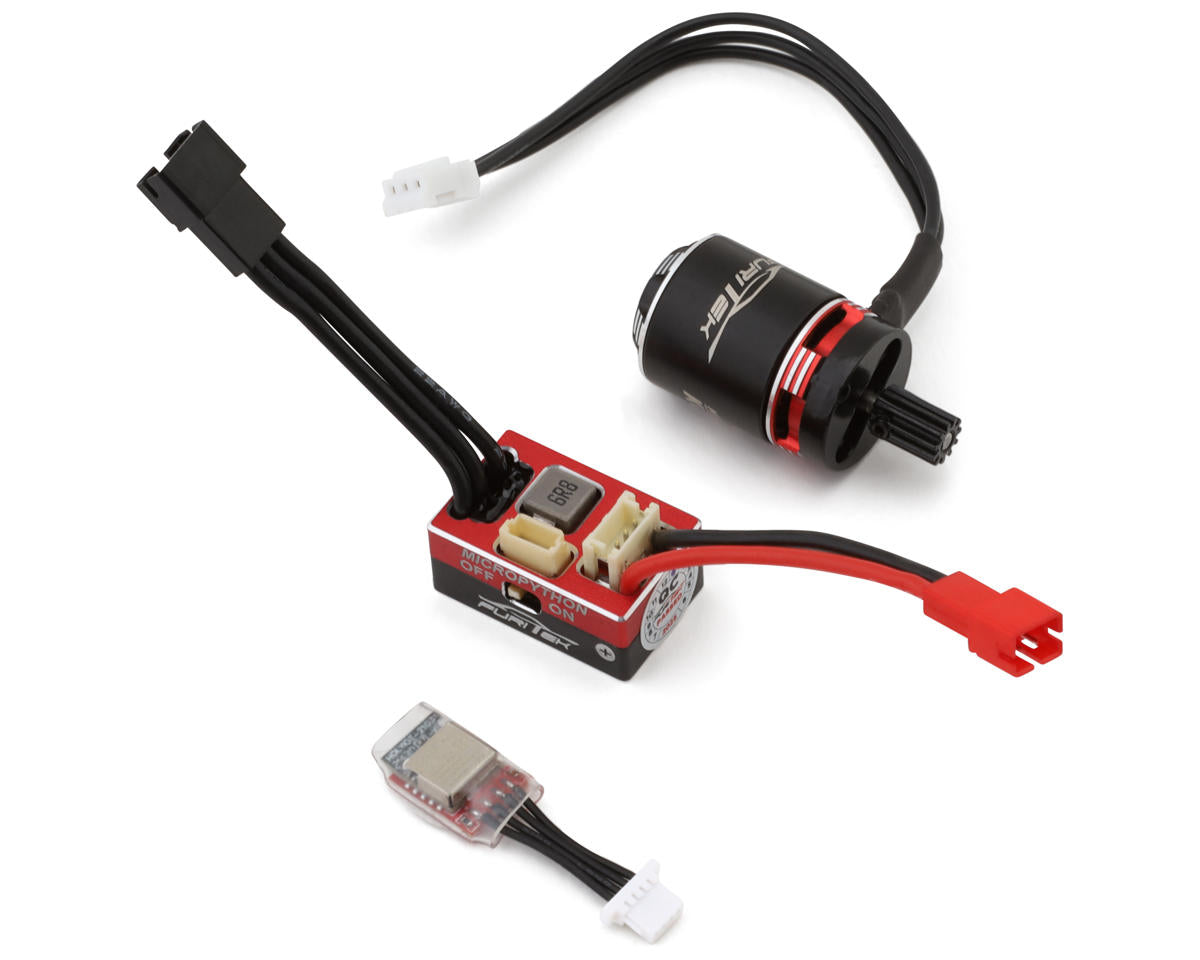

Furitek MicroModo 2025 Brushless Power System Combo for Traxxas® TRX-4M™

Upgrade a Traxxas® TRX-4M™ crawler with the Furitek MicroModo 2025 Brushless Power System Combo. This compact system pairs the Micro Python brushless ESC with the Micro Komodo brushless motor for smooth, precise throttle control and brushless power delivery.

Features

• Specifically designed for TRX-4M crawlers
• Micro Python brushless ESC with Field-Oriented Control (FOC)
• High-efficiency Micro Komodo brushless motor
• Compact and lightweight design
• Upward wire configuration for optimized space usage
• 5A BEC for servo support
• Real-time telemetry and app-based tuning through the Furicar App
• Supports 2-3S LiPo batteries

Included

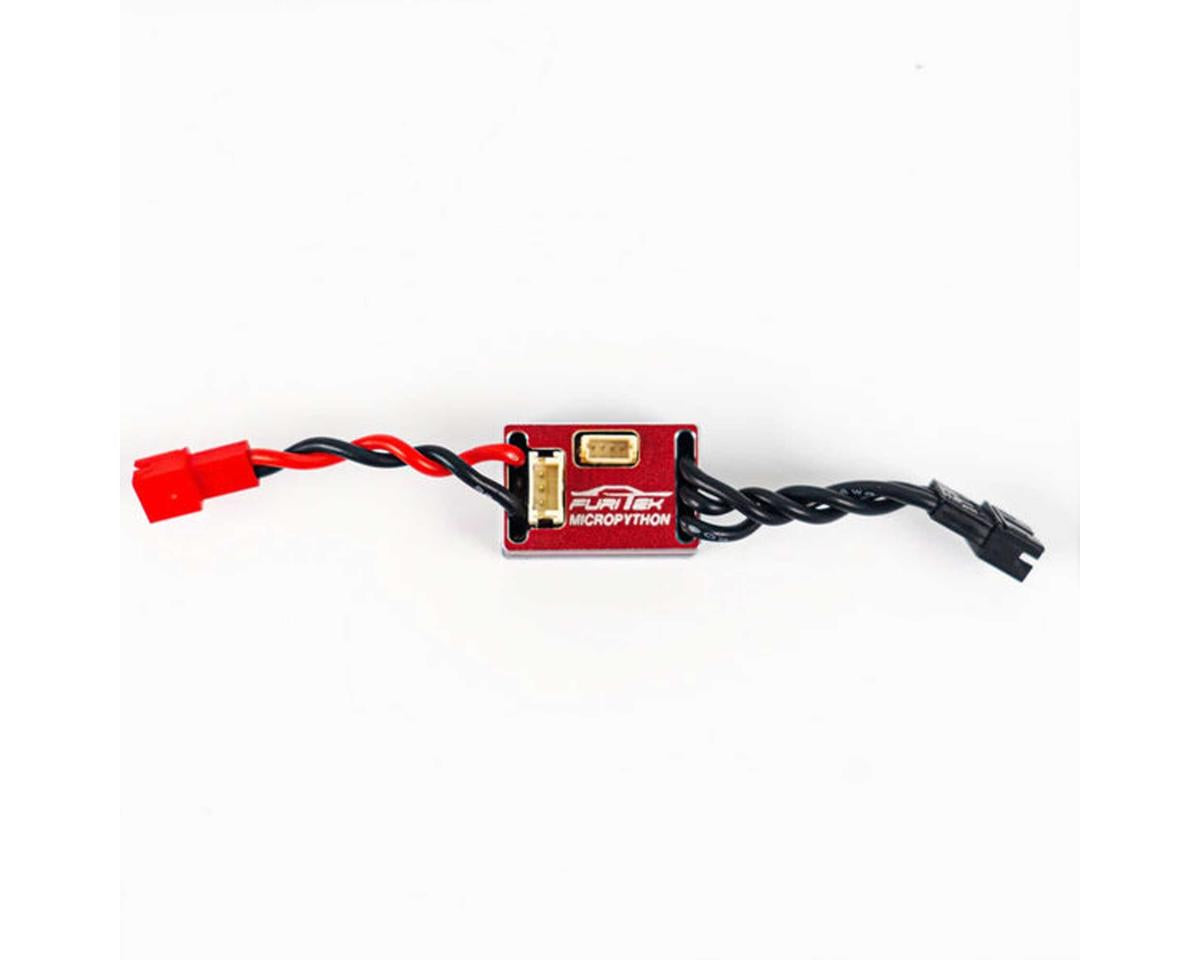

• (1) MicroPython ESC
• (1) Micro Komodo Brushless Motor

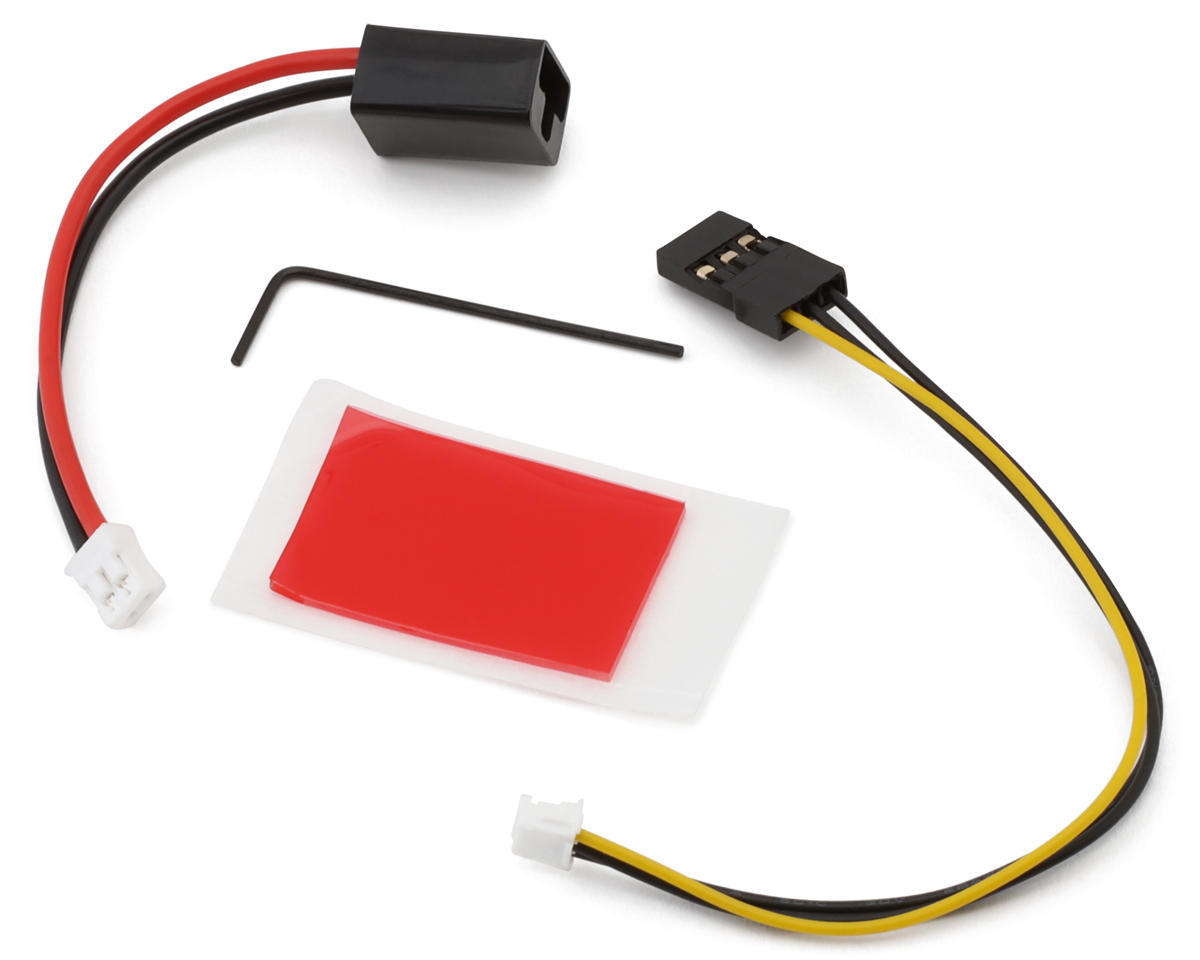

• (1) Wireless Module
• (1) Receiver Plug
• (1) User Manual
• Mounting Accessories

ESC Specifications

• Suggested Application: 1/18-1/24 Crawler
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 25A
• Burst Current: 50A
• Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• Weight: 0.27oz (7.6g)
• BEC Voltage: 5.5-7.4V
• BEC Peak Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App

Motor Specifications

• Suggested Application: 1/18-1/24 Crawler
• Size: 3450kV
• Type: Brushless
• Voltage: 2-3S LiPo
• Adjustable Timing: No
• Watts: 120
• Connector: 3 Pin
• Dimensions: 0.61x0.81in (15.5x20.6mm)
• Shaft Length: 0.24in (6mm)
• Shaft Diameter: 0.06in (1.5mm)
• Weight: 0.62oz (17.5g)
