Furitek MicroModo 2025 Brushless Power System Combo for Redcat Ascent18

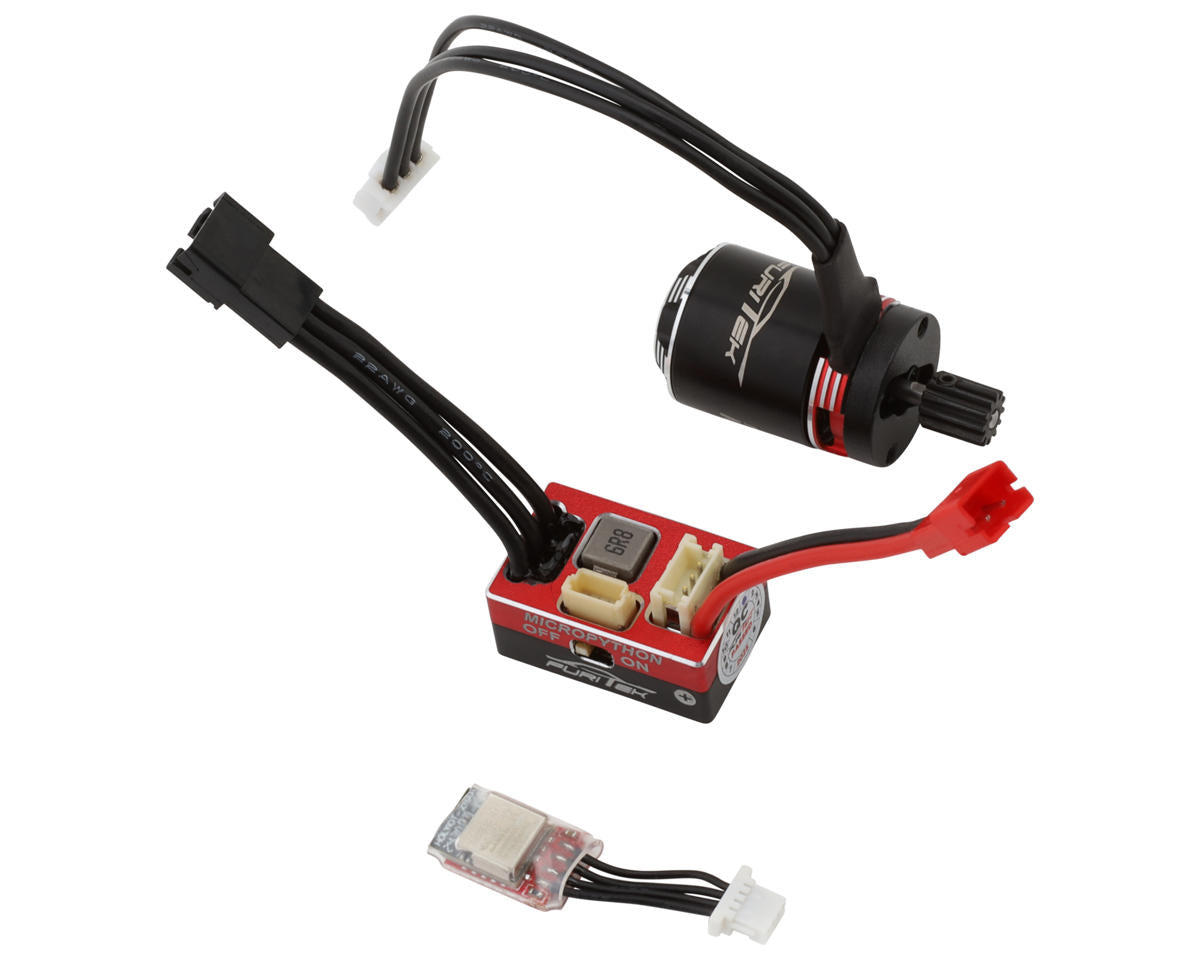

The Furitek MicroModo 2025 Brushless Power System Combo is designed specifically for the Redcat Ascent18. It combines a MicroPython brushless ESC with a Micro Komodo brushless motor in an ultra-compact package for 1/24 crawler applications.

Features

• Tailored for Redcat Ascent18
• Ultra-compact design
• MicroPython ESC with FOC technology
• Live tuning via Furicar app
• Smooth throttle control
• Built-in "BIG" BEC
• 12-pole hi-torque motor
• CNC machined aluminum heatsink
• Japanese NMB bearings

ESC Specifications

• Suggested application: 1/24 Crawler
• Motor type: Brushless
• Input voltage: 2-3S LiPo (7.4-11.1V)
• Continuous current: 25A
• Burst current: 50A
• Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• Weight: 0.27oz (7.6g)
• BEC voltage: 5.5-7.4V
• BEC continuous current: -
• BEC peak current: 5A
• Motor connector: 3 Pin
• Battery connector: PH 2.0
• Programming: Furicar App

Motor Specifications

• Suggested application: 1/24 Crawler
• Size: 3450kV
• Type: Brushless
• Voltage: 2-3S LiPo
• Adjustable timing: No
• Watts: 120
• Connector: 3 Pin
• Dimensions: 0.61x0.81in (15.5x20.6mm)
• Shaft length: .24in (6mm)
• Shaft diameter: 0.06in (1.5mm)
• Weight: 0.62oz (17.5g)

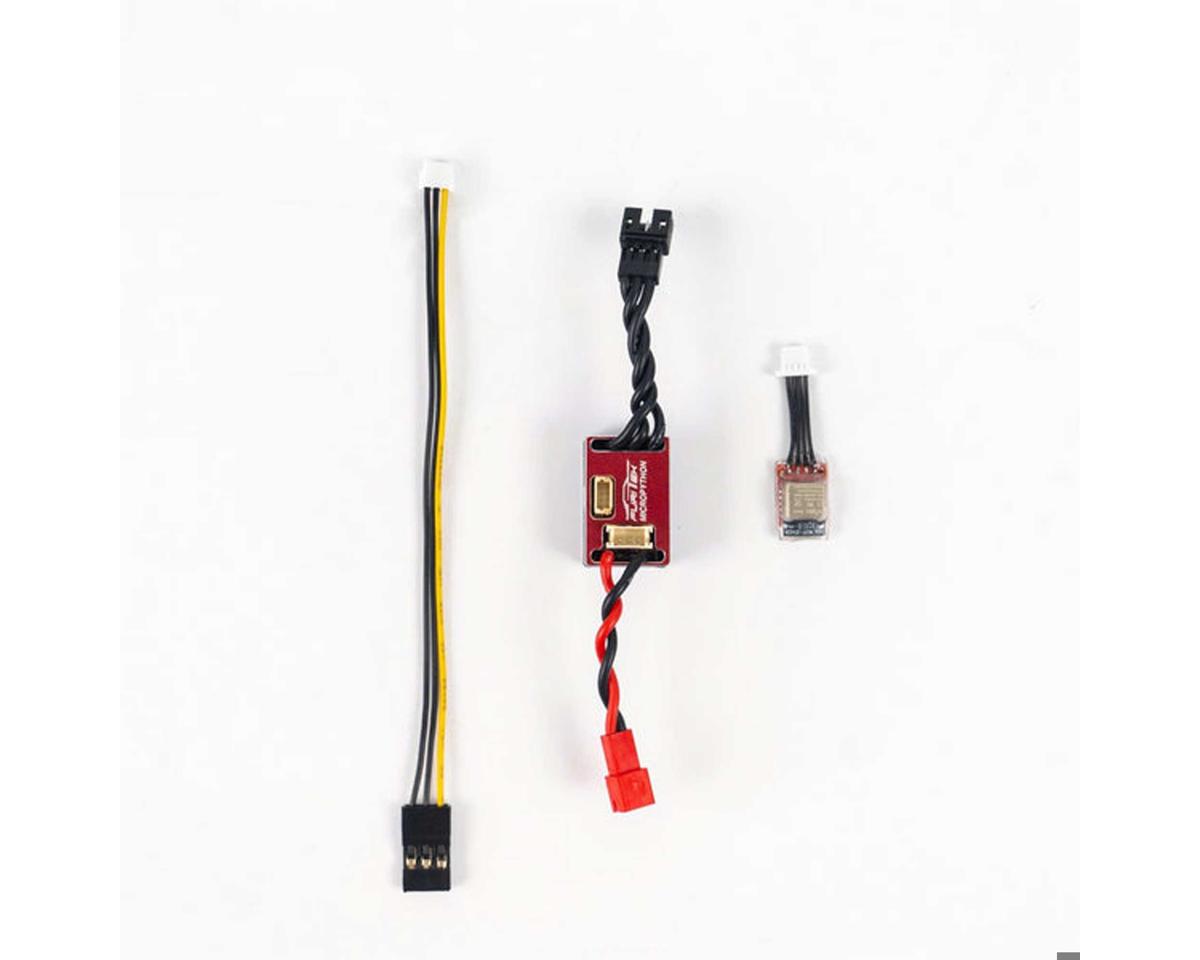

Includes

• (1) MicroPython ESC
• (1) Micro Komodo Brushless Motor
• (1) Wireless Module
• (1) Receiver Plug
• (1) User Manual
• Mounting Accessories
