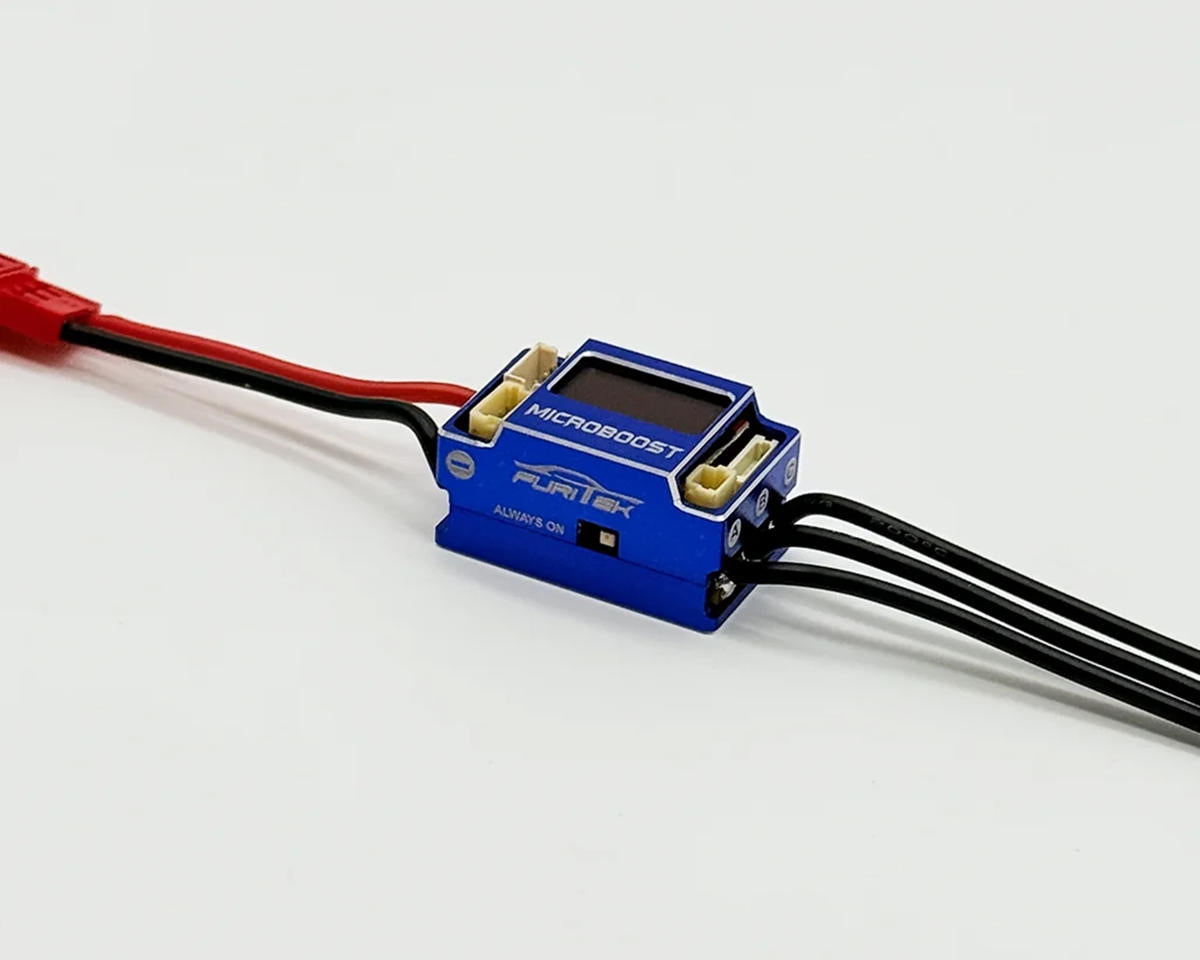

Furitek Microboost 2S 25A Brushless Sensored/Sensorless Micro Drift ESC

The Furitek Microboost 2S 25A Brushless ESC is designed for 1/24, 1/27, and 1/28 drift and race cars. It supports sensored and sensorless brushless motors and includes an LCD display for monitoring battery voltage, ESC temperature, and RPM.

Adjust throttle, brake, boost, and turbo timing through the LCD interface or with the Furitek app; wireless programming requires a module. The Backfire LED system, Rev-Limiter feature, data logging, and solder posts add tuning and customization options in a compact, lightweight package.

Features

• Supports sensored and sensorless brushless motors
• Compatible with 1/24, 1/27, and 1/28 drift and race cars
• Integrated LCD display for real-time monitoring
• Adjustable throttle, brake, boost, and turbo timing
• Wireless programming via Furitek app; module required
• Data logging with temperature and RPM tracking
• Backfire LED system and Rev-Limiter feature
• Solder posts for wire replacement or customization
• Lightweight, compact design

Specifications

• Suggested Application: 1/24-1/28
• Motor Type: Brushless Sensored
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 25A
• Burst Current: 50A
• Dimensions (LxWxH): 1.02x0.59x0.51in (26x15x12.9mm)
• Weight: 0.36oz (10.3g)
• BEC Voltage: 5.5-7.4V
• BEC Peak Current: 5A
• Motor Connector: 3 Pin
• Programming: LCD Display/Furicar App

Includes

• (1) Furitek Microboost 2S 25A Brushless ESC
• (1) LCD Display Module
• (2) Wiring Harness
• (1) Mounting Tape
• (1) User Manual
