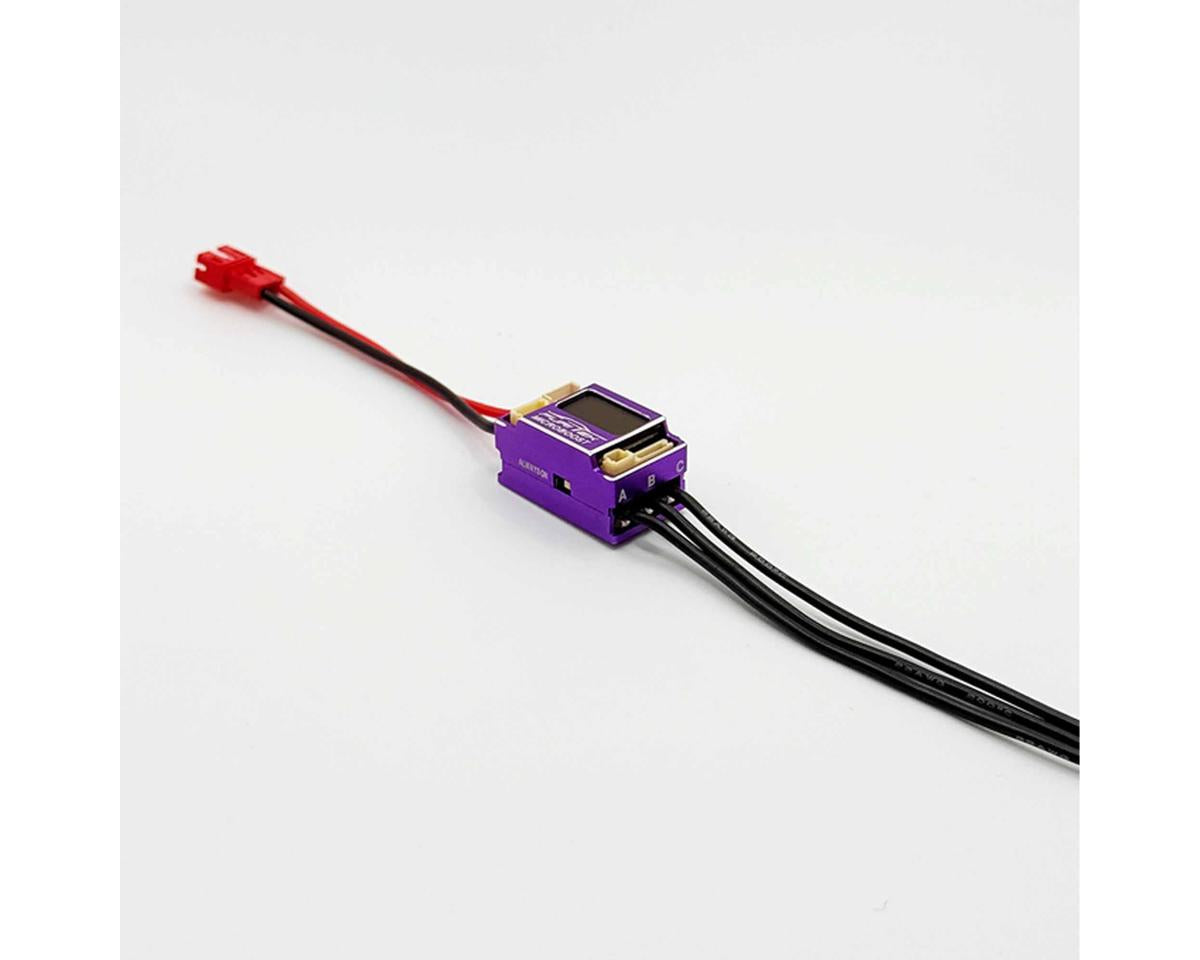

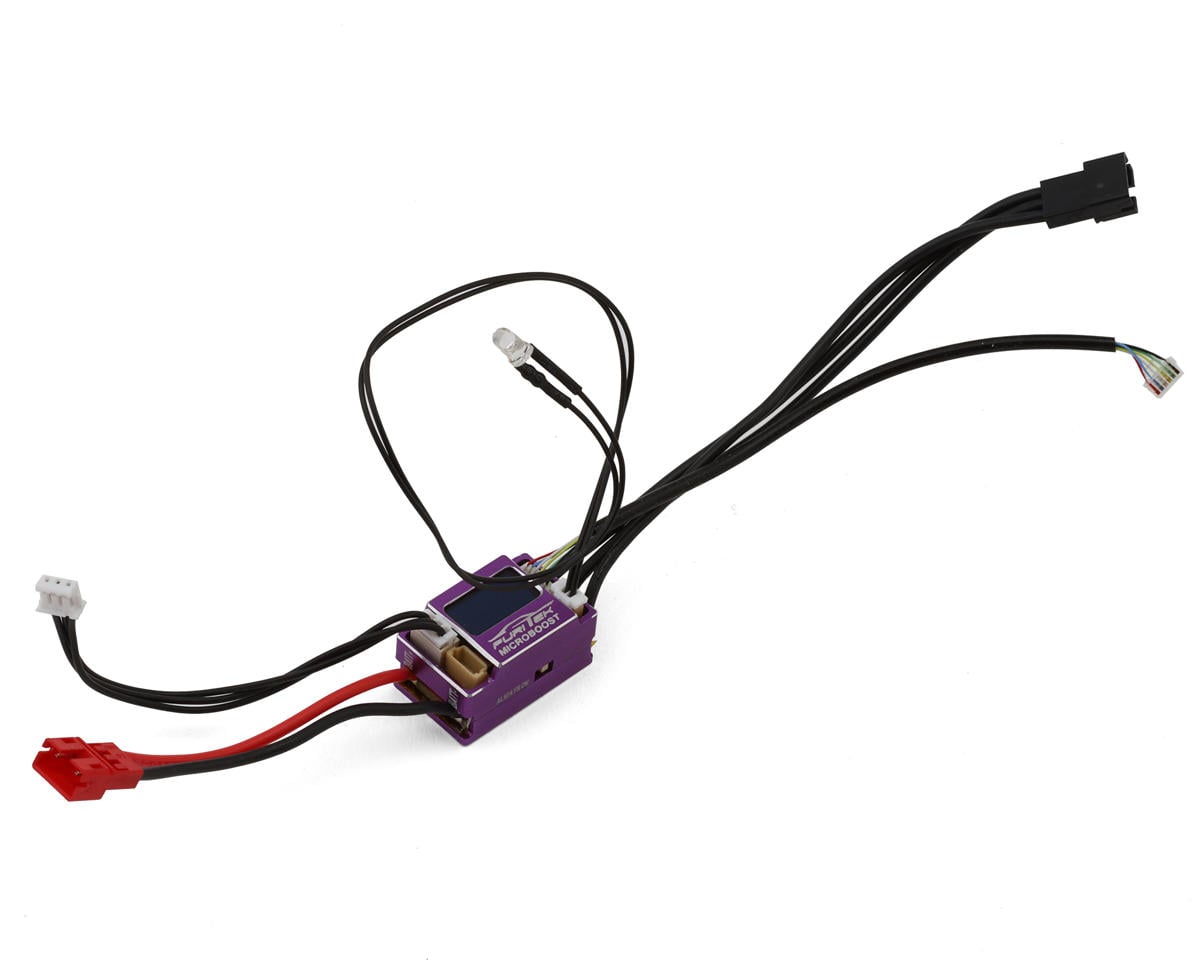

Furitek Microboost 2S 25A Brushless Sensored/Sensorless Micro Drift ESC

The Furitek Microboost 2S 25A Brushless Sensored/Sensorless Micro Drift ESC is designed for 1/24, 1/27, and 1/28 scale drift and race cars. It supports sensored and sensorless brushless motors and includes an LCD display module for monitoring key parameters.

Features

• Supports sensored and sensorless brushless motors
• Compatible with 1/24, 1/27, and 1/28 drift and race cars
• LCD display for real-time monitoring
• Adjustable throttle, brake, boost, and turbo timing
• Wireless programming via the Furitek app; module required
• Data logging with temperature and RPM tracking
• Backfire LED system for exhaust effects
• Rev-Limiter feature with engine sounds
• Solder posts for wire replacement or customization
• Compact, lightweight design

Specifications

• Suggested Application: 1/24-1/28
• Motor Type: Brushless Sensored
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 25A
• Burst Current: 50A
• Dimensions (LxWxH): 1.02x0.59x0.51in (26x15x12.9mm)
• Weight: 0.36oz (10.3g)
• BEC Voltage: 5.5-7.4V
• BEC Continuous Current: -
• BEC Peak Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: -
• Motor Wire: -
• Battery Wire: -
• Throttle Wire: -
• Programming: LCD Display/Furicar App

Includes

• (1) Furitek Microboost 2S 25A Brushless ESC
• (1) LCD Display Module

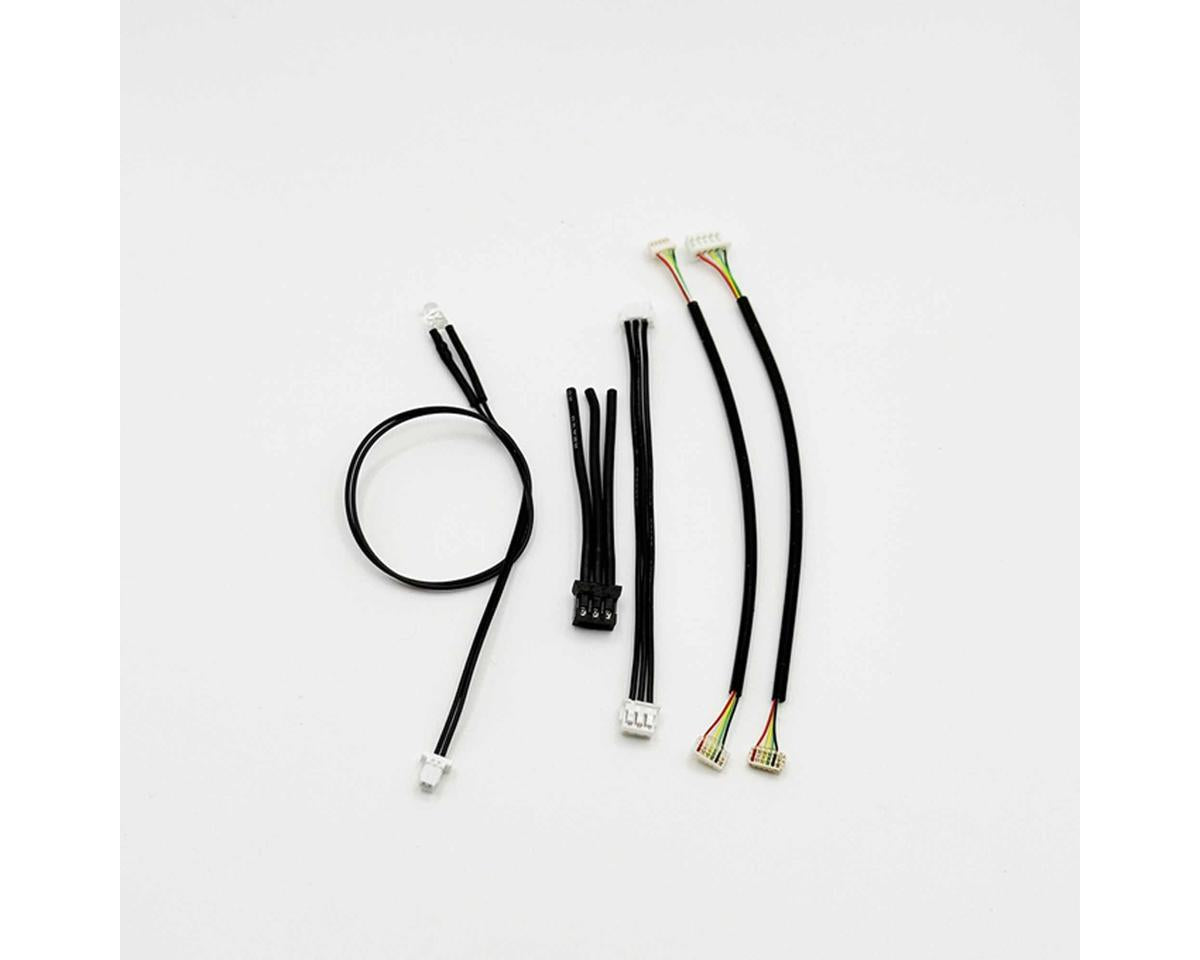

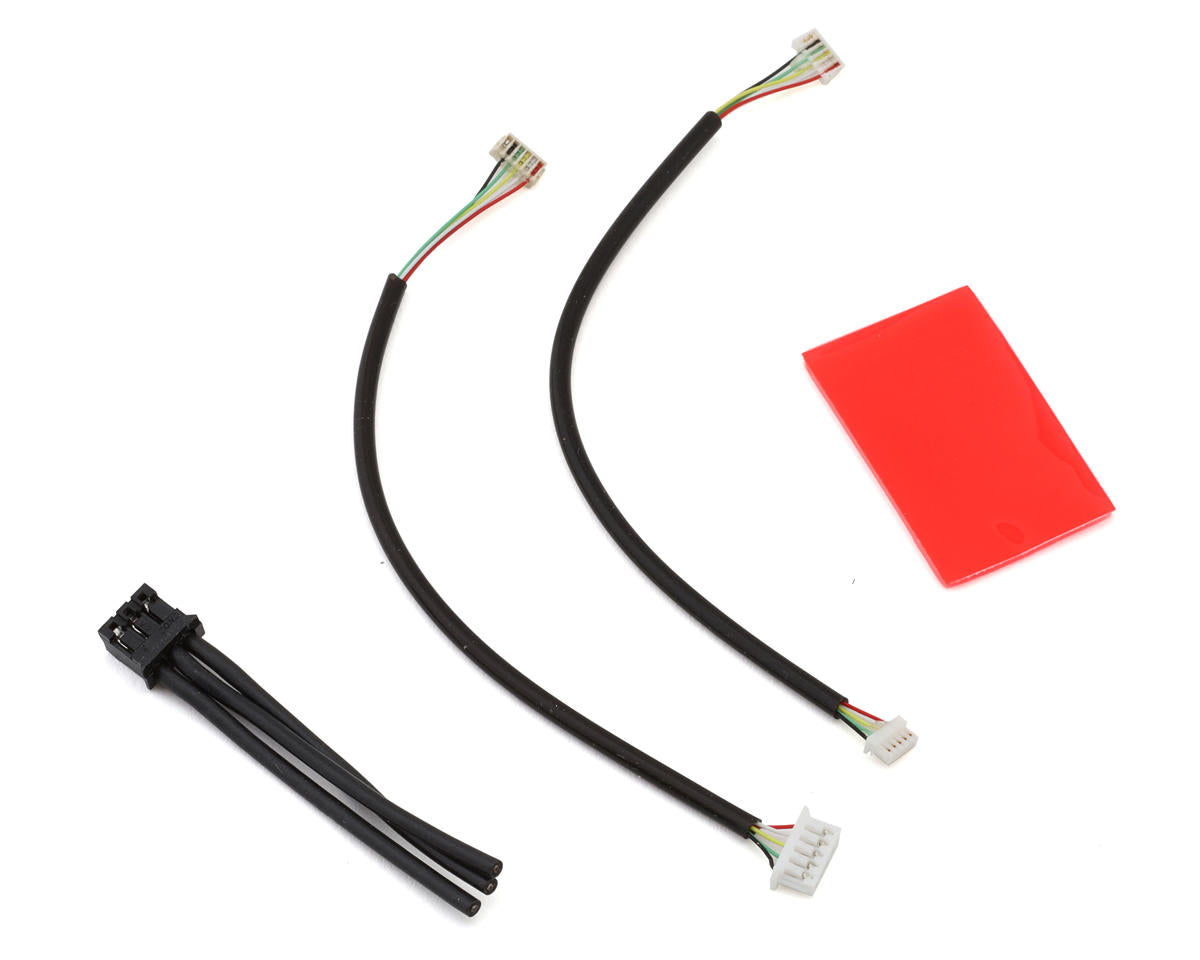

• (2) Wiring Harness
• (1) Mounting Tape
• (1) User Manual
