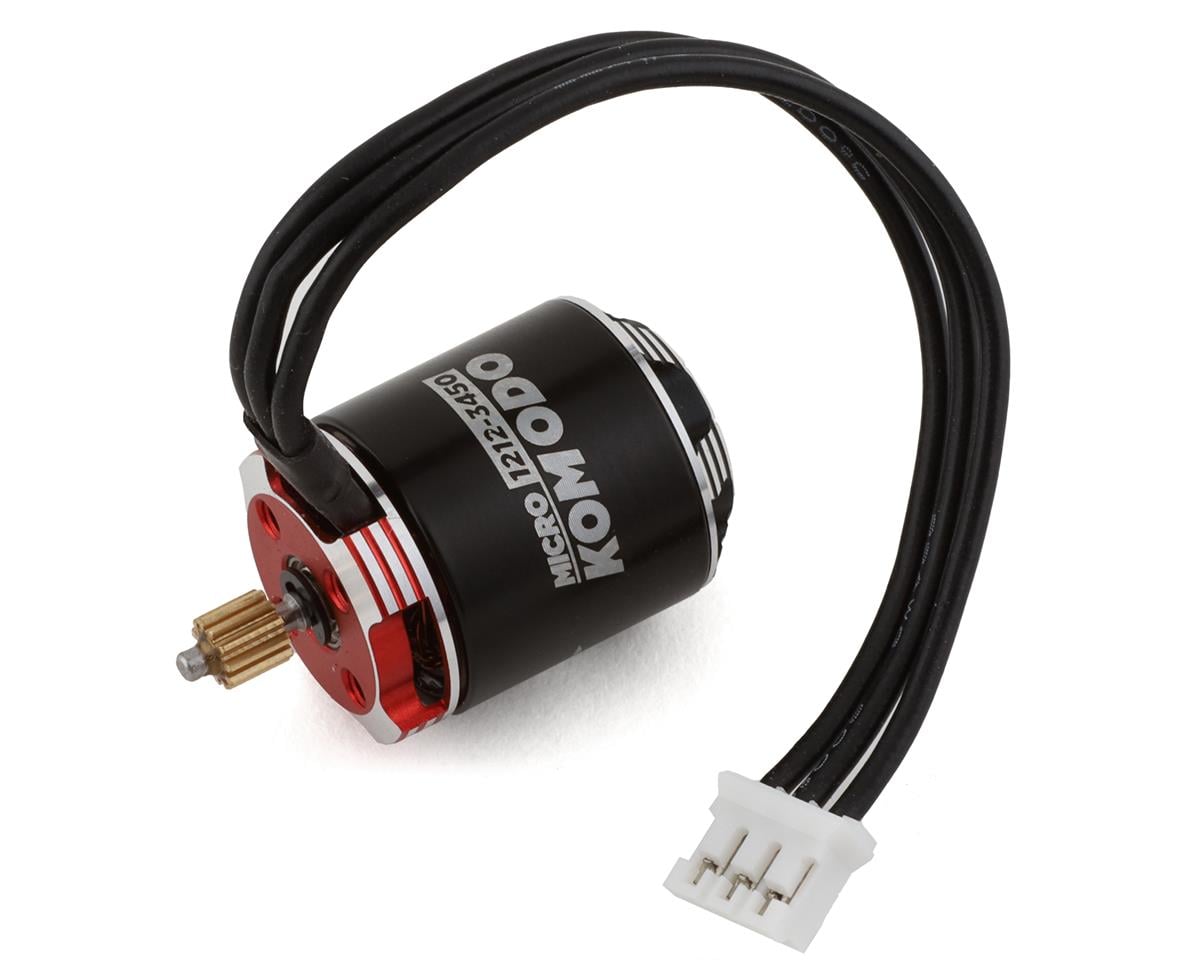

Furitek Micro Komodo Brushless Motor (3450kV)

The Furitek Micro Komodo Brushless Motor delivers a high-torque option for space-conscious 1/24 scale builds. Its 12-pole design, precision-balanced rotor, and 3450kV rating support extremely low RPM operation while maintaining torque and efficiency.

Features

• 12-pole high-torque motor design
• 0.2 mm stator laminations
• Japanese NMB high-RPM ABEC5 bearings
• Precision-balanced rotor
• CNC-machined 6061 T6 billet aluminum heatsink can
• Precision engineering for maximum energy conversion
• High-purity, higher-temperature single copper windings
• Designed for efficient heat dissipation

Specifications

• kV (RPM/Motor): 3450
• No-load current: 0.7A @ 10V
• Watt: 120W
• Battery: 2-3S
• Resistance: 0.16Ohms
• Max Current: 10A
• Slot/Pole: 12
• Motor size: 15.5x20.6mm
• Shaft: 1.5x6mm
• Weight: 17.5g

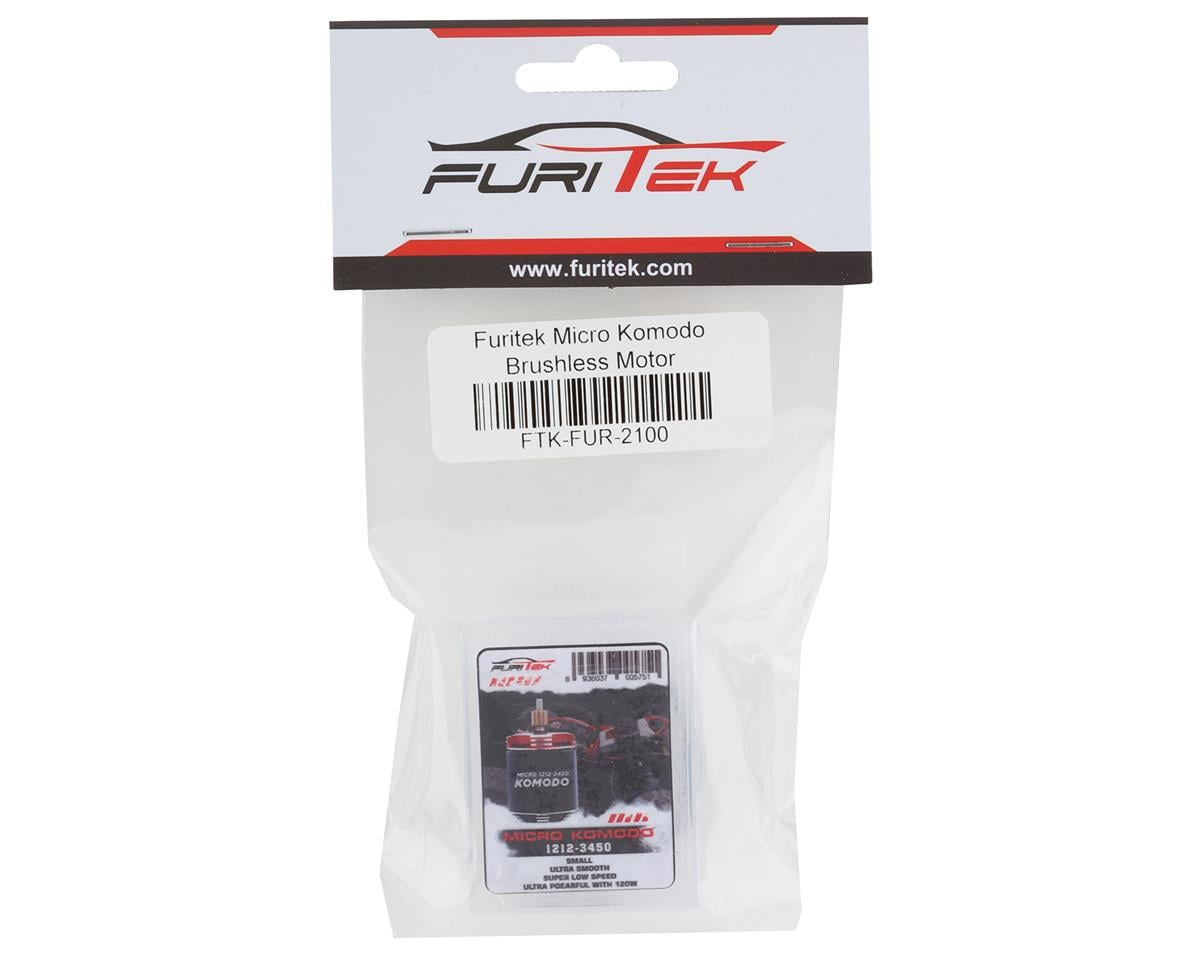

Package includes one micro motor with pre-installed pinion.
