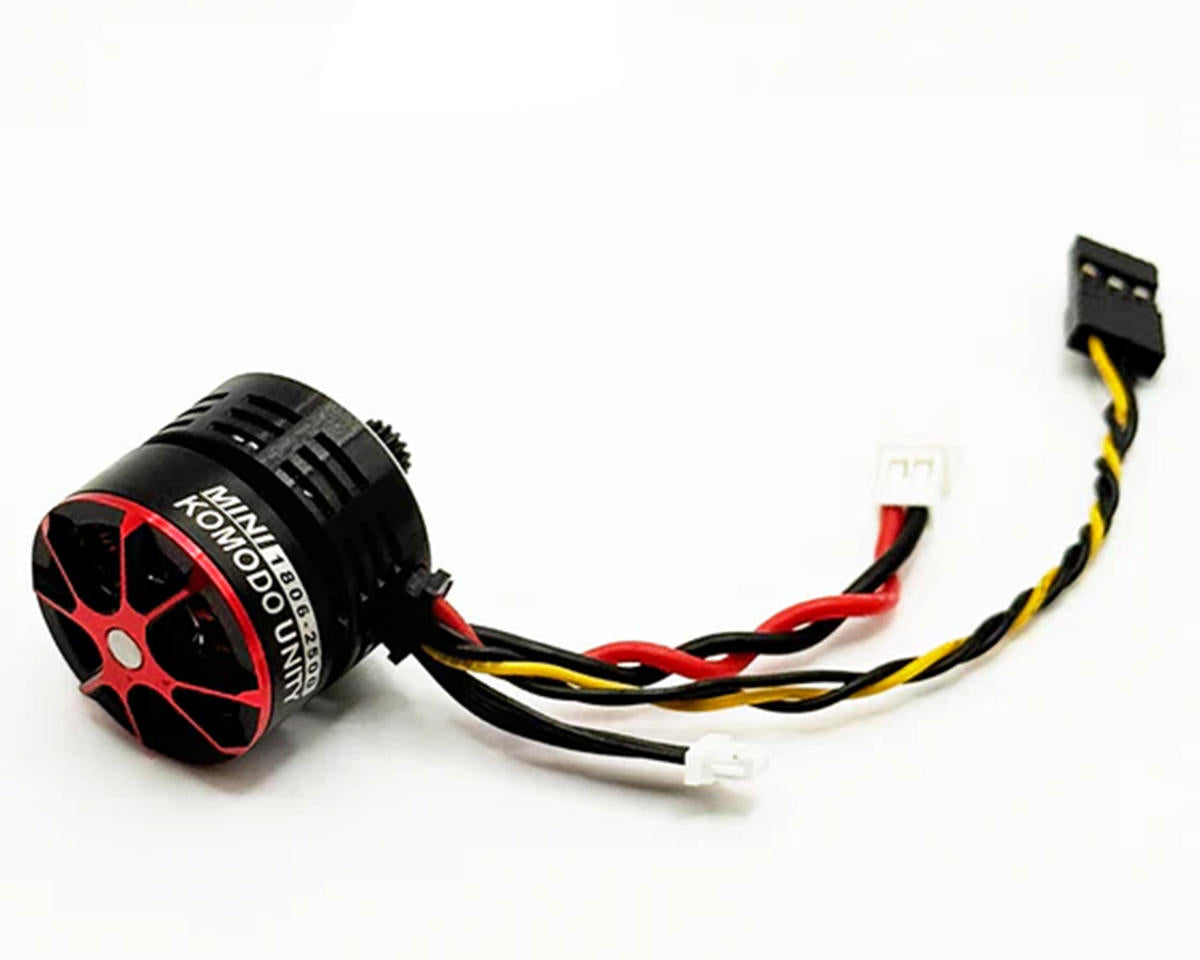

Furitek HPI Venture18 Mini Komodo Unity 2-in-1 Micro FOC Brushless System

The Furitek Mini Komodo Unity combines a 2500kV brushless outrunner motor and ESC in one compact system for micro rock crawlers. It is optimized for the HPI Venture18 platform and uses FOC technology for smooth low-speed throttle control.

The integrated design reduces wiring complexity and includes a built-in 5A BEC with adjustable 5.5V or 7.4V output. The system supports 2-3S LiPo power, Furicar App programming, and wireless tuning through the included Furitek Wireless Module.

Features

• 2-in-1 brushless motor and ESC design
• 2500kV brushless outrunner motor
• FOC technology for ultra-smooth low-speed throttle response
• Optimized for the HPI Venture18 platform
• 30A continuous current and 50A burst current
• Adjustable 5.5V/7.4V BEC output with 5A continuous current
• Supports 2-3S LiPo input voltage
• Compatible with the Furicar mobile tuning app
• Includes mounting hardware

Specifications

• Suggested Application: Micro Rock Crawlers
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 30A
• Burst Current: 50A
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App
• Turn/kV: 2500kV
• Adjustable Timing: No
• Watts: 160
• Diameter: 0.91in (23mm)
• Length: 0.84in (21.3mm)
• Weight: 0.88oz (25.1g)

Includes

• (1) Mini Komodo Unity 2-in-1 Micro FOC Brushless System w/11T Steel Pinion

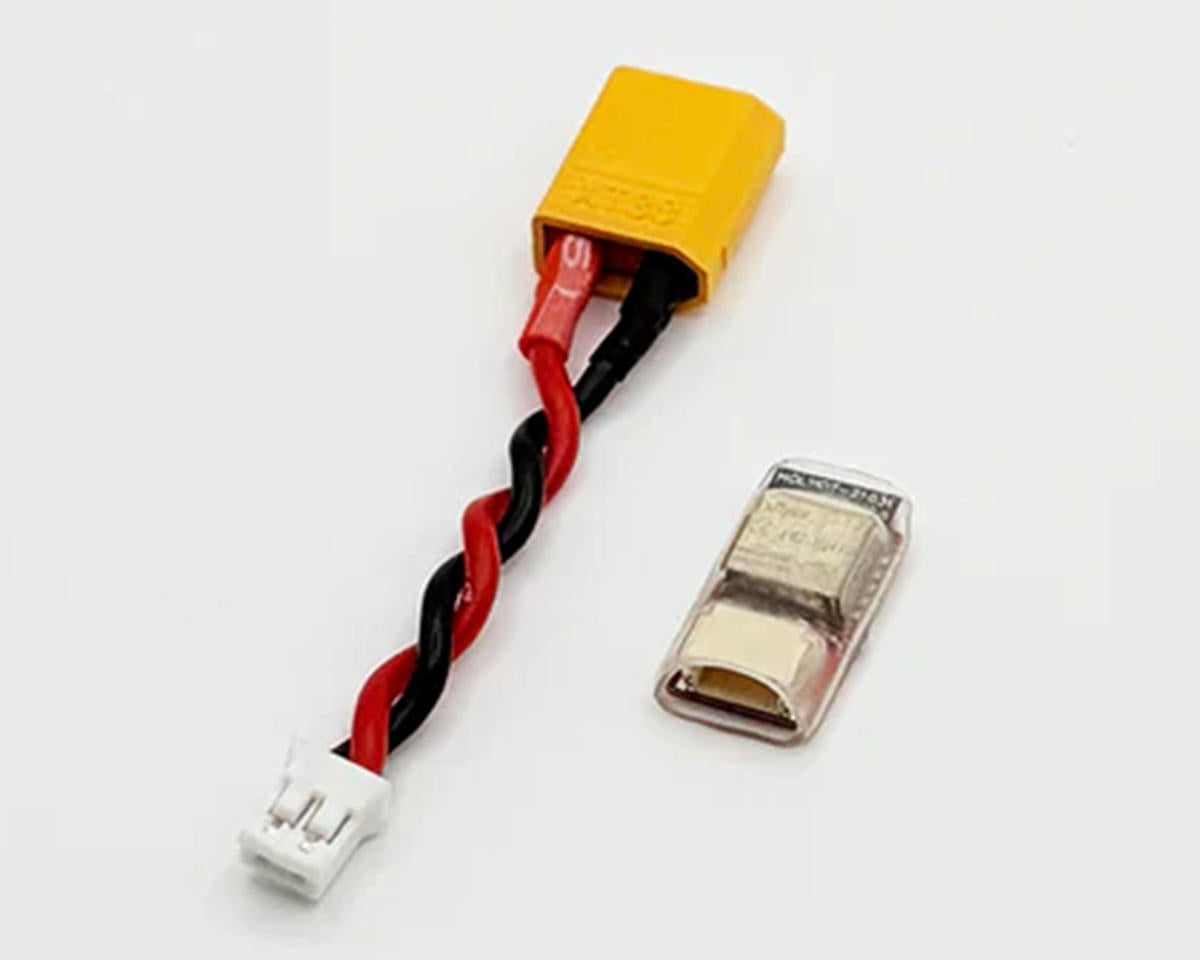

• (1) XT30 Power Adapter Cable
• (1) Furitek Wireless Module
• Product Manual
