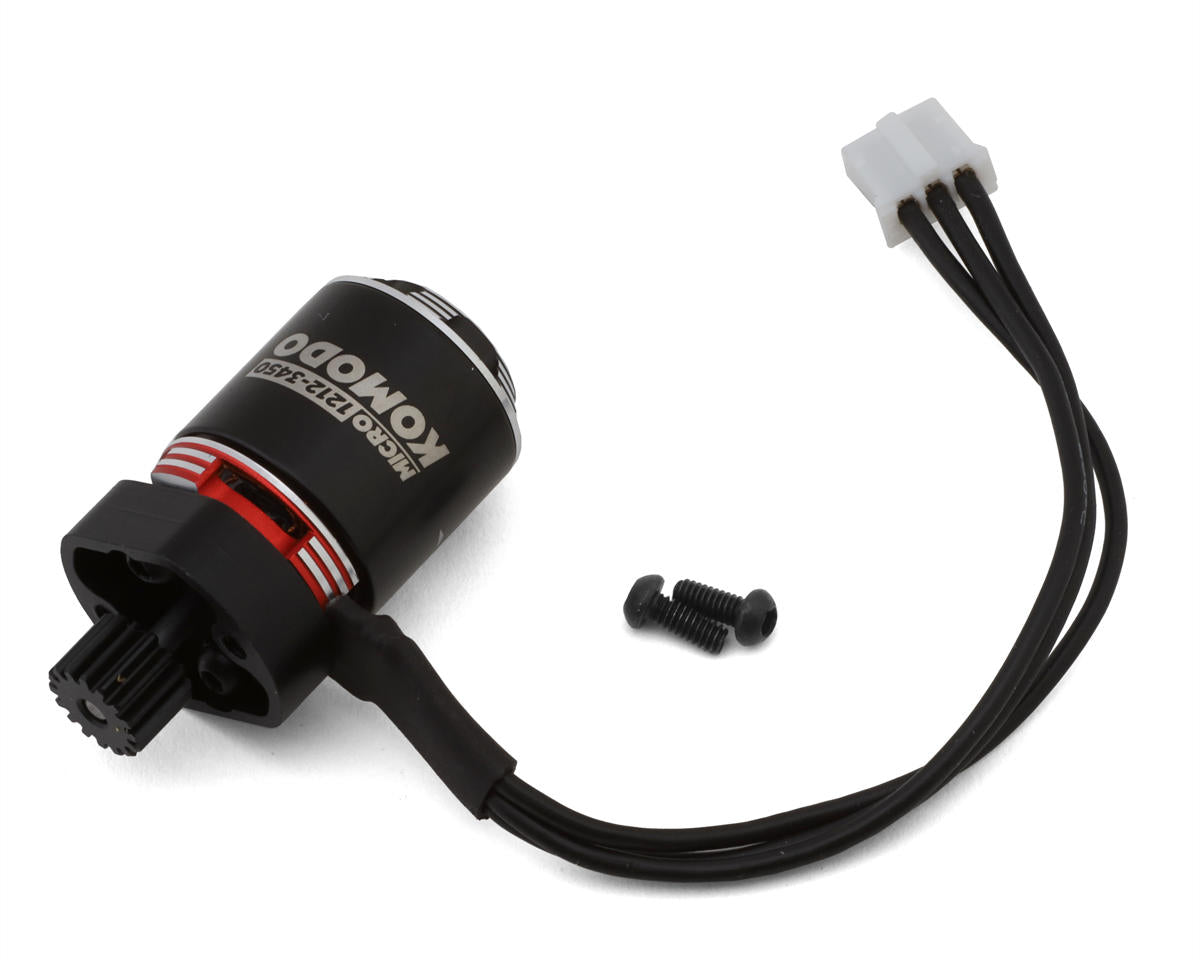

Furitek FMS FCX24 Micro Komodo Brushless Motor w/Steel Pinion Gear (3450kV)

The Furitek FMS FCX24 Micro Komodo Brushless Motor is designed for 1/24 scale builds and features a 12-pole hi-torque design with a precision balanced rotor. It includes a pre-installed steel pinion gear and a CNC machined 6061 T6 billet aluminum heatsink can.

Features

• 12 Pole hi-torque motor design
• Super thin (0.2 mm) stator laminations
• Japanese NMB High RPM ABEC5 bearings
• Precision balanced rotor for best reliability and maximum RPM
• CNC machined 6061 T6 billet aluminum heatsink can
• Precision engineered for maximum energy conversion
• High purity and higher temperature single copper windings
• Excellent heat dissipation for maximum efficiency

Specifications

• kV(RPM/Motor: 3450
• No-load Current: 0.7A @10V
• Watt: 120W
• Input Voltage: 2-3S
• Max Current: 10A
• Slot/Pole: 12
• Motor Size: 15.5x20.6mm
• Shaft Size: 1.5x6mm
• Weight: 17.5g

Includes

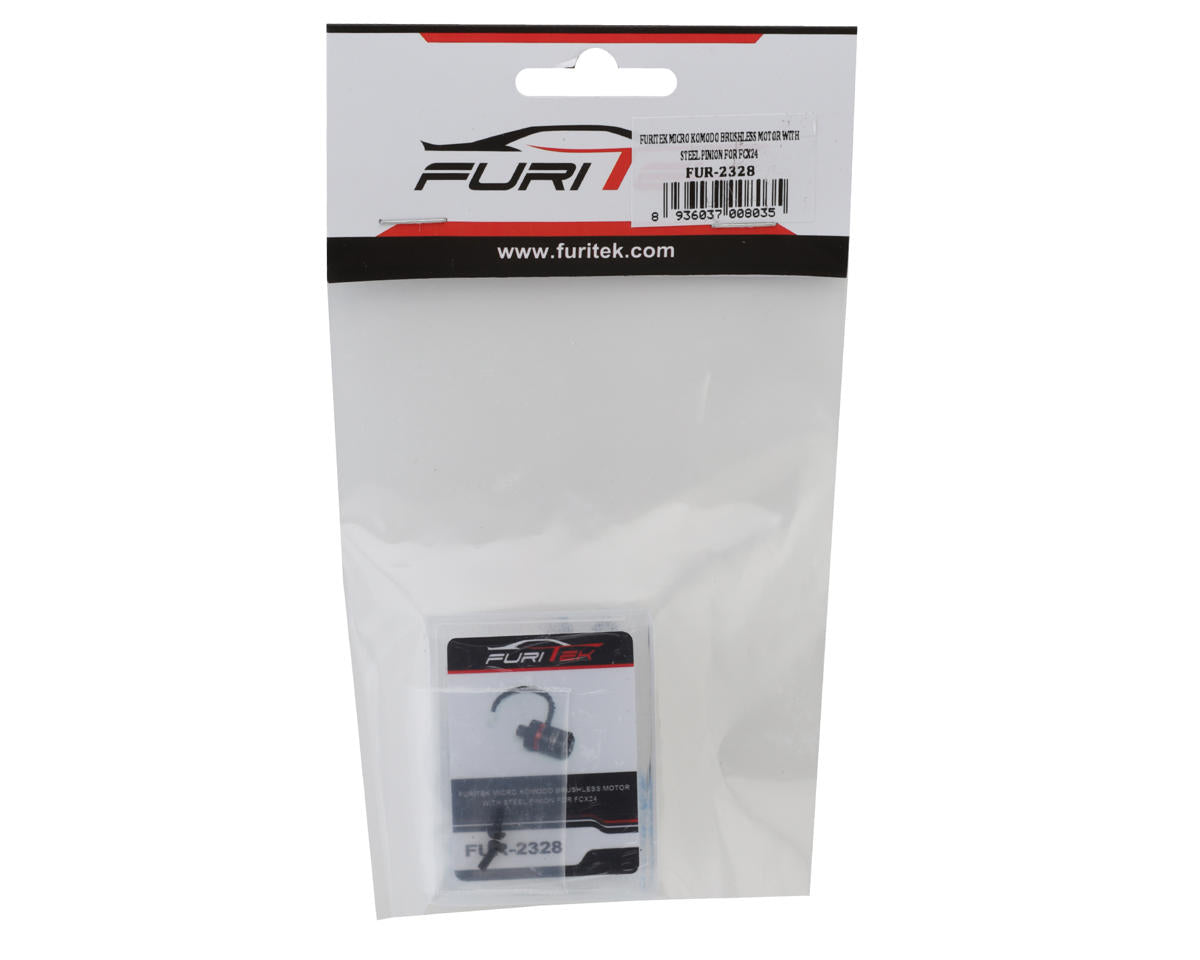

• (1) FMS FCX24 Micro Komodo Brushless Motor 3450kV with pre-installed steel pinion gear
