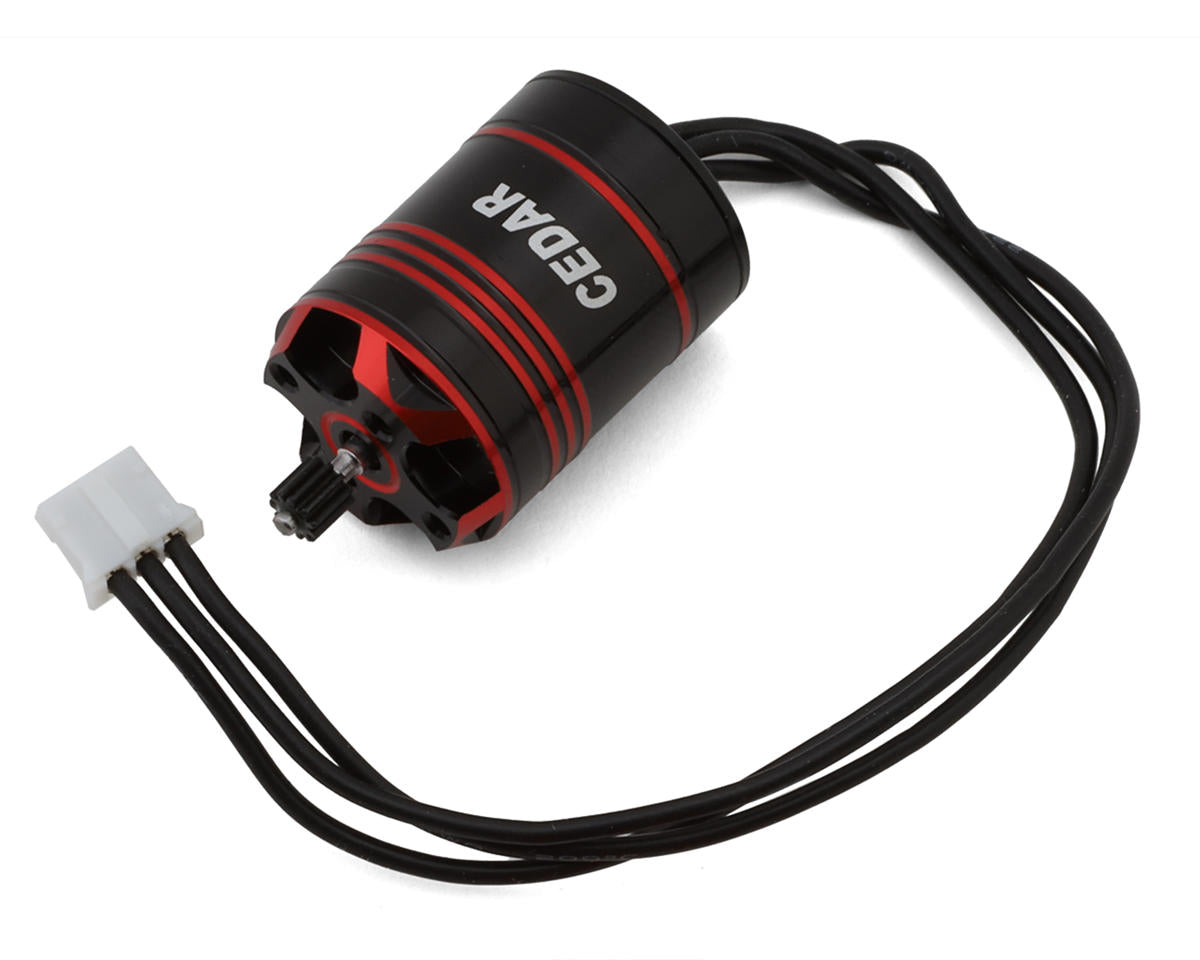

Furitek Cedar Inrunner Brushless Motor w/11T Steel Pinion (SCX24)

The Furitek Cedar Micro Brushless Inrunner Motor is designed as an upgrade for the Axial SCX24 micro crawler. Its sealed can design, compact size, and 12-pole brushless motor are suited to installations where space is limited.

Features

• Perfect fit and upgrade for the Axial SCX24 micro crawler
• CNC machined 6061 T6 billet aluminum heatsink can
• 12-pole inrunner brushless motor
• Water and dustproof design
• Small, compact design for tight spaces
• Super quiet operation with high torque and slow-speed control
• Heat dissipation designed to maximize efficiency
• 0.2mm stator laminations
• Precision-balanced rotor
• Precision-engineered for energy conversion
• Precision steel gears
• High-quality ball bearings

Specifications

• Motor type: Brushless Inrunner
• kV Rating: 3456kV
• Input Voltage: 2S-3S LiPo
• No-load current @10V: 7A
• Slot/Pole: 12-Pole
• Motor size: 18x25mm diameter (0.7"x1")
• Weight: 20g (0.7oz)

Includes

• (1) Furitek Micro Cedar 3456kV Brushless Inrunner Motor
• (1) 11T Brass pinion gear
