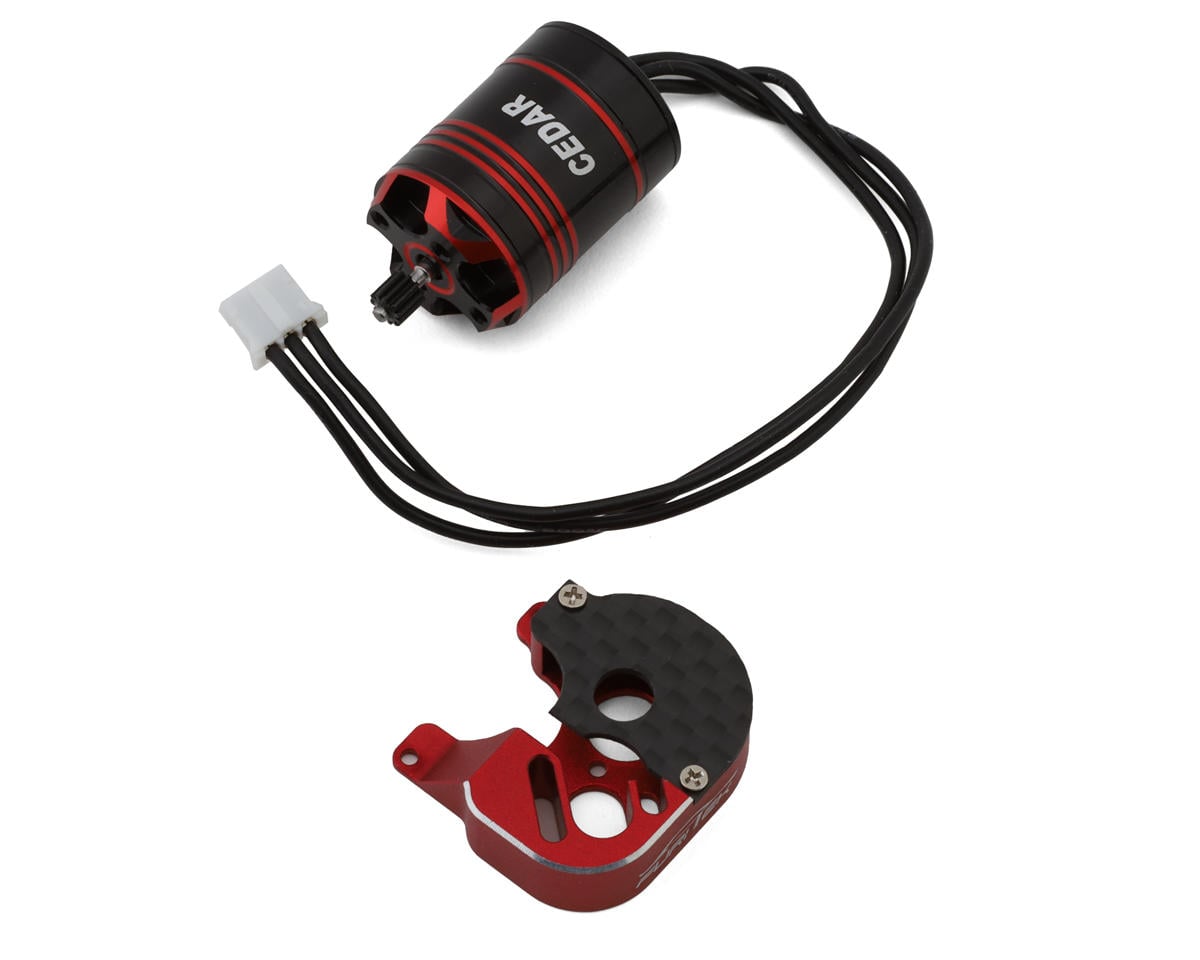

Furitek Cedar Inrunner Brushless Motor w/11T Steel Pinion & Motor Mount (SCX24)

The Furitek Cedar 3456kV brushless inrunner motor is designed as a fit and upgrade for the Axial SCX24 micro crawler. Its compact, water- and dustproof design supports installation in tight spaces, while the included CNC machined motor mount and 11T pinion gear provide a ready drivetrain upgrade.

Features

• CNC machined 6061 T6 billet aluminum heatsink can
• 12-pole inrunner brushless motor
• Water and dustproof design
• Compact form for installation in tight spaces
• High torque and slow-speed operation with additional wheel speed when needed
• 0.2mm stator laminations
• Precision balanced rotor
• Precision steel gears and high quality ball bearings

Specifications

• Motor type: Brushless Inrunner
• kV Rating: 3456kV
• Input Voltage: 2S-3S LiPo
• No-load current @10V: 7A
• Slot/Pole: 12-Pole
• Motor size: 18x25mm diameter (0.7"x1")
• Weight: 20g (0.7oz)

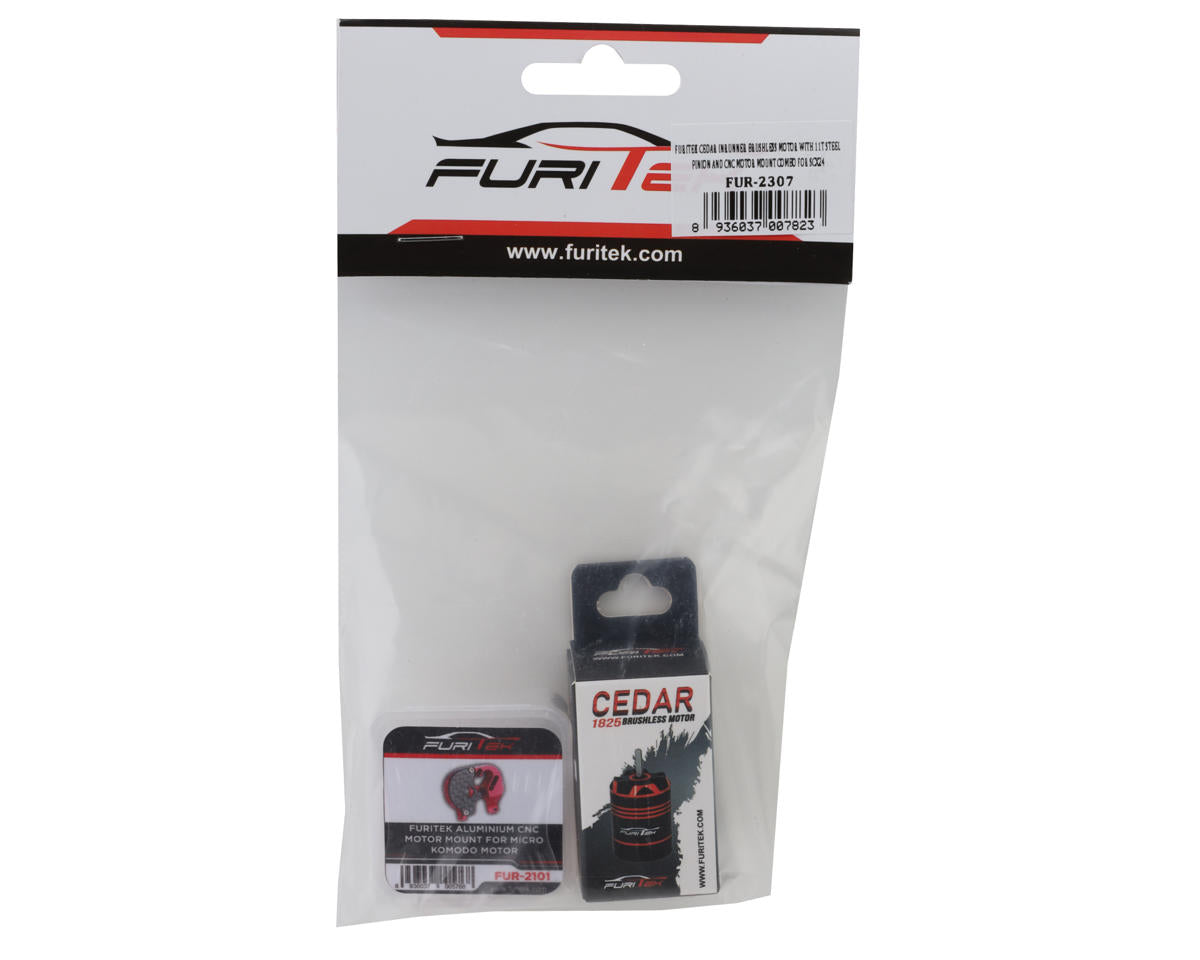

Includes

• Furitek Micro Cedar 3456kV Brushless Inrunner Motor
• CNC Machined motor mount
• 11T pinion gear
