Furitek Axial UTB18 Torpedo Brushless Combo System

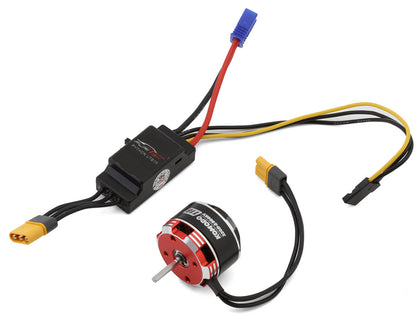

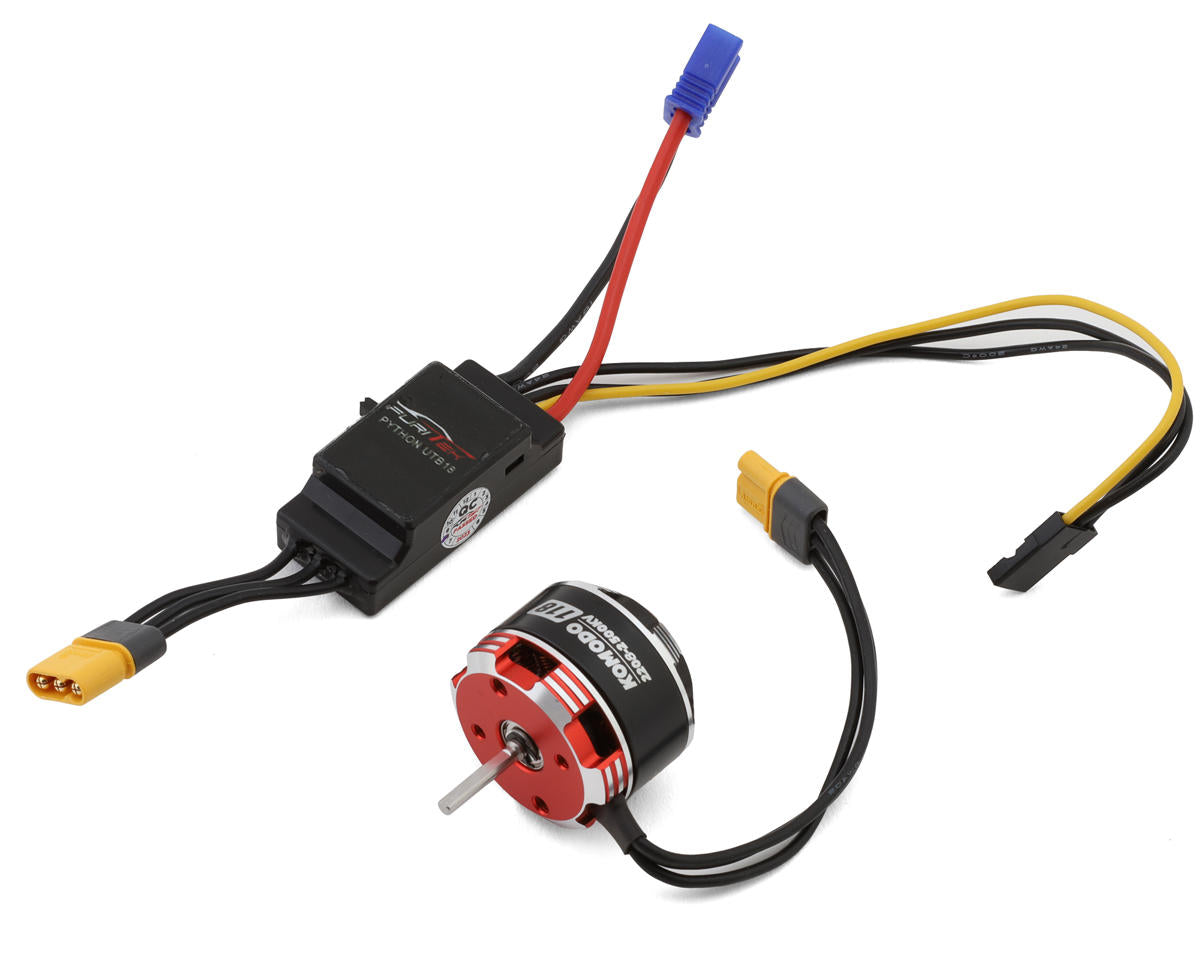

The Furitek Axial UTB18 Torpedo Brushless Combo System combines the Python UTB18 brushless ESC with a Komodo 2208-2500kv brushless motor for an easy drop-in upgrade for UTB18 Capra crawlers.

Python UTB18 ESC Features

• FOC (Field-Orientated control technology)
• Super slow and smooth throttle control
• 5A BEC with selectable 5.5-7.4V output
• Built-in wireless module
• Programming through the Furicar app on Android and iOS
• Live tuning through the Furicar app
• Real-time telemetry up to 10Hz
• 40A continuous current and 70A burst current

Komodo 2208-2500kv Motor Features

• 14 Pole 12 Slot hi-torque motor design
• High purity and higher temperature single copper windings
• CNC machined 6061 T6 billet aluminum heatsink
• Designed for micro crawler applications

Specifications

• Scale: 1/18
• Type: Micro Crawler
• Waterproof: No
• Input Voltage: 2-3S LiPo
• BEC Voltage: 5.5-7.4V @5Amp
• ESC Size (LxWxH): 1.0 x 0.6 x 0.3in (26x15.5x9mm)
• ESC Weight: 0.3oz (8.3g)
• Motor KV: 2500Kv
• Motor Pole: 12S14P
• Motor Resistance: 0.06 Ohm
• Motor No Load Current(@10V): 1.5A
• Motor Size (Diameter x Length): 28x23mm
• Shaft (Diameter x Length): 2.3x14mm
• Motor Weight: 1.3oz (39.5g)

Includes

• Python UTB18 Brushless ESC
• Komodo 2208-2500kv Brushless Motor
