Furitek Axial SCX30 NanoModo 2026 Complete Brushless Control System

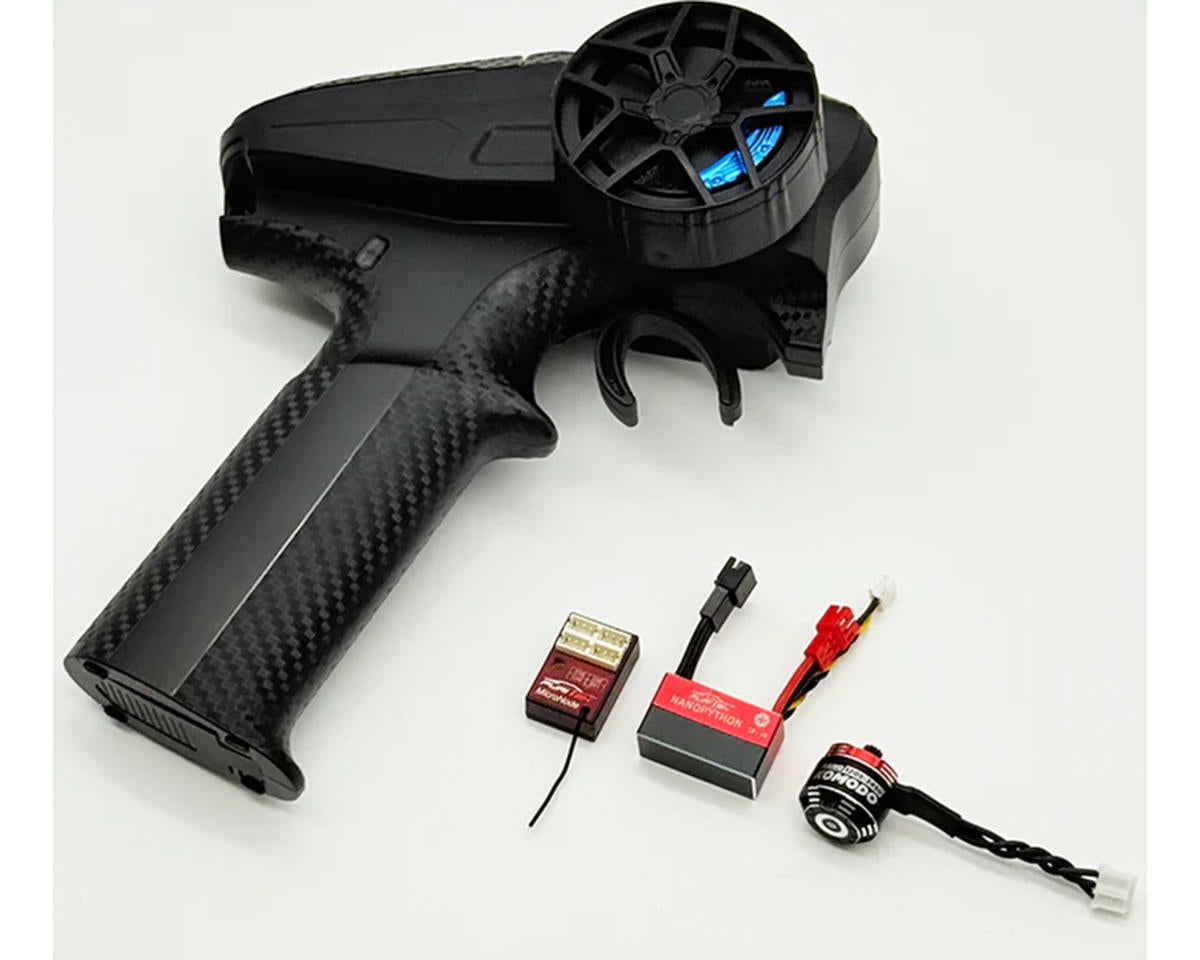

The Furitek NanoModo 2026 is a complete brushless control system for the Axial SCX30. It combines the Nano Python ESC, Nano Komodo brushless motor, and Gripor V2 radio system in one conversion package.

Built-in Bluetooth connectivity enables wireless tuning through the Furicar App, including throttle curves, motor type, ESC settings, telemetry, and firmware updates. Field-Oriented Control (FOC) technology provides smooth throttle response and precise low-speed operation for technical crawling.

The integrated servo controller supports the stock SCX30 servo, while the compact ESC and motor are designed to fit tight chassis spaces. The built-in BEC provides 5.5V/7.4V at 5A, and the 2.4GHz Gripor V2 system offers programmable control through its 4-channel transmitter and receiver.

Features

• Complete brushless system for Axial SCX30
• Nano Python ESC, Nano Komodo motor, and Gripor V2 radio system
• Wireless tuning through the Furicar App
• Integrated servo controller supports the stock servo
• FOC technology for smooth throttle response
• Compact ESC and motor design
• 12-pole 3800KV brushless motor
• Built-in BEC outputs 5.5V/7.4V at 5A
• 2.4GHz Gripor V2 transmitter with programmable control
• Plug-and-play installation with no modifications needed

Specifications

• ESC motor type: Brushed/Brushless (Switchable via App)
• ESC input voltage: 2-3S (7.4-11.1V) LiPo
• ESC continuous current: 20A
• ESC burst current: 50A
• ESC BEC voltage: 5.5V/7.4V
• ESC BEC continuous current: 5A
• Battery connector: Ph2
• Programming: Furicar App
• Motor type: Brushless - Sensored
• Motor kV rating: 3800
• Motor voltage: 2-3S (7.4-11.1V) LiPo
• Adjustable timing: No
• Shaft length: 0.236in (6mm)
• Shaft diameter: 0.059in (1.5mm)
• Transmitter input voltage: AA Batteries
• Frequency: 2.4GHz
• Channels: 4

Includes

• (1) Nano Python Brushless ESC
• (1) Nano Komodo Brushless Motor
• (1) Gripor V2 Transmitter & 4-Channel Receiver

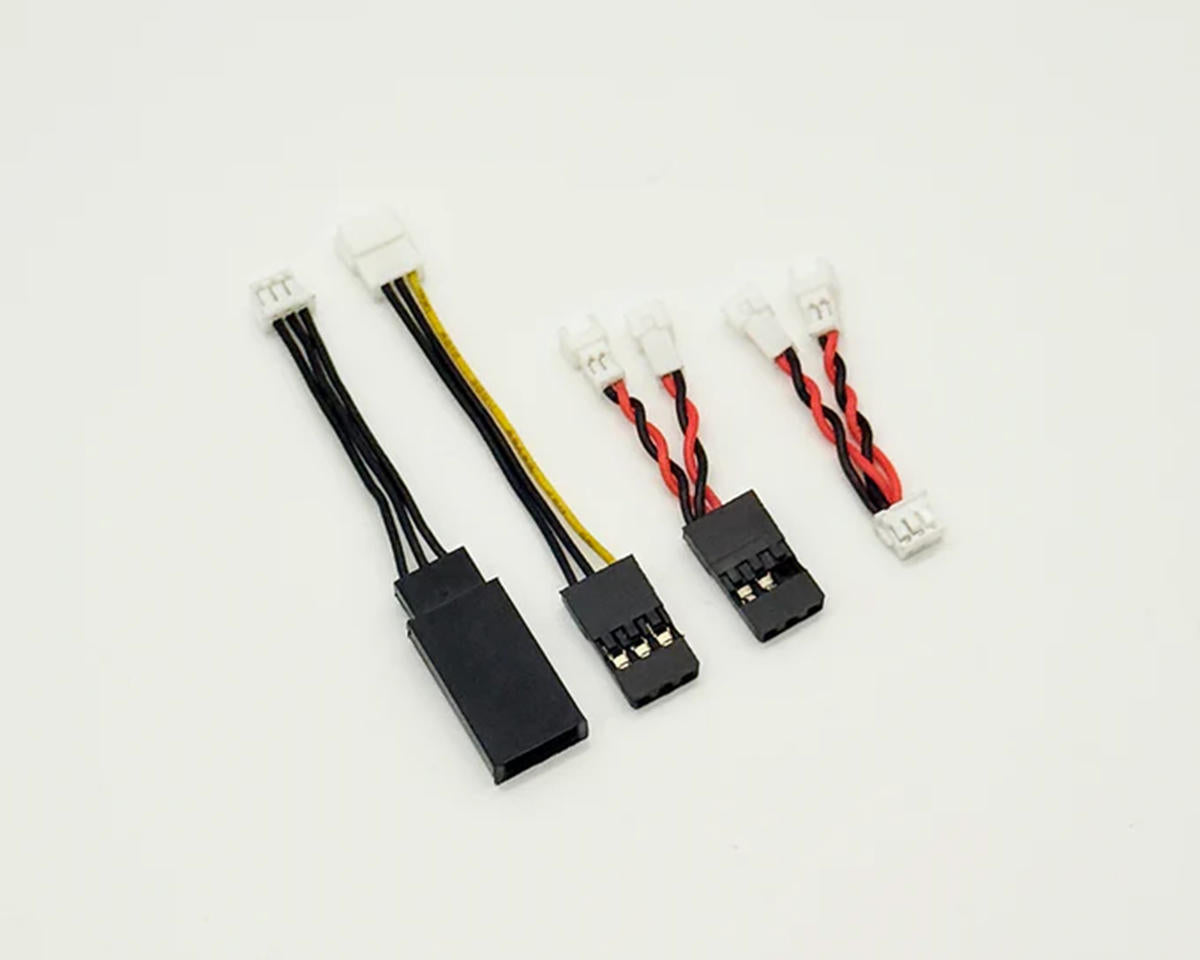

• (1) Servo Adapter
