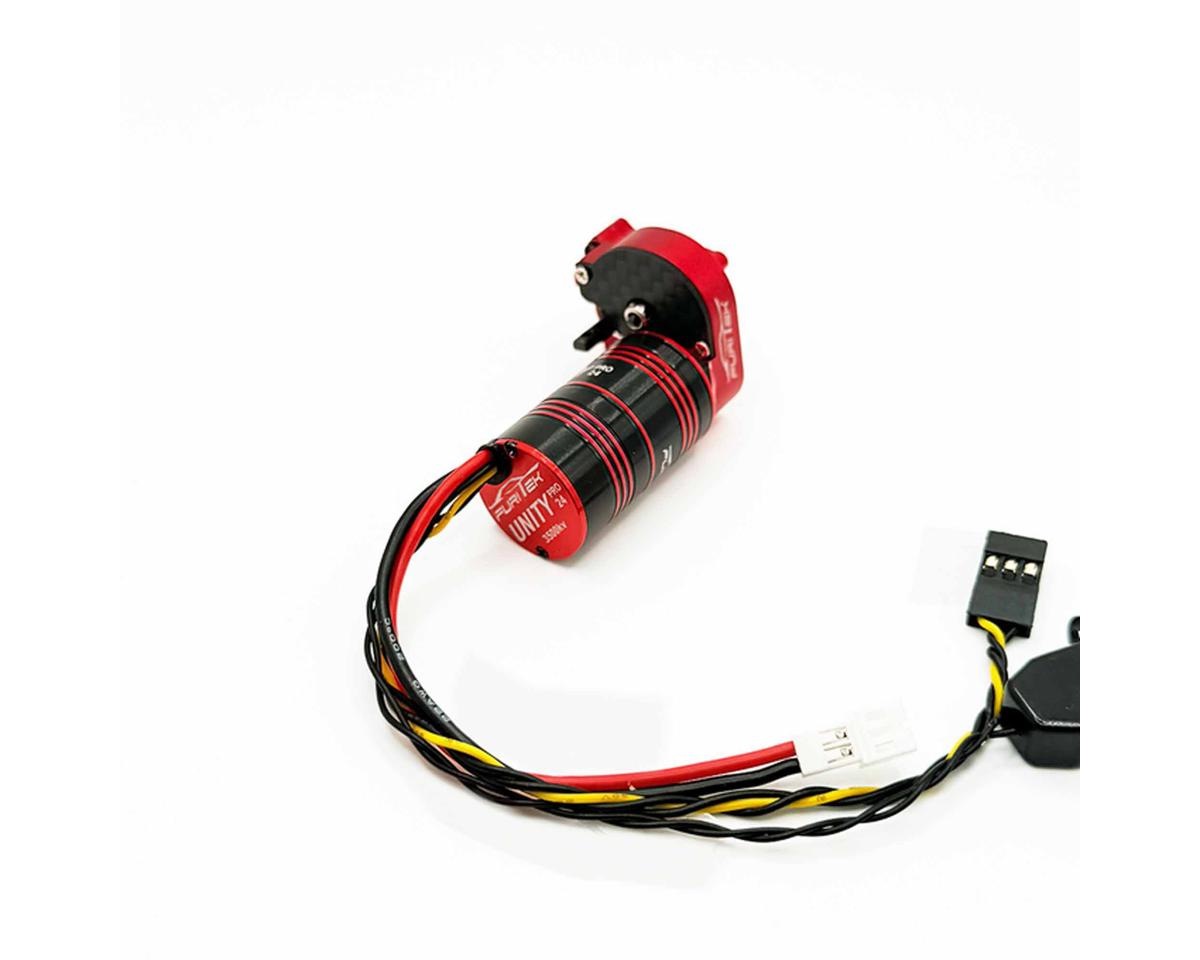

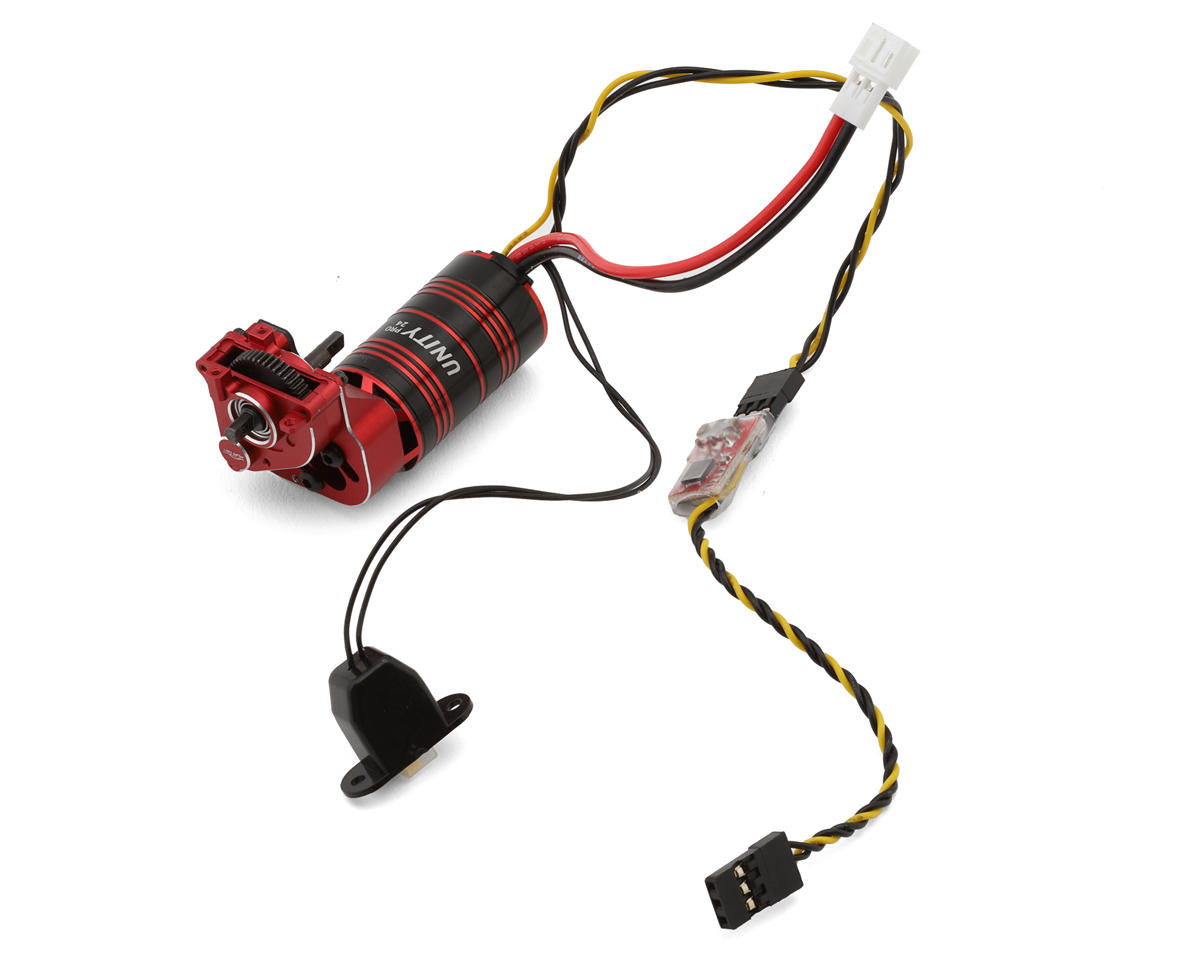

Furitek Axial® SCX24 Unity24 PRO 2-in-1 Micro FOC Brushless System (3500kV)

The Furitek Unity24 PRO 2-in-1 Micro FOC Brushless System combines a 3500kV brushless Inrunner motor with an integrated ESC and a pre-assembled CNC-machined Mini Stellar Transmission. Designed for micro rock crawlers and optimized for the Axial® SCX24 platform, this compact system simplifies wiring while providing smooth low-speed throttle response.

Features

• Integrated ESC and brushless Inrunner motor reduce wiring complexity
• FOC technology supports ultra-smooth low-speed throttle response
• 3500kV motor with high torque output for technical crawling
• Compact design enhances chassis airflow
• Mini Stellar Transmission features improved gear efficiency
• Built-in adjustable 5A BEC with 5.5V or 7.4V output
• Supports 2-3S LiPo power systems
• Compatible with the Furicar mobile tuning app
• Includes mounting hardware for installation

Specifications

• Suggested Application: Micro Rock Crawlers
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo
• Continuous Current: 30A
• Burst Current: 50A
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: PH 2.0
• Programming: Furicar App
• Turn/kV: 3500kV
• Adjustable Timing: No
• Watts: 160
• Diameter: 0.91in (23mm)
• Length (w/Integrated ESC): 0.84in (21.3mm)

Includes

• (1) Unity24 PRO 2-in-1 Micro FOC Brushless System
• (1) Pre-Assembled Mini Stellar Transmission

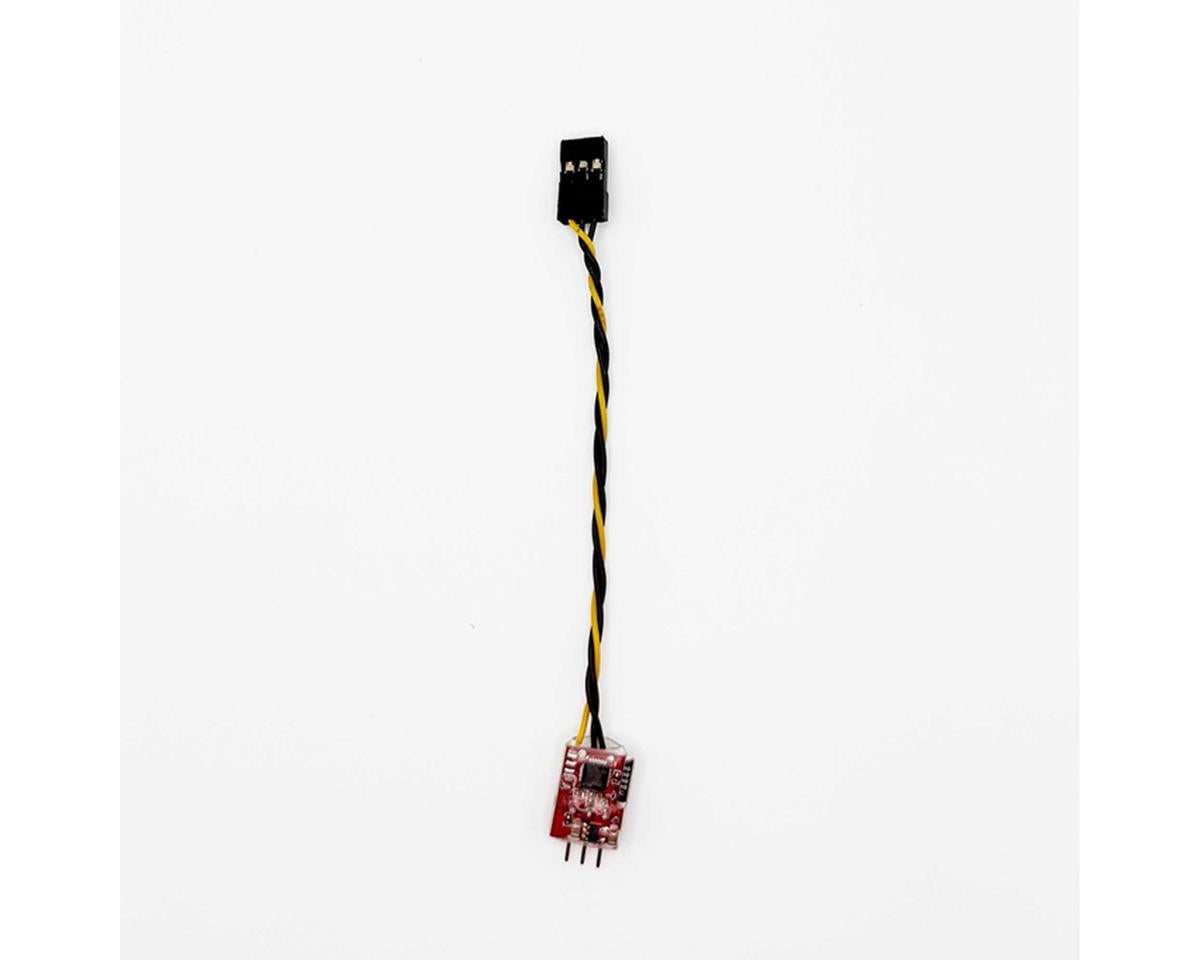

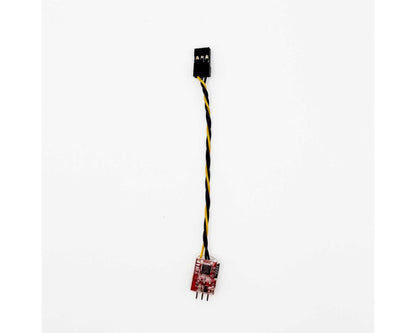

• (1) Furitek Wireless Module
• Product Manual
