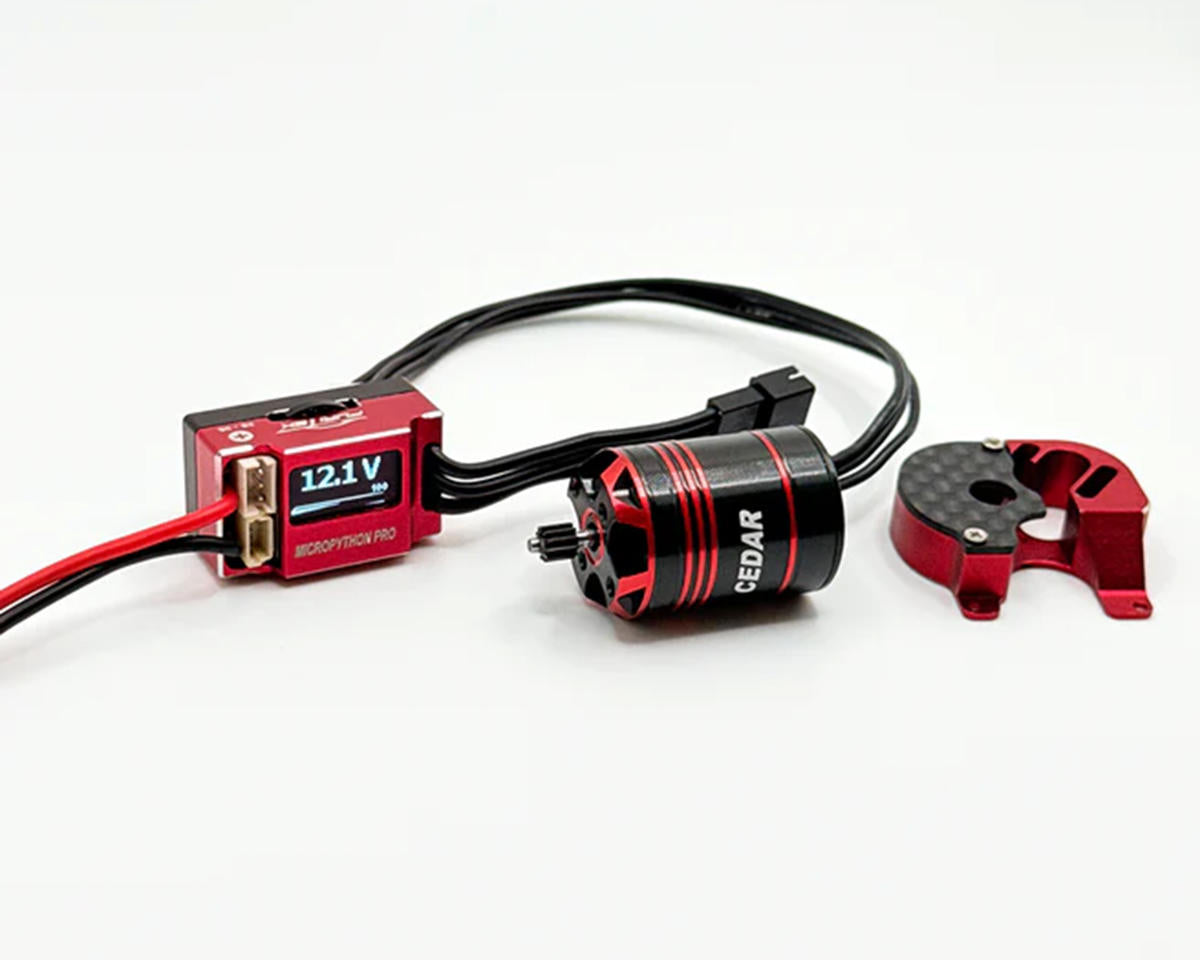

Furitek Axial® SCX24 ShadowCore 2025 MicroPython Pro OLED Brushless Power

The Furitek ShadowCore 2025 MicroPython Pro OLED Brushless Power System combines a MicroPython Pro OLED ESC with a Cedar 1825 Inrunner Brushless Motor for 1/18 and 1/24 rock crawlers, including Axial® SCX24 platforms.

The ESC features an integrated OLED display for direct setup and telemetry without a phone. Settings can also be managed through the Furicar App. Advanced FOC motor control, a 5A BEC, and a compact layout with upward wire orientation support clean installations and precise low-speed control.

The Cedar 1825 motor uses a 12-pole design, high-torque operation, and smooth startup. Its dustproof and water-resistant aluminum housing is suited to trail use and technical crawling.

Features

• Cedar 1825 Inrunner Motor with high torque and smooth startup
• 12-pole design for precise low-speed crawling
• Dustproof and water-resistant aluminum motor housing
• Integrated OLED screen for ESC setup and telemetry
• Direct on-device configuration with no phone required
• Optional app control via the Furicar App
• Advanced FOC motor control
• 5A BEC supports high-torque micro servos
• Compact ESC layout with upward wire orientation
• Real-time telemetry display with battery voltage, throttle percentage, and more

Specifications

• ESC Application: 1/18 & 1/24 Rock Crawlers
• Motor Type: Brushed/Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 25A
• Burst Current: 50A
• ESC Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• BEC Voltage: 5.5/7.4V (Adjustable)
• BEC Continuous Current: 5A
• Motor Connector: 3 Pin
• Battery Connector: JST
• Programming: Onboard OLED Display or Furicar App
• Motor Suggested Application: 1/18 & 1/24 Rock Crawlers
• Motor Type: Brushless
• Turn/kV: 3456kV
• Adjustable Timing: No
• Motor Connector: 3 Pin
• Motor Dimensions: 0.71x0.98in (18x25mm)
• Motor Weight: 0.71oz (20g)

Includes

• (1) MicroPython Pro OLED Brushed/Brushless ESC w/JST Connector
• (1) Cedar 1825 Inrunner Brushless Motor w/11T Steel Pinion Gear
• (1) Aluminum Motor Mount
• (1) Wireless Module
• Mounting Hardware
• Product Manual
