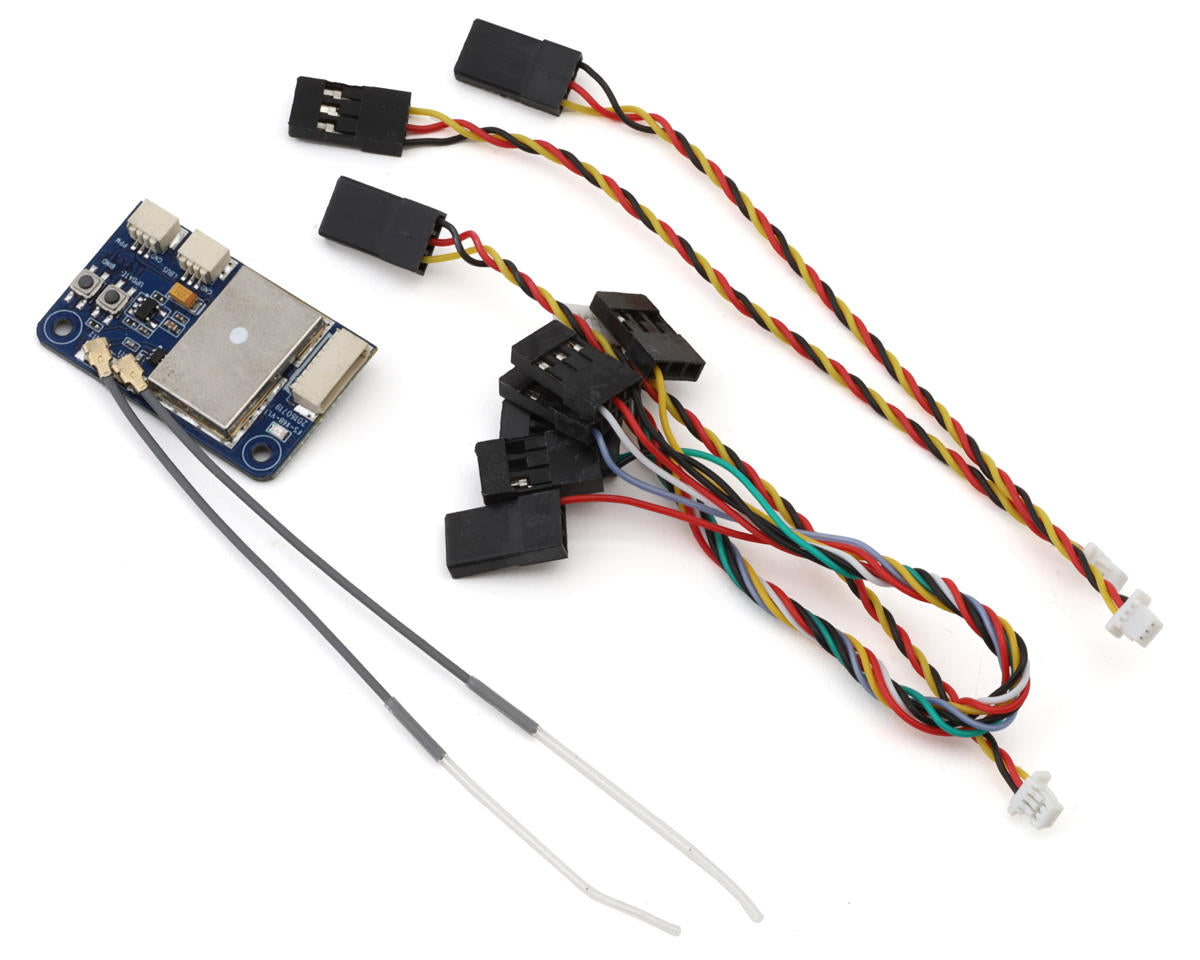

Flysky X6B FPV AFHDS 2A 6-Channel Air Receiver

The Flysky X6B FPV AFHDS 2A 6-Channel Air Receiver is a compact receiver for multirotor and FPV drone applications. It operates at 2.4GHz using the AFHDS 2A protocol and features dual antennas, six channels, and PWM/PPM/i-BUS/S.BUS data output.

Features

• 6-channel receiver
• 2.4GHz frequency
• AFHDS 2A protocol
• Dual antennas
• Compact design for small frames
• 500-1500m range

Specifications

• Channels: 6
• Frequency: 2.4GHz
• Protocol: AFHDS 2A
• Range: 500-1500m
• Data Output: PWM/PPM/i-BUS/S.BUS
• Input Power: 4.0-8.4V
• Dimensions: 1.42x0.87x0.30in (36x22x7.5mm)
• Weight: 0.16oz (4.5g)

Includes

• (1) X6B FPV AFHDS 2A 6-Channel Air Receiver
• Product Manual
