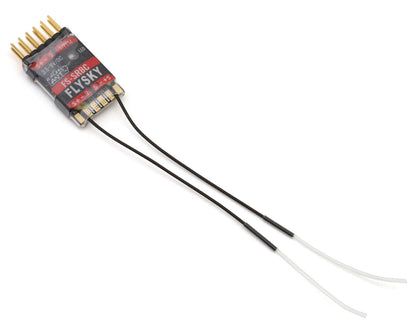

Flysky SR8C Mini ANT 2.4GHz 8-Channel Air Receiver

The Flysky SR8C Mini ANT 2.4GHz 8-Channel Air Receiver provides a compact receiver solution with four PWM channels pre-installed and support for up to eight channels. Its dual antennas support reliable 2.4GHz signal reception, while multiple output formats provide flexible installation options for compatible models.

Features

• Compact design for tight installations
• ANT protocol delivers fast response and high stability
• Four pre-installed channels with support for up to eight channels
• Dual antennas for strong and reliable 2.4GHz signal
• Supports PWM, PPM, i-BUS, and S.BUS data output
• Optional channels can be activated by soldering on the included pins

Specifications

• Channels: 8 (4 Pre-Installed)
• Frequency: 2.4GHz
• Protocol: AFHDS 3
• Range: -
• Data Output: PWM/PPM/i-BUS/S.BUS
• Input Power: 3.5-9V
• Dimensions: 0.87x0.59x0.12in (22x15x3mm)
• Weight: 0.04oz (1g)

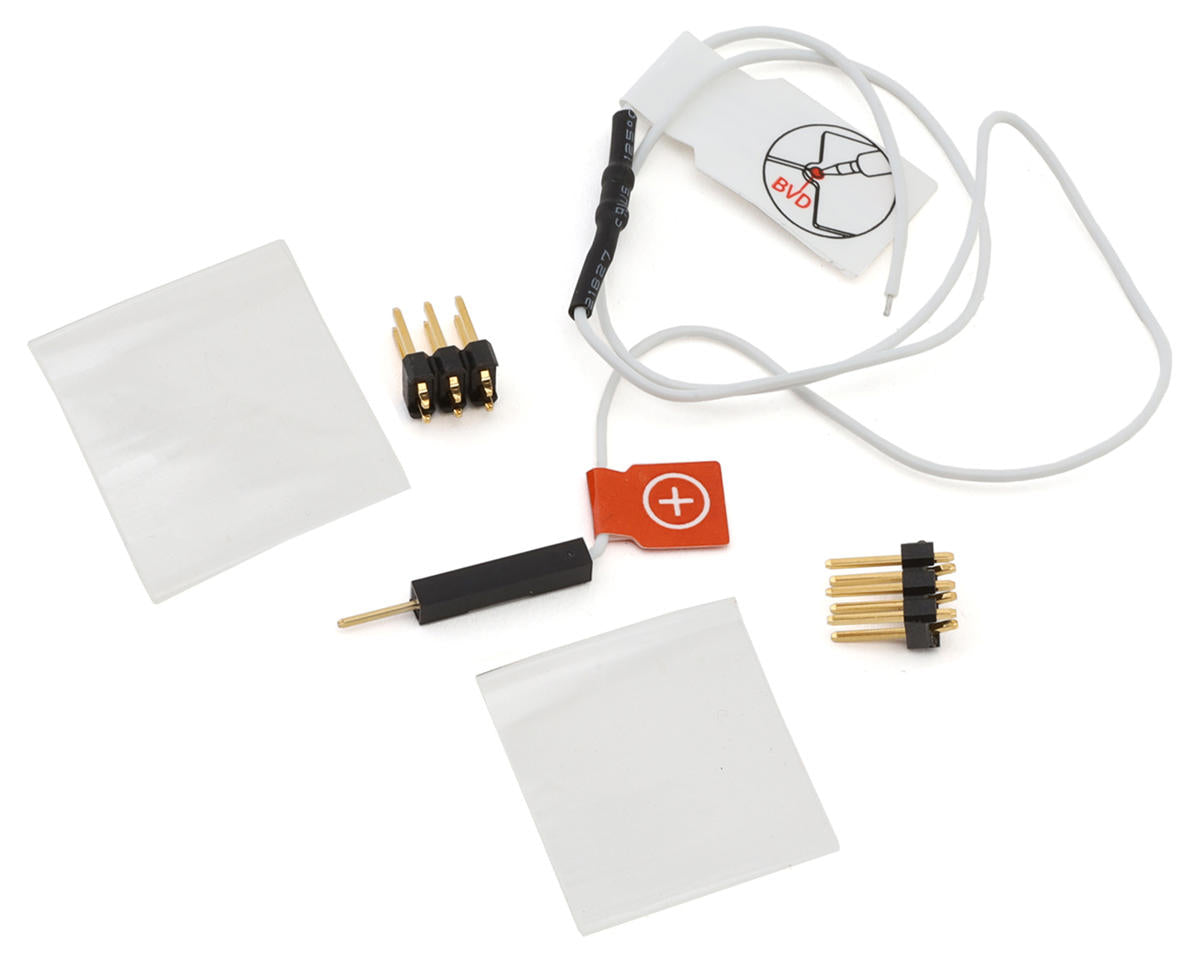

Included

• (1) SR8C Mini ANT 2.4GHz 8-Channel Air Receiver
• (1) Wiring Harness
• (2) Additional Pin Headers
• (2) Heat Shrink Tubes
• Product Manual
