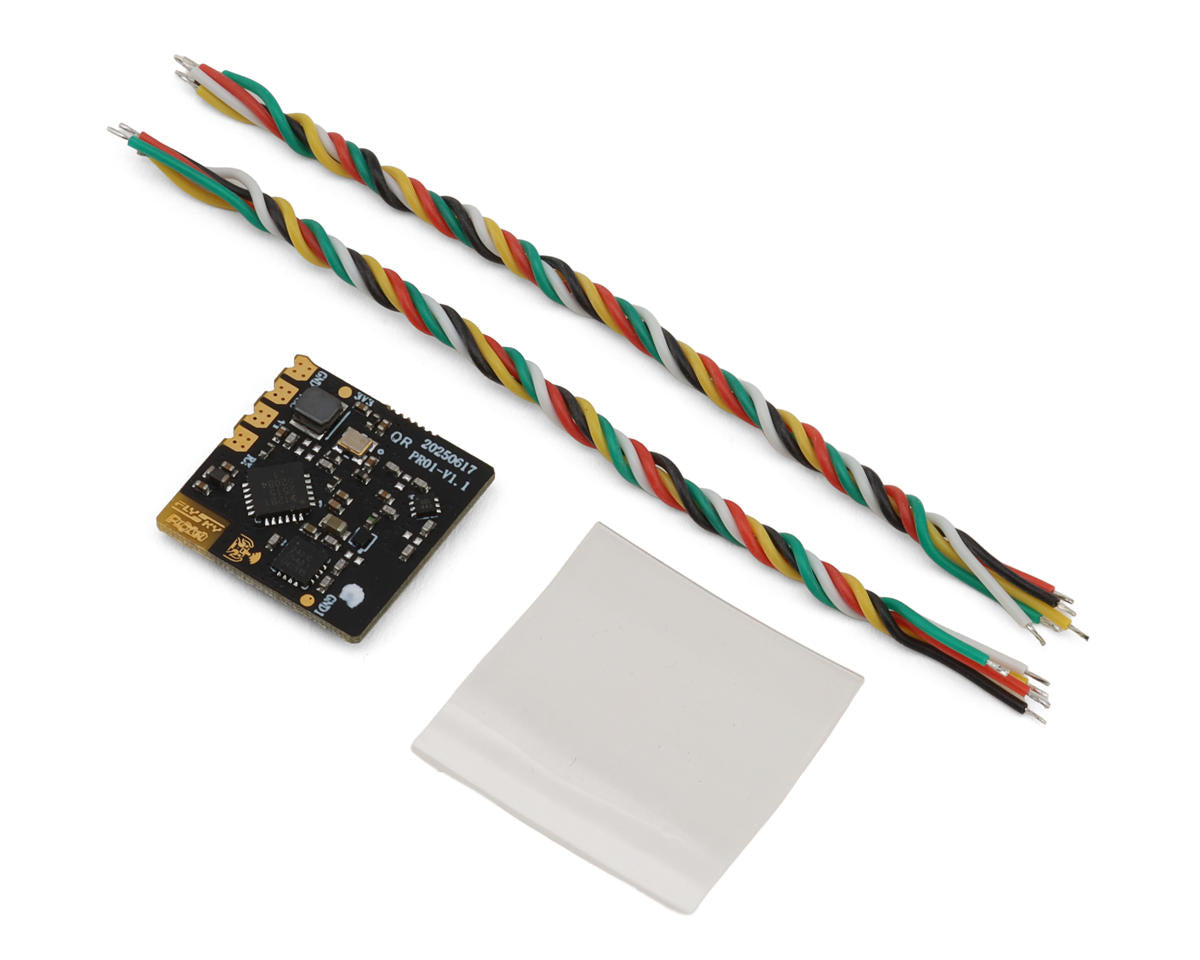

Flysky PR01 Micro ELRS 2.4GHz 16-Channel Receiver

The Flysky PR01 Micro ELRS 2.4GHz 16-Channel Receiver is a compact receiver for FPV drones, fixed-wing aircraft, gliders, helicopters, boats, and micro RC cars. It supports the ELRS protocol, provides 16 channels, and offers CRSF and S.BUS data output.

Dual ceramic antennas with antenna diversity help maintain the signal link, while bidirectional communication supports telemetry feedback. A temperature-compensated crystal oscillator provides stable operation across changing conditions.

Features

• Supports the ELRS protocol
• Provides sixteen control channels
• Uses dual ceramic antennas with antenna diversity
• Offers CRSF and S.BUS output options
• Includes bidirectional communication for telemetry
• Features a temperature-compensated crystal oscillator

Specifications

• Channels: 16
• Frequency: 2.4GHz
• Protocol: ELRS
• Range: -
• Data Output: CRSF/S.BUS
• Input Power: 4.5-9.0V
• Dimensions: 0.71x0.71x0.15in (18x18x3.7mm)
• Weight: 0.04oz (1.2g)

Includes

• (1) PR01 Micro ELRS 2.4GHz 16-Channel Receiver
