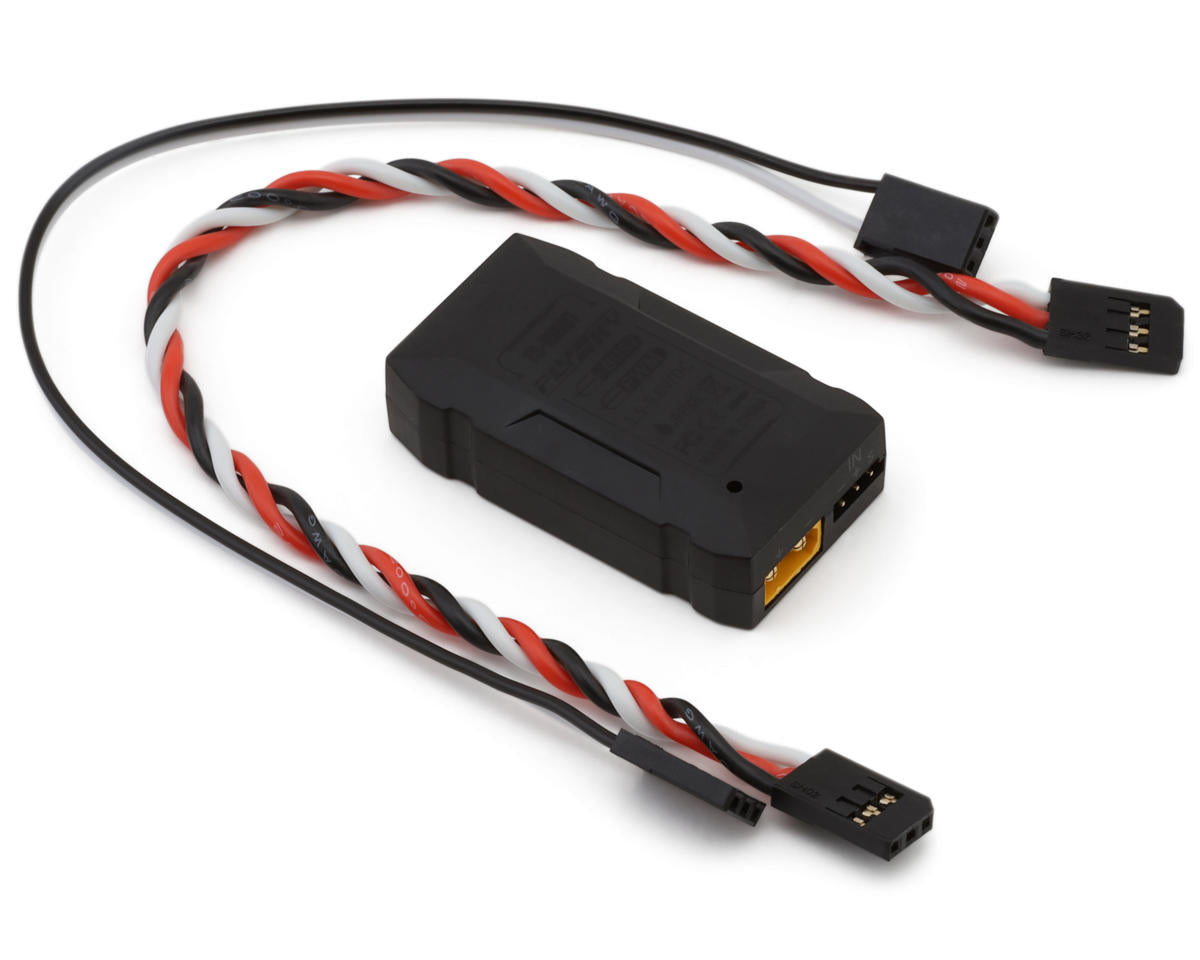

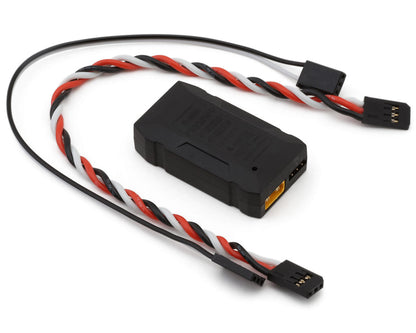

Flysky FS-iBH07 iBus2 Hub

The Flysky FS-iBH07 iBus2 Hub expands an RC system with connectivity for up to 7 channels. It supports i-BUS2 signal output and provides both PWM and i-BUS2 outputs for flexible system integration.

Designed for use with aircraft, cars, boats, and robots, the FS-iBH07 accepts 3.5-9.0V input and draws 15mA at 5V. Its compact design is water-resistant with a PPX6 rating and operates from -10°C to +60°C.

Features

• Supports i-BUS2 signal output
• 7 available channels
• Input voltage: 3.5-9.0V DC
• Current draw: 15mA at 5V
• Provides PWM and i-BUS2 outputs
• Compatible with aircraft, cars, boats, and robots
• Operating temperature: -10°C to +60°C
• Water-resistant with PPX6 rating

Specifications

• Channels: 7
• Input Voltage: 3.5-9.0V
• Protocol: i.bus
• Dimensions: 1.83x1.03x0.50in (46.5x26.2x12.6mm)
• Weight: 0.40oz (11.2g)

Includes

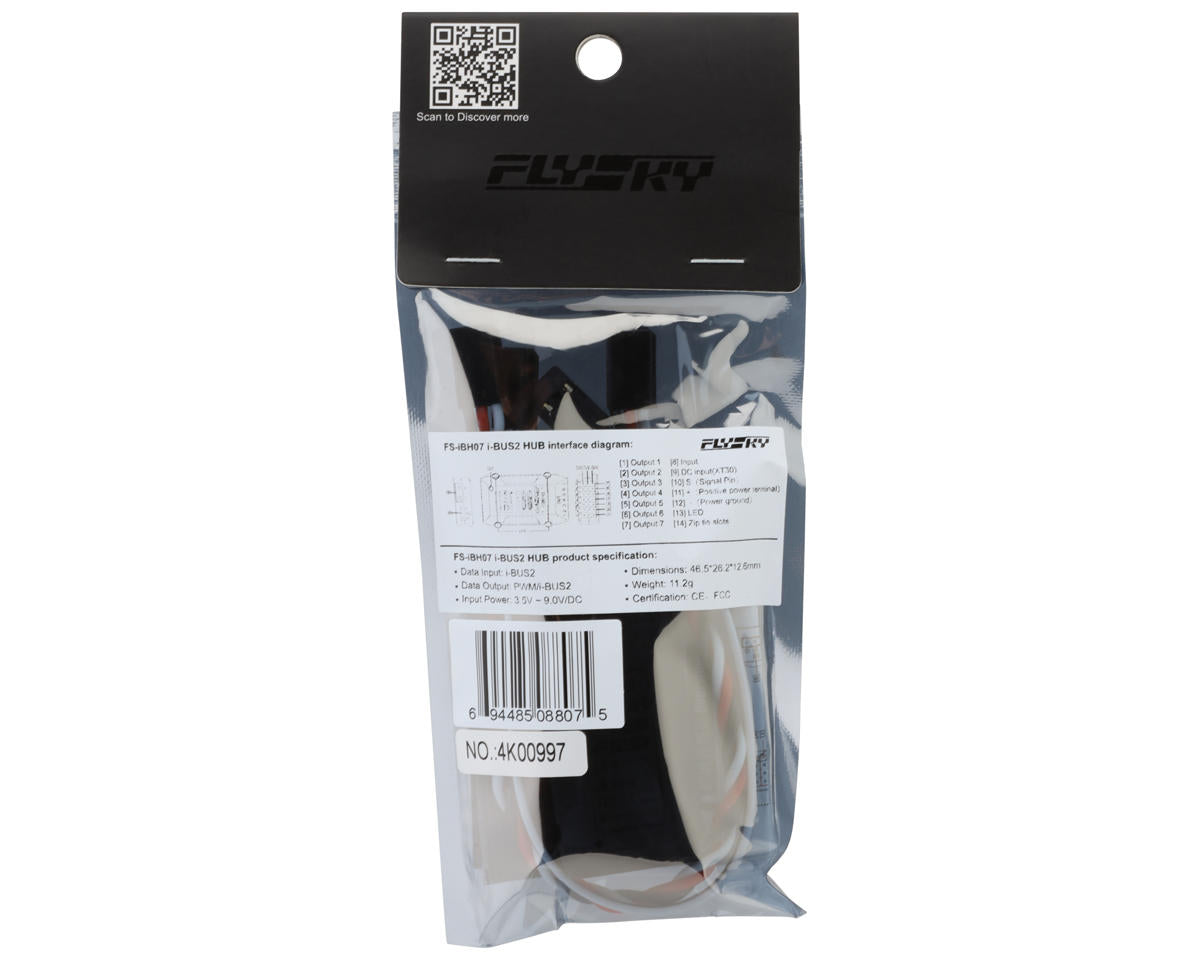

• (1) FS-iBH07 iBus2 Hub
• Wiring Accessories
