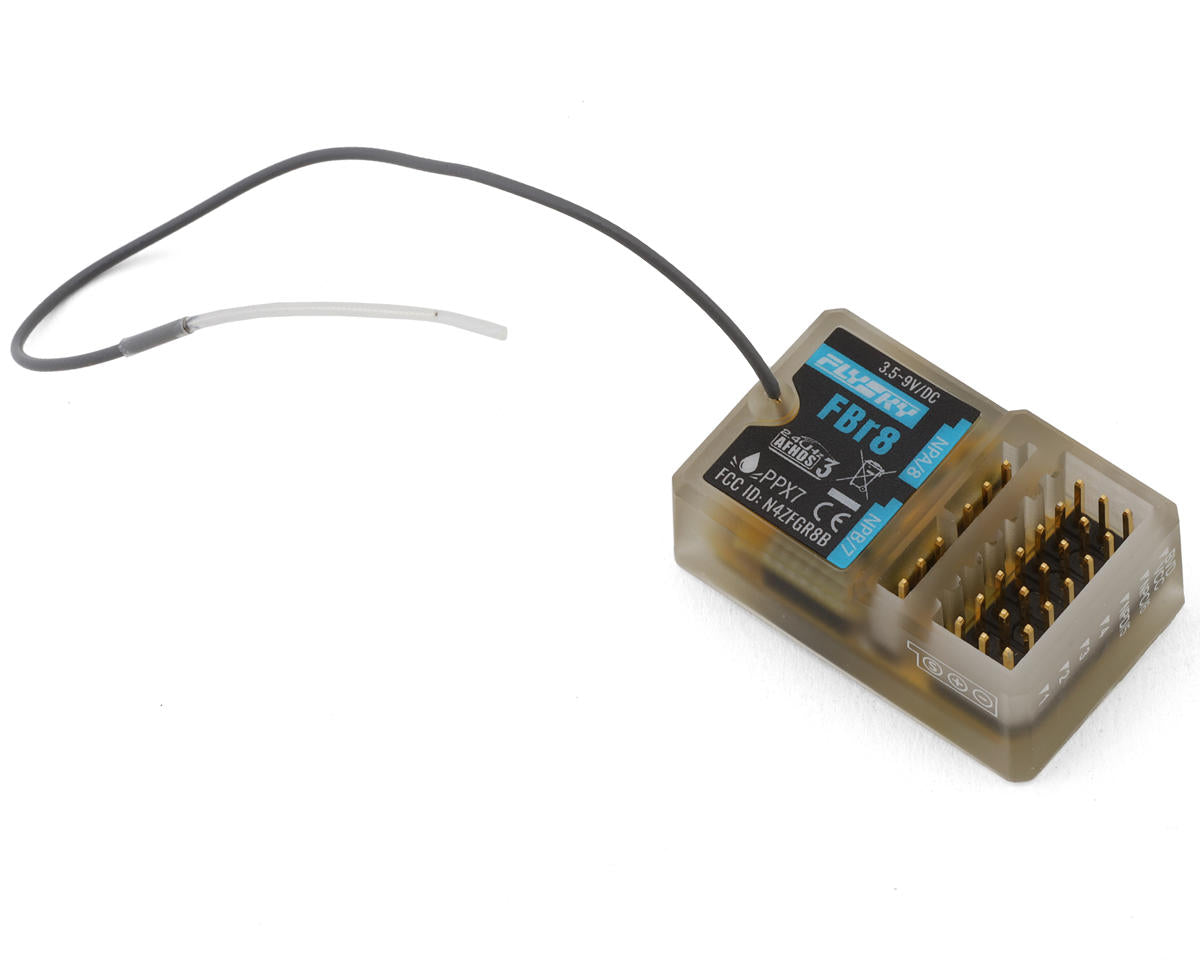

Flysky FBr8 Waterproof 8-Channel Receiver (Short Antenna)

The Flysky FBr8 is an 8-channel receiver for surface applications using the AFHDS 3 protocol. It supports bi-directional and unidirectional transmission and features a single external antenna, Newport function interfaces, and built-in BVD battery voltage detection.

Features

• Eight-channel receiver designed for AFHDS 3 protocol systems
• Waterproof level PPX7
• Supports bi-directional and unidirectional transmission
• Single external antenna
• Newport function interfaces for customized input/output signals
• Built-in BVD battery voltage detection

Specifications

• Application: Surface
• PWM Channels: 8
• RF Protocol: AFHDS 3
• Input Power: 3.5-9V/DC
• Working Current: 50mA/5V
• Resolution: 4096
• Waterproof: PPX7
• Dimensions: 1.45x0.90x0.51in (37x23x13mm)

Includes

• (1) FBr8 8-Channel Receiver
