Exotek TLR 22 "Vader" 22 Drag Race Chassis Conversion

The Exotek TLR 22 "Vader" 22 Drag Race Chassis Conversion converts a Losi 22 3.0, 4.0 or 5.0 buggy for no prep and street eliminator drag racing. The lightweight conversion provides a legal 13" wheelbase for narrow no prep bodies and is recommended for experienced builders.

Features

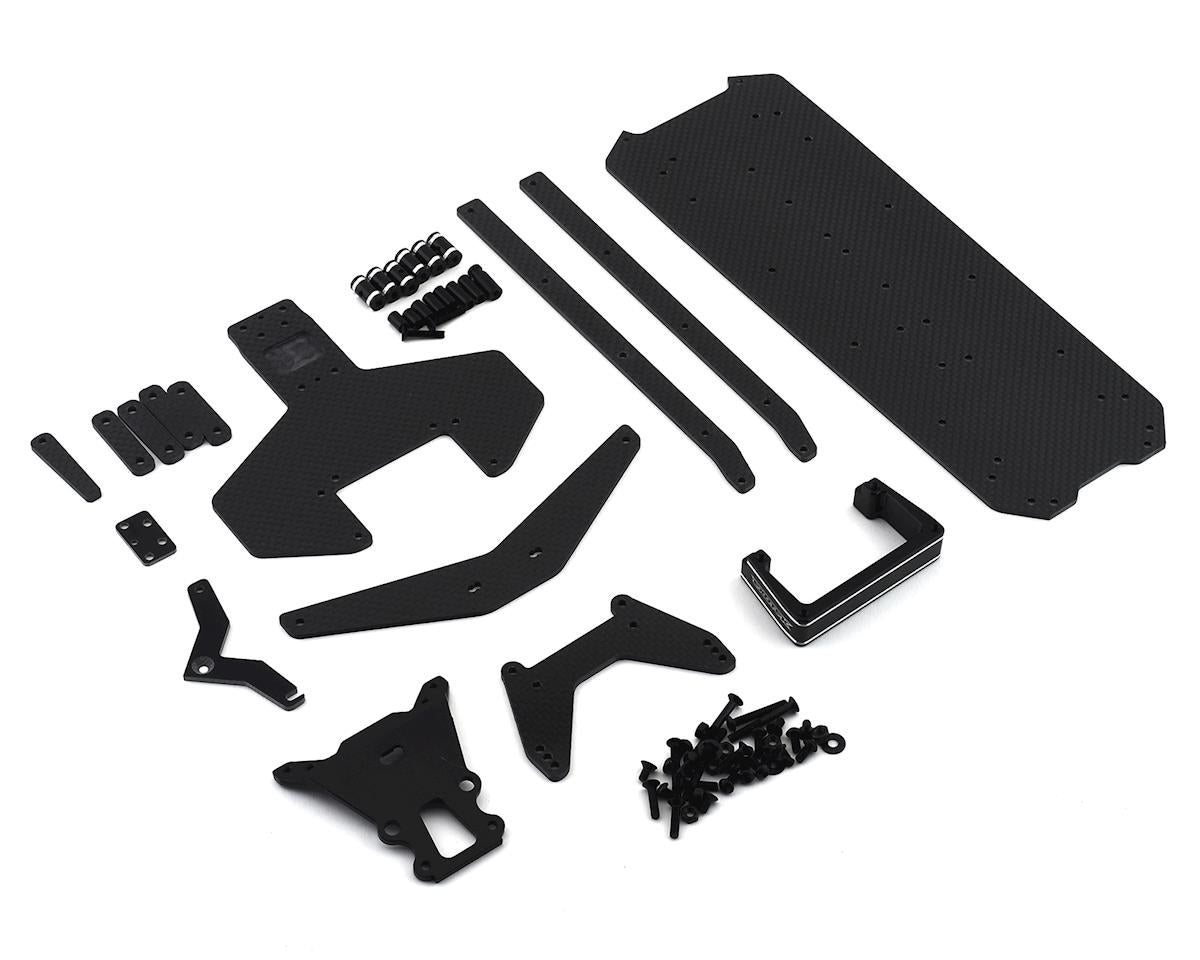

• Carbon fiber chassis conversion, machined in USA
• Heavy duty 2.5mm thick chassis and side rail plates
• Alloy servo mounting block ties into the side rails for a rigid, tweak-free front chassis setup
• Six heavy duty alloy side rail posts and an alloy front kick up plate
• Glossy black and silver alloy parts cut to match the stock 5.0 look
• Four-position shorty LiPo mounting for wheelie and no-wheelie balance adjustments

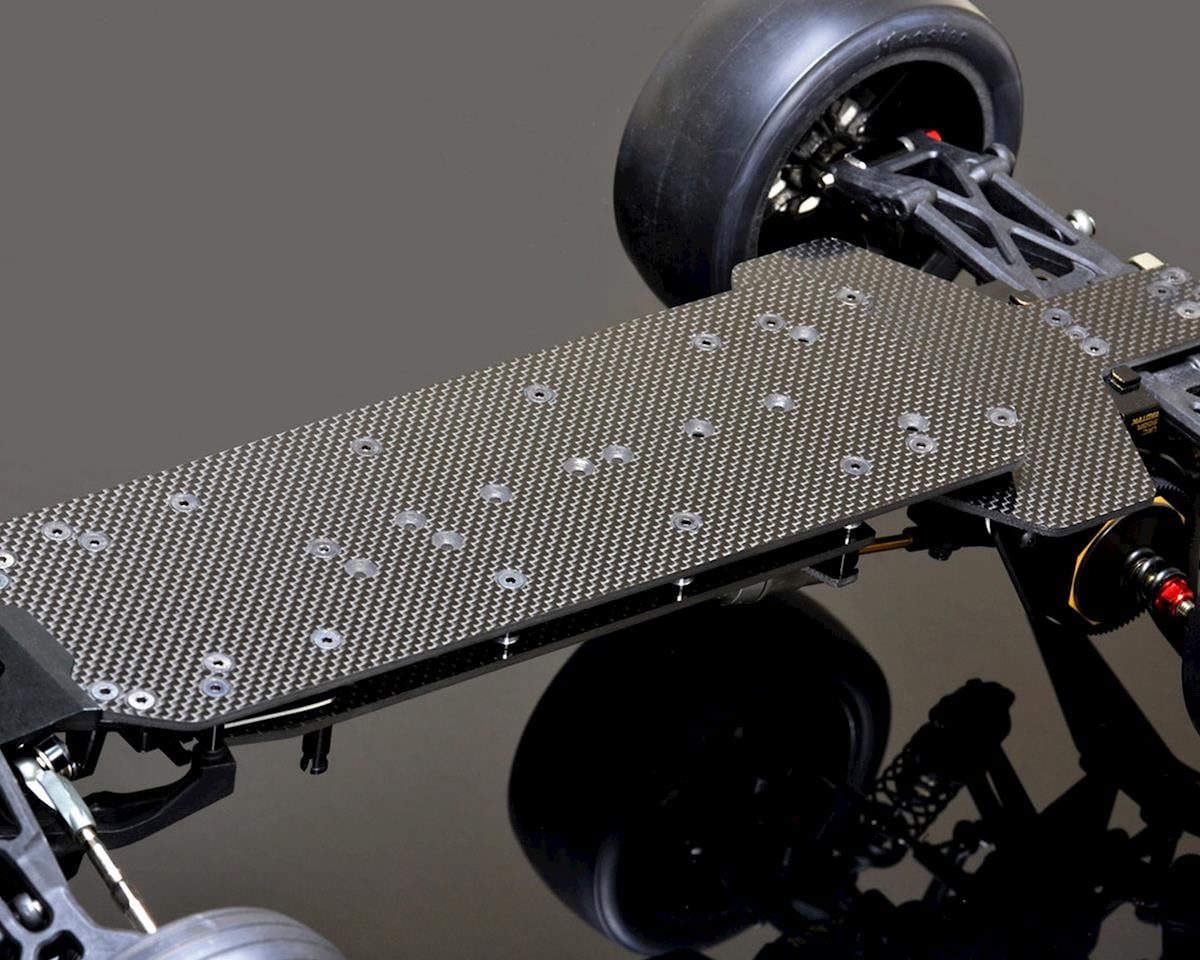

• Two-level chassis design allows the center of gravity to be raised or lowered while keeping the gear box higher for increased traction and straighter drive axles
• Two-layer rear chassis raises the rear roll center for forward launch traction and reduced side-to-side roll
• Multiple weight balance options for street or track use

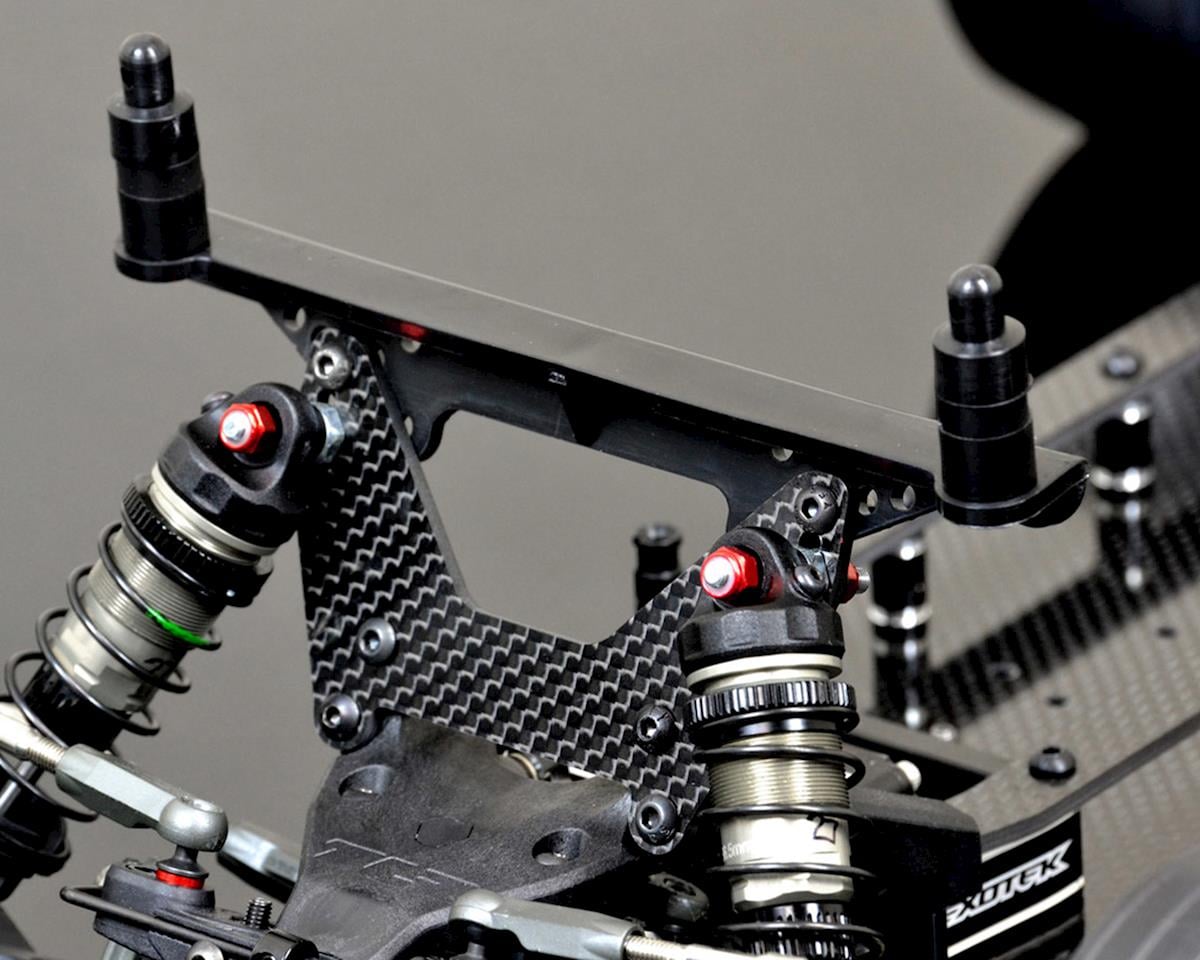

• 3mm carbon fiber front shock tower supports a lower ride height and use of the Traxxas body mount kit, TRA1914R
• Carbon fiber rear body mount plate bolts to the stock 22 wing mounts for use with the Traxxas TRA1914R body post set
• Steel hardware throughout

Important Compatibility Notes

• Designed for use with a 3 gear or 4 gear stand-up gearbox for maximum performance.
• The TLR laydown gear box can be used, but filing under the stock motor plate is required to clear the chassis hardware. The stand-up configuration provides more rear traction.
• To lower the rear ride height further than the stock 22, use front spring sets on the rear shocks.
• 22 3.0 and 4.0 models require the 5.0 front nylon bulkhead, TLR231081.
• Not compatible with 1.0 or 2.0 models.
• Extra wide rear hexes are required to properly bolt on the rear wheels: 22-4 +1.5 or 22SCT rear hex sets.

Includes

• Extra large Exotek logo stickers
• Instruction sheet

Needed to Complete

• TLR 22 3.0 - 5.0 buggy
• 5.0 nylon front bulkhead, TLR231081, when converting a TLR 22 3.0 or 4.0
• Traxxas body mount set, TRA1914R
• Wheels and tires
• Electronics
• No Prep/Street Eliminator drag race body
• Wheelie bar

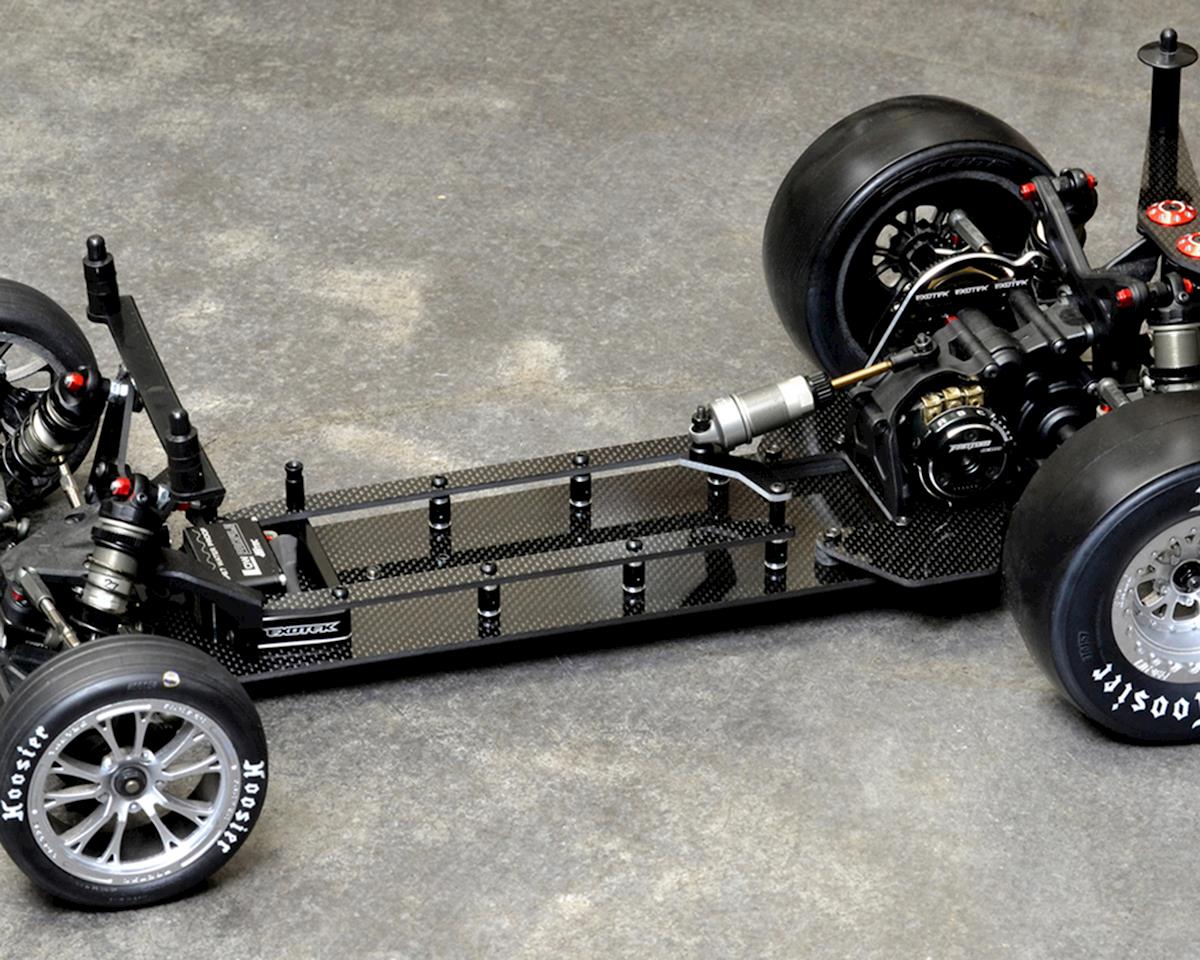

Prototype wheelie bar, Proline drag wheels and tires, and other items shown in photos are not included.
