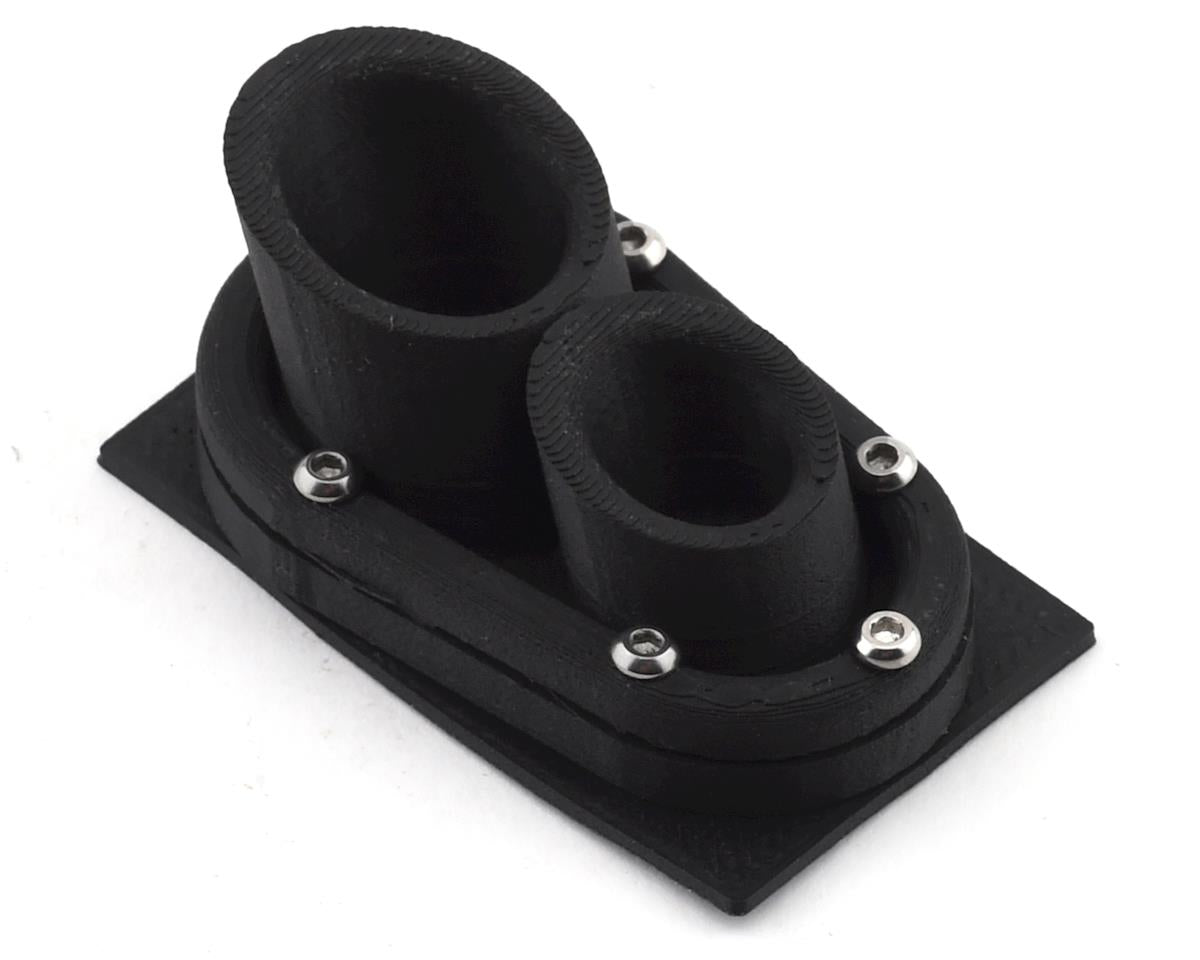

Exclusive RC Double Angle Side Out Exhaust

Add detailed side-exit exhaust styling to a no prep drag car or scale crawler build with the Exclusive RC Double Angle Side Out Exhaust. This carbon nylon printed assembly uses a two-piece design with a single-piece exhaust and backing plate plus a secondary exterior trim ring.

Features

• Two-piece exhaust design
• Printed in carbon nylon filament
• Carbon nylon provides finer detail than PLA filament and sands more easily for finishing and painting
• Template plate and hardware are included for installation

Specifications

• Assembly length: 43mm
• Assembly width: 26mm
• Exhaust pipe diameters: approximately 17.75mm and 14mm

Installation

Use the included template plate to mark the body, then punch out the required hole. Slide the exhaust plate through from inside the body, install the hardware from the inside, and use the trim ring to clamp the assembly to the body. Rubberized adhesive should be used for additional holding power.

As with most 3D printed items, light finish work may be needed. Carefully remove excess strings and stray layer lines with a sharp hobby knife as needed.
