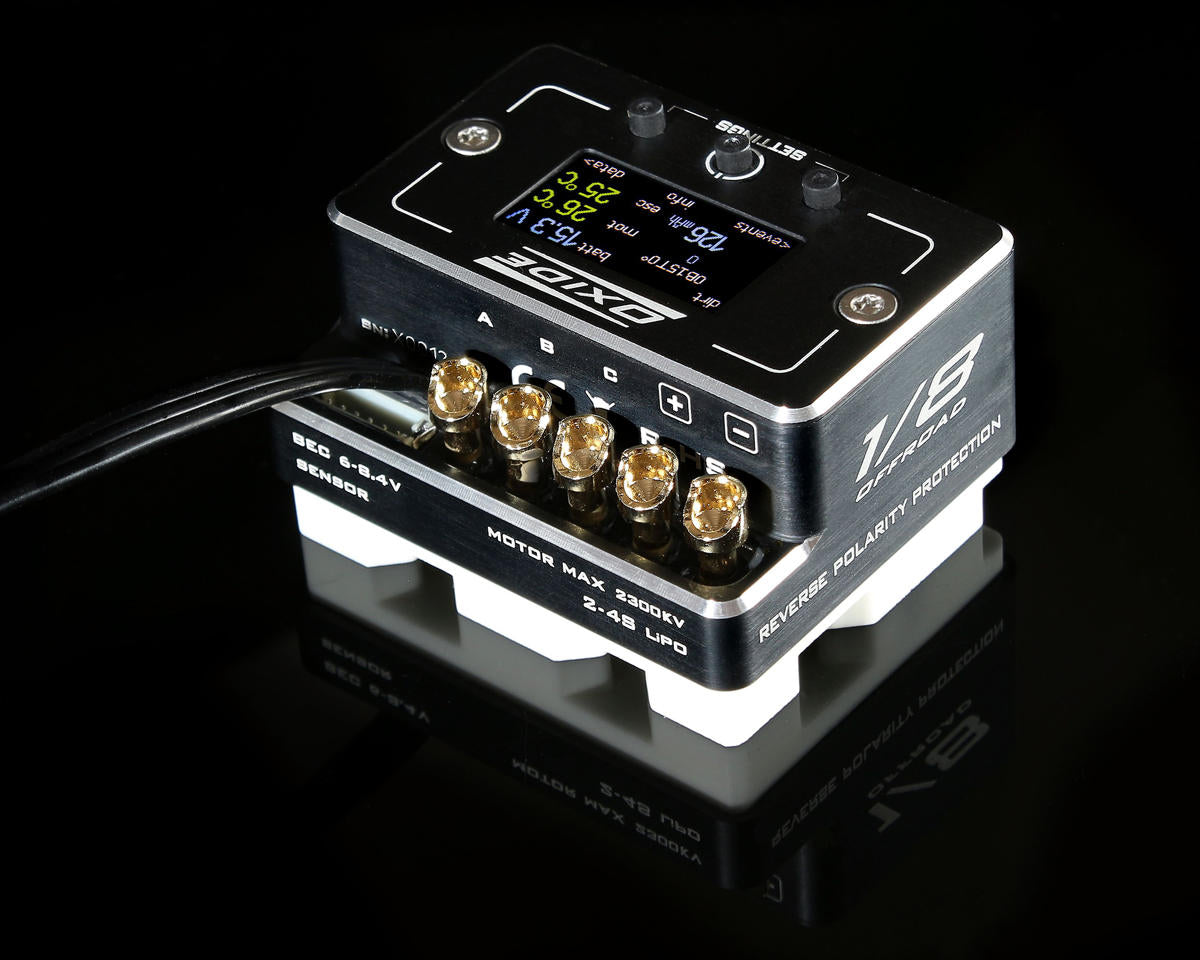

Elceram Oxide 1/8 Brushless ESC w/Color LCD Display

The Elceram Oxide 1/8 Brushless ESC combines a built-in TFT LCD color display with advanced cooling and programmable control for 1/8 off-road RC vehicles. Its 160x80 pixel screen and three-button interface provide direct access to settings, diagnostics, and real-time data without a programming card or mobile app.

Features

• TFT LCD color display for real-time monitoring and easy programming
• Advanced Cooling Technology with Aluminum Oxide heatsink and direct MOSFET cooling
• Real-time monitoring of battery current, ESC temperature, and motor diagnostics
• Reverse polarity protection and intelligent protection algorithms
• Customizable throttle, brake, boost, and turbo timing settings
• Zero timing (Blinky Mode) support for competition use
• Compact and lightweight design
• Installation with double-sided tape or 2.5mm screws

Specifications

• Suggested Application: 1/8
• Motor Type: Brushless - Sensored
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 200A
• Burst Current: 1500A
• Dimensions (LxWxH): 1.97x1.58x1.10in (50x40x28mm)
• Weight: 3.95oz (112g)
• Motor Limits: 2300Kv
• BEC Voltage: 6.0-8.5V (Adjustable)
• BEC Continuous Current: 5A
• BEC Peak Current: 15A
• Motor Connector: Solder Type
• Battery Connector: Solder Type
• Programmable: Yes

Includes

• (1) Oxide 1/8 Brushless ESC
• (1) Set of External Capacitors
• (1) 200mm AWG11 Wires
• (1) BEC Cable (180mm, grey stripe as negative)
• (1) Quick Start Guide
