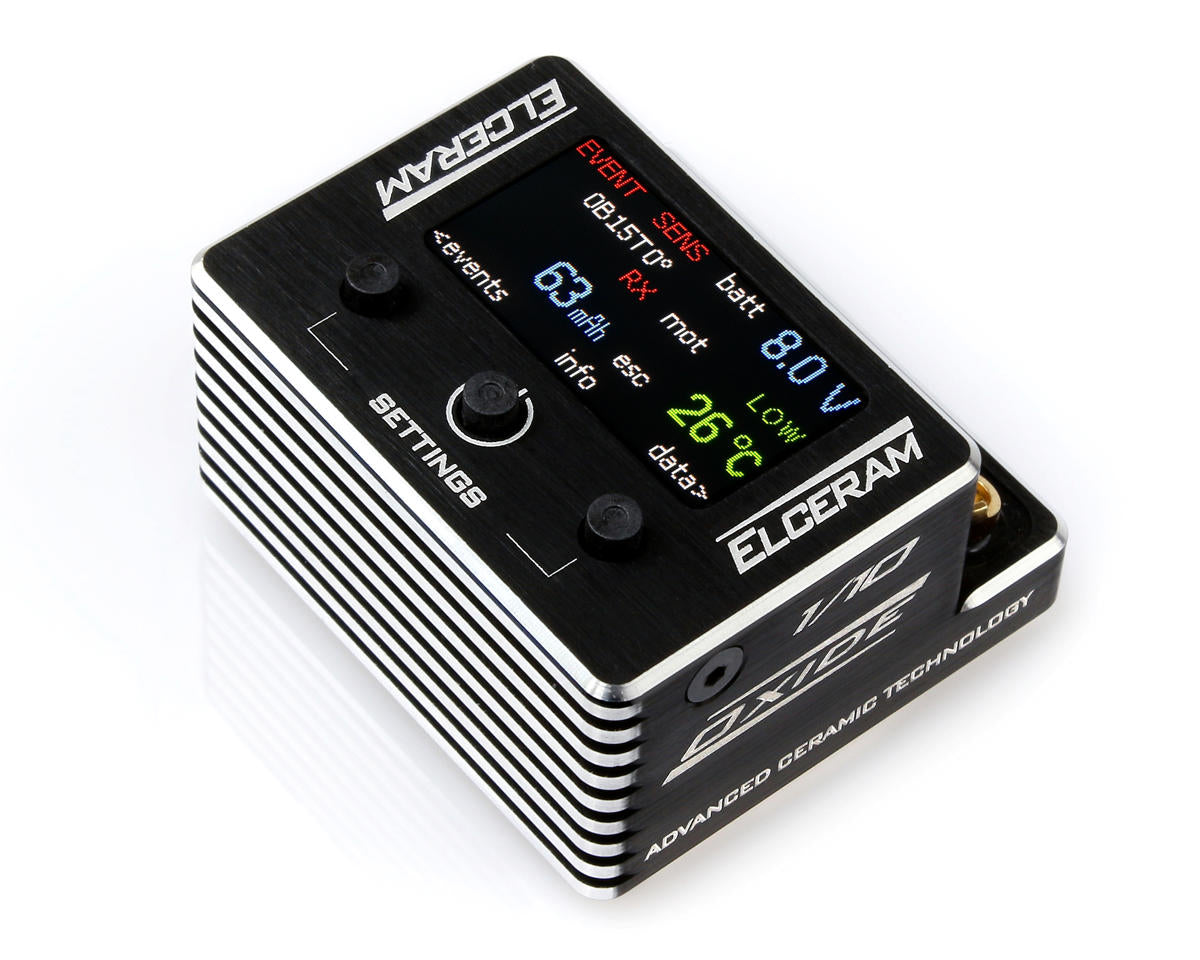

Elceram G2 Oxide 1/10 Brushless ESC w/Color LCD Display

The Elceram G2 Oxide 1/10 Brushless ESC combines sensored brushless motor control with an integrated TFT matte color LCD display. Its Aluminum Oxide ceramic cooling system, direct MOSFET cooling, and built-in monitoring features support setup, diagnostics, and protection in a compact design.

Features

• Advanced Aluminum Oxide ceramic cooling system
• Direct MOSFET cooling for superior heat transfer
• Built-in TFT matte color LCD display
• Three-button programming interface
• Real-time data monitoring and diagnostics
• Intelligent algorithms for ESC and motor protection
• Reverse polarity protection
• Compact and lightweight design
• Adjustable BEC voltage output: 6.0-7.4V
• Zero timing (blinky mode) supported

Specifications

• Suggested Application: 1/10
• Motor Type: Brushless - Sensored
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 160A
• Burst Current: 1500A
• Dimensions (LxWxH): 1.34x1.44x0.79in (34x36.5x20mm)
• Weight: 1.76oz (50g)
• Motor Limits: 6T
• BEC Voltage: 6.0-7.4V (Adjustable)
• BEC Continuous Current: 6A
• BEC Peak Current: 12A
• Motor Connector: Solder Type
• Battery Connector: Solder Type
• Programmable: Yes

Includes

• (1) G2 Oxide 1/10 Brushless ESC
• (1) Set of External Capacitors
• (1) Connection Wire Set
• (1) Quick Start Guide
