Elceram G2 Nitride 1/10 Brushless ESC w/Color LCD Display

The Elceram G2 Nitride 1/10 Brushless ESC combines Aluminum Nitride cooling with an integrated TFT matte color LCD display for direct setup, monitoring, and diagnostics. Three onboard buttons provide access to throttle, brake, boost, and turbo timing adjustments without an external programming card or computer.

Features

• Advanced Aluminum Nitride cooling technology
• Integrated TFT matte color LCD display with 160x80 pixel resolution
• Three-button setup and programming
• Real-time ESC, motor, and battery monitoring
• Intelligent algorithms for system protection
• Reverse polarity protection
• Pre-race and post-race diagnostic tools
• Adjustable BEC voltage output from 6.0-7.4V
• Zero timing (blinky mode) supported

Specifications

• Suggested Application: 1/10
• Motor Type: Brushless - Sensored
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 180A
• Burst Current: 1500A
• Dimensions (LxWxH): 1.34x1.44x0.95in (34x36.5x24mm)
• Weight: 2.08oz (59g)
• Motor Limits: 4.5T
• BEC Voltage: 6.0-7.4V (Adjustable)
• BEC Continuous Current: 6A
• BEC Peak Current: 12A
• Motor Connector: Solder Type
• Battery Connector: Solder Type
• Programmable: Yes

Includes

• (1) G2 Nitride 1/10 Brushless ESC

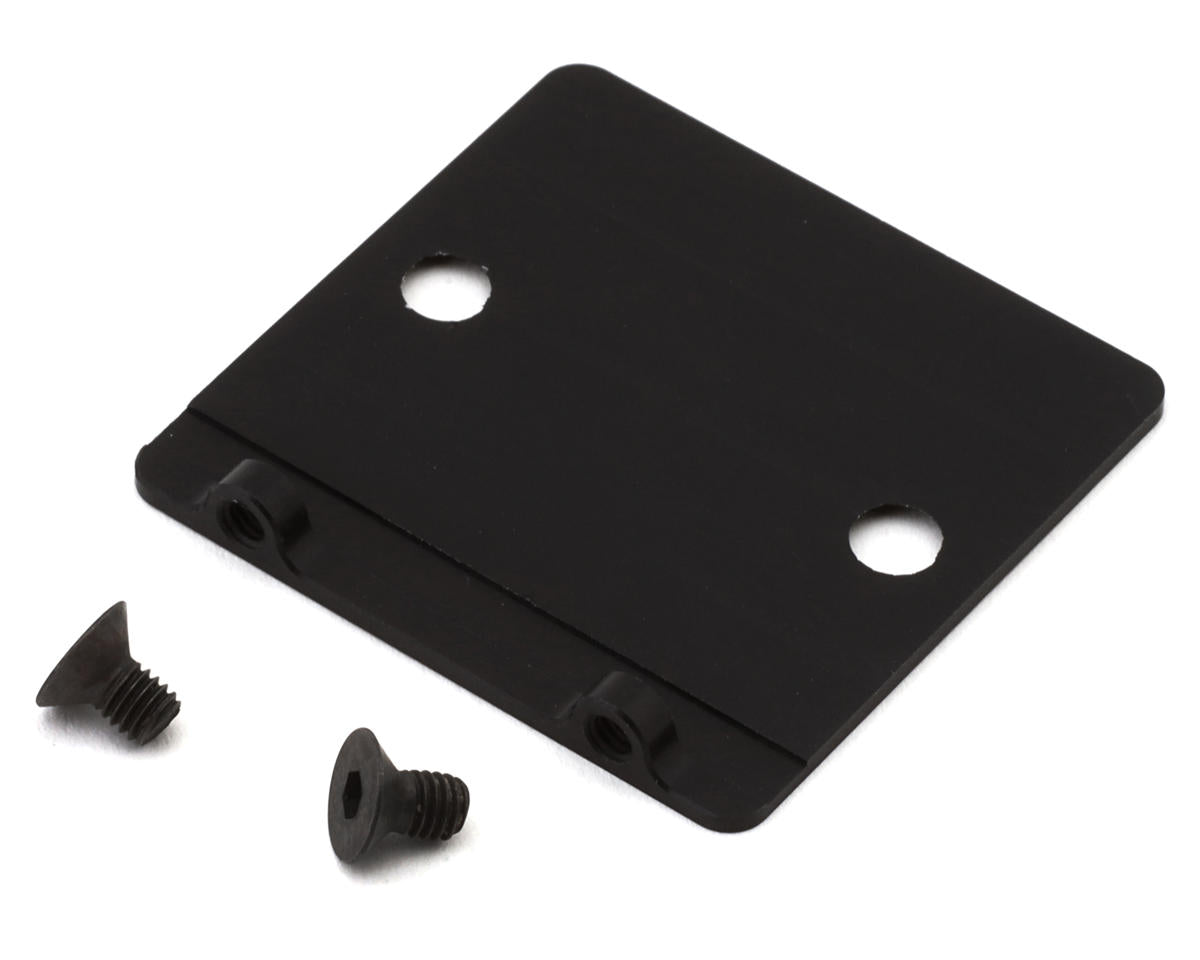

• (1) Aluminum Mounting Plate
• (1) Set of External Capacitors
• Connection Cables
• Instruction Manual
