EcoPower WP827-X24 Metal Gear Micro Servo Direct Fit For Axial™ SCX24 (HV)

The EcoPower WP827-X24 Digital Micro High-Voltage Servo is a direct-fit steering upgrade for compatible Axial™ SCX24 platforms. Its built-in direct axle mount eliminates the need for a separate servo mount while providing a rigid fit and added clearance between the chassis rails.

Features

• High-voltage operation from 6V-8.4V
• 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 speed at 8.4V

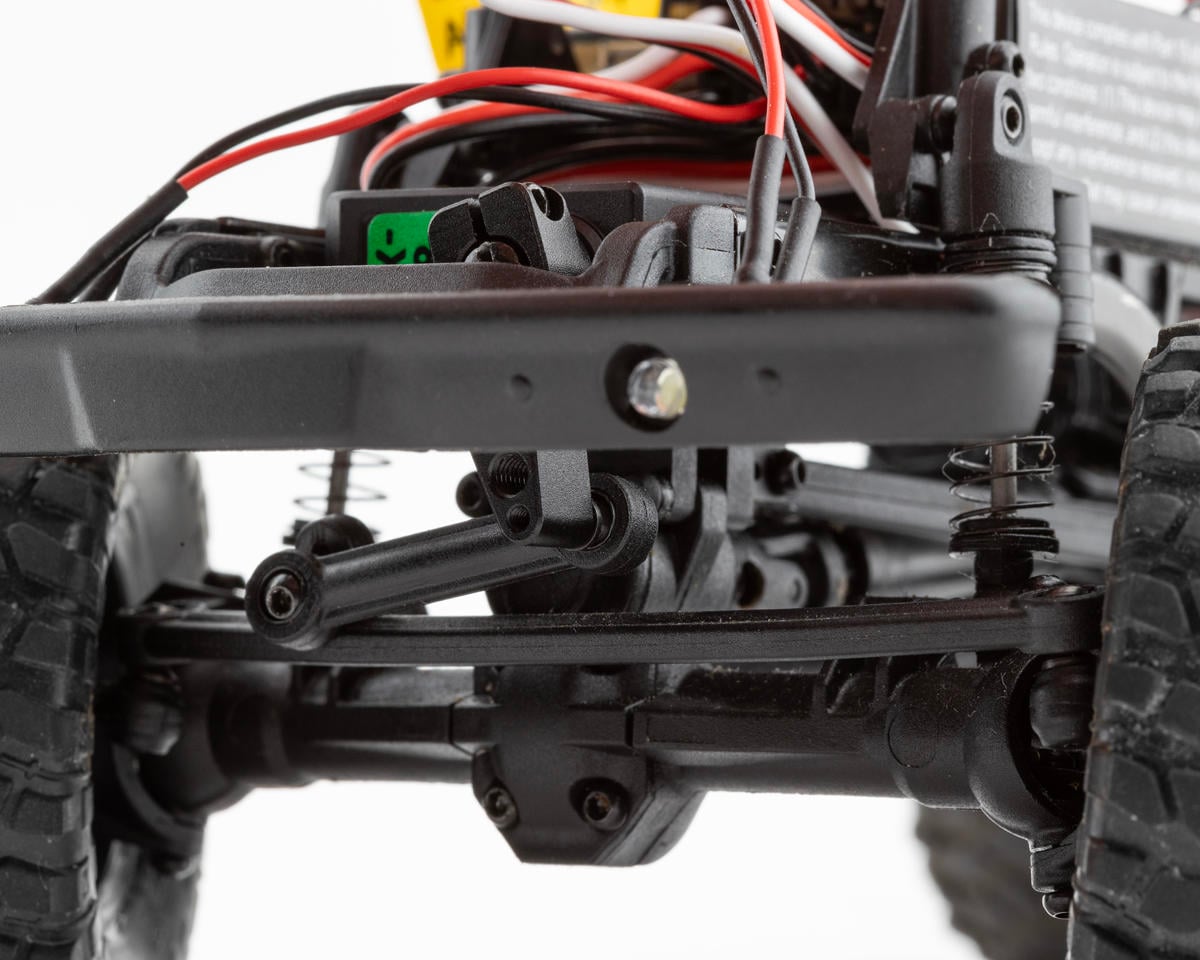

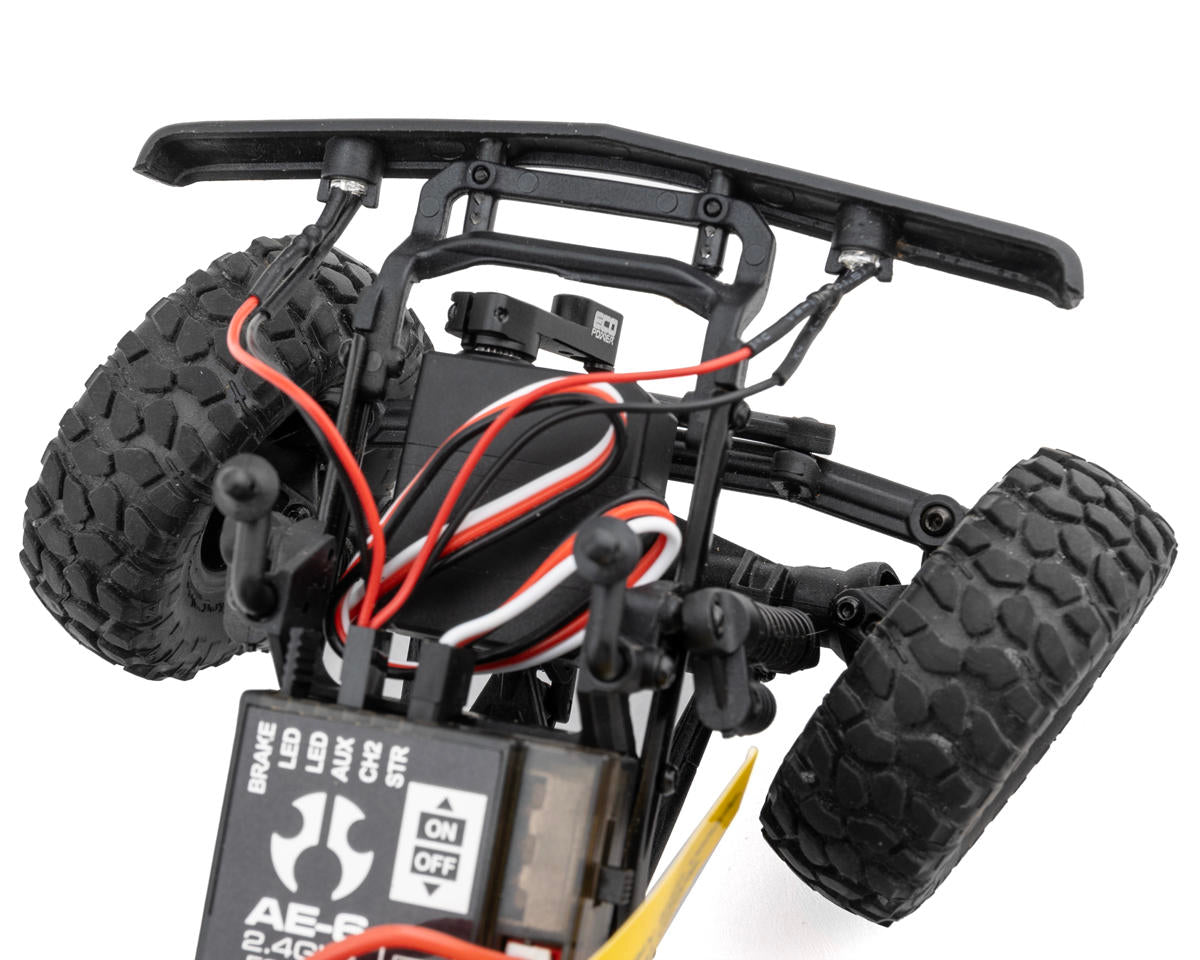

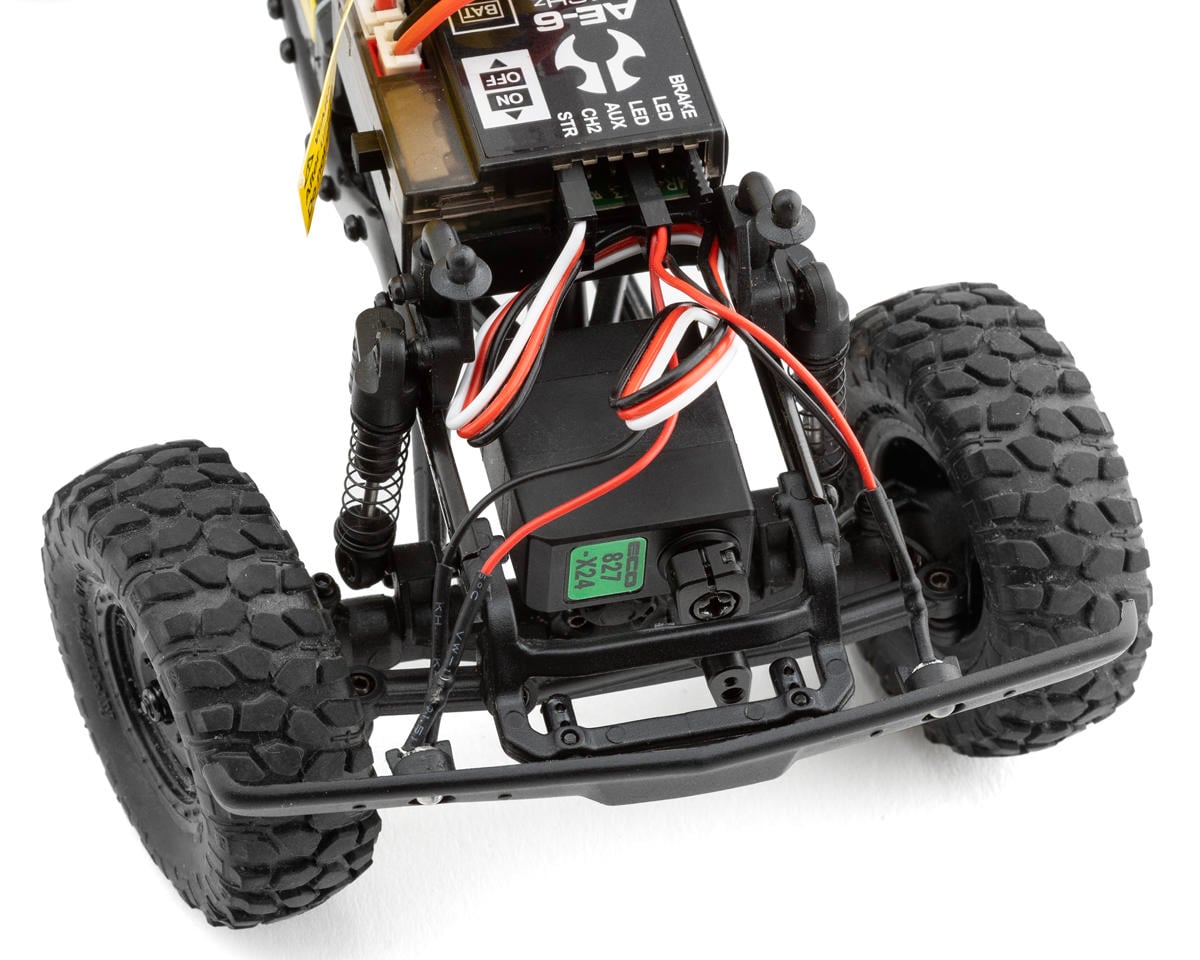

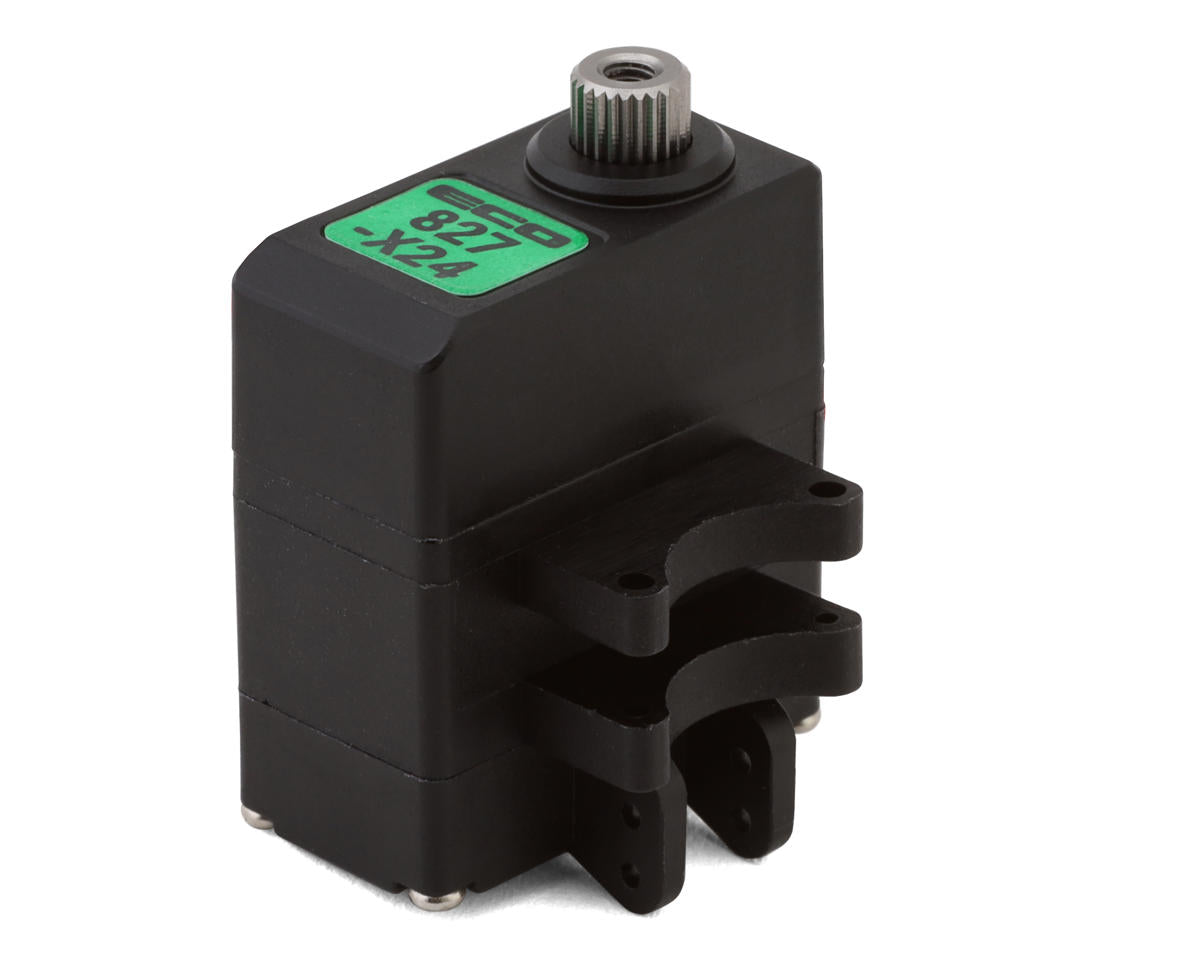

• Direct axle mount for compatible SCX24 platforms
• Metal gears and Mini 25T output shaft spline
• Digital coreless motor
• Waterproof design
• CNC-machined aluminum servo horn with multiple mounting holes
• Lifetime gear warranty
• 1-year warranty

Specifications

• Application: 1/24 & 1/18
• Input Voltage: 6V-8.4V
• Speed: 0.10 sec/60 at 6.0V; 0.08 sec/60 at 8.4V
• Torque: 48.6oz.in (3.5Kg-CM) at 6.0V; 62.5oz.in (4.5Kg-CM) at 8.4V
• Motor: Digital Coreless
• Output Shaft: Mini 25T
• Gear Material: Metal w/Lifetime Gear Warranty
• Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
• Weight: 16g

Includes

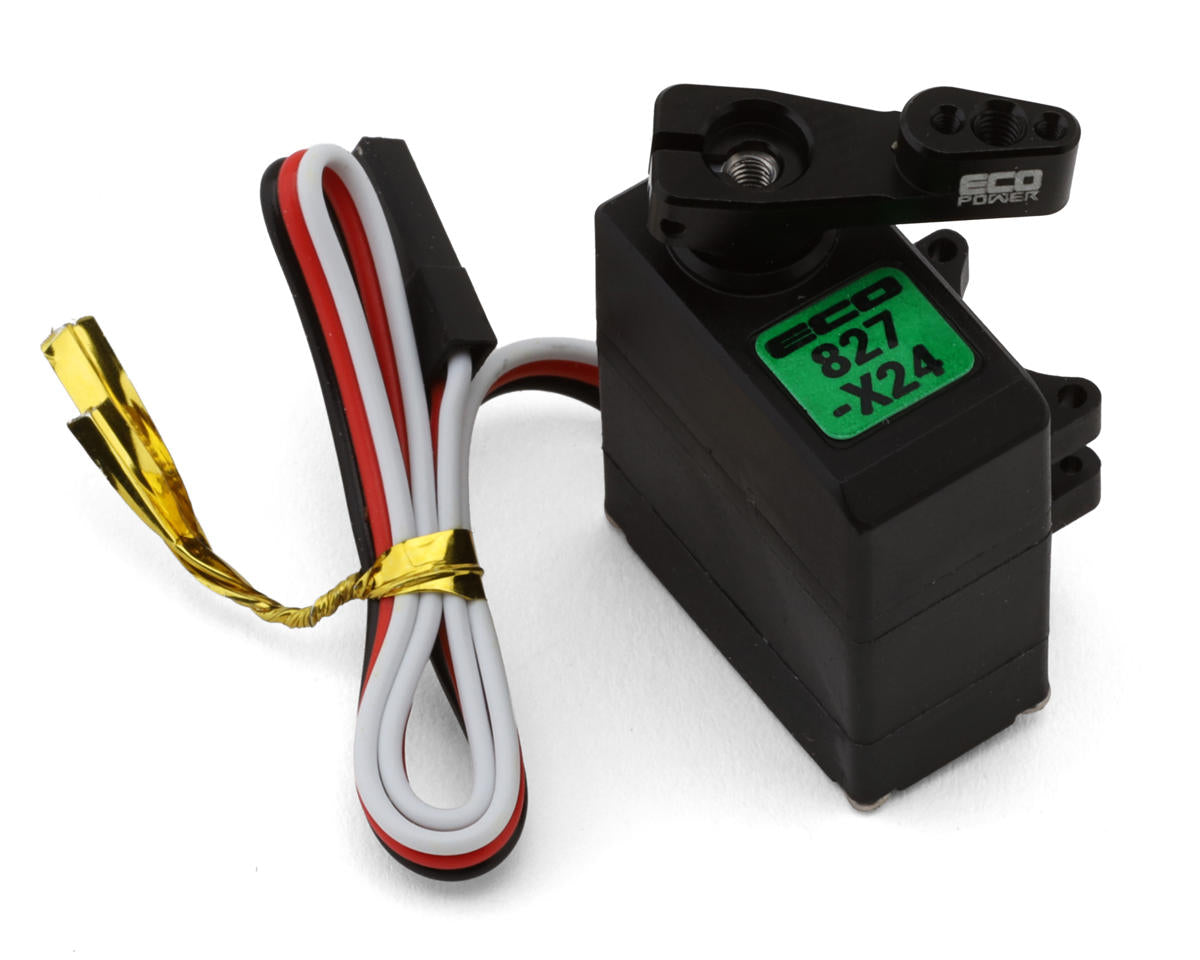

• (1) WP827-X24 Digital Micro Servo

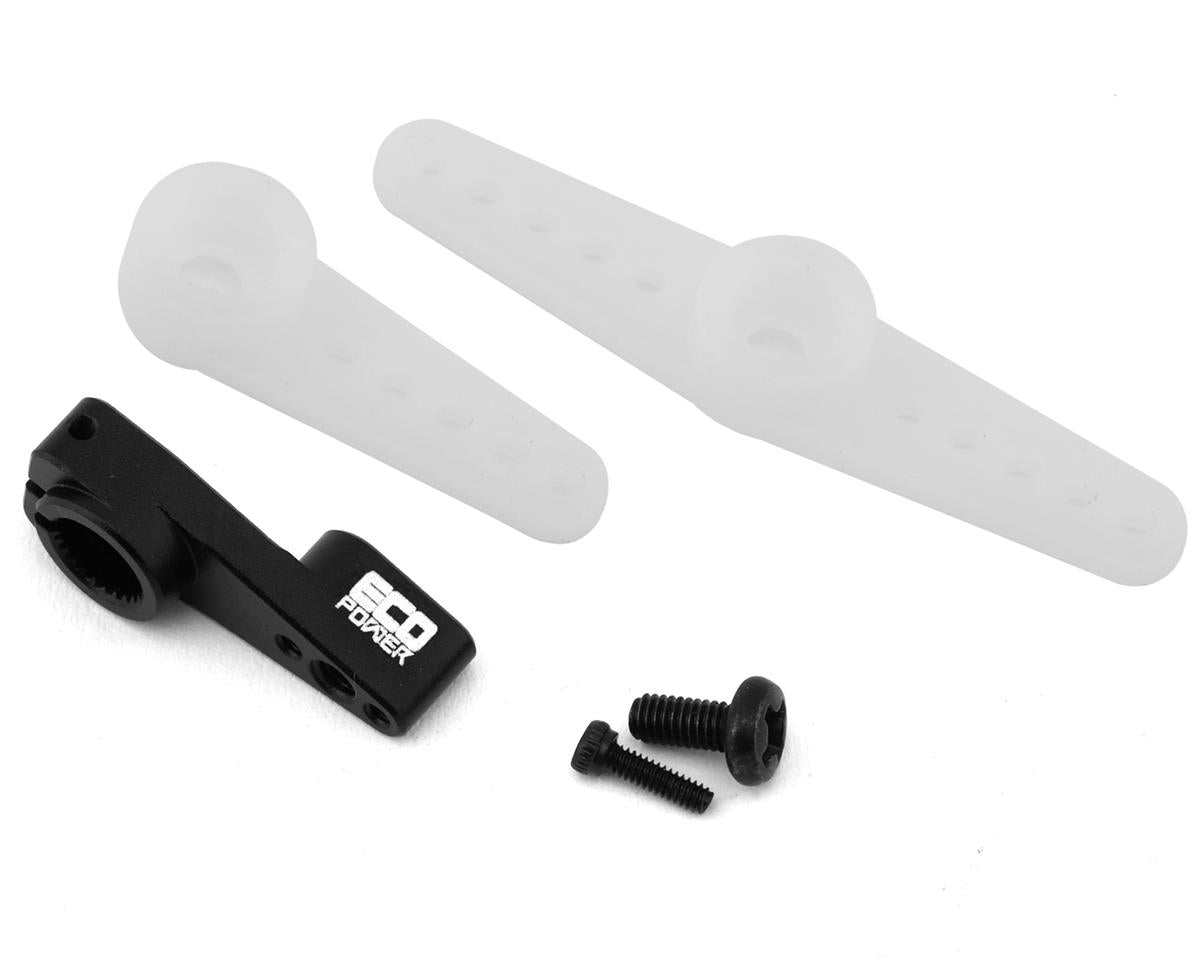

• (1) Aluminum Servo Horn
• (2) Composite Servo Horns
• (1) Lifetime Gear Warranty

Compatibility and Notes

• Compatible with all SCX24 platforms and wheelbase except the Deadbolt & Betty versions.
• Do not exceed 8.4 Volt, as it might damage the servo.
• Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points.
