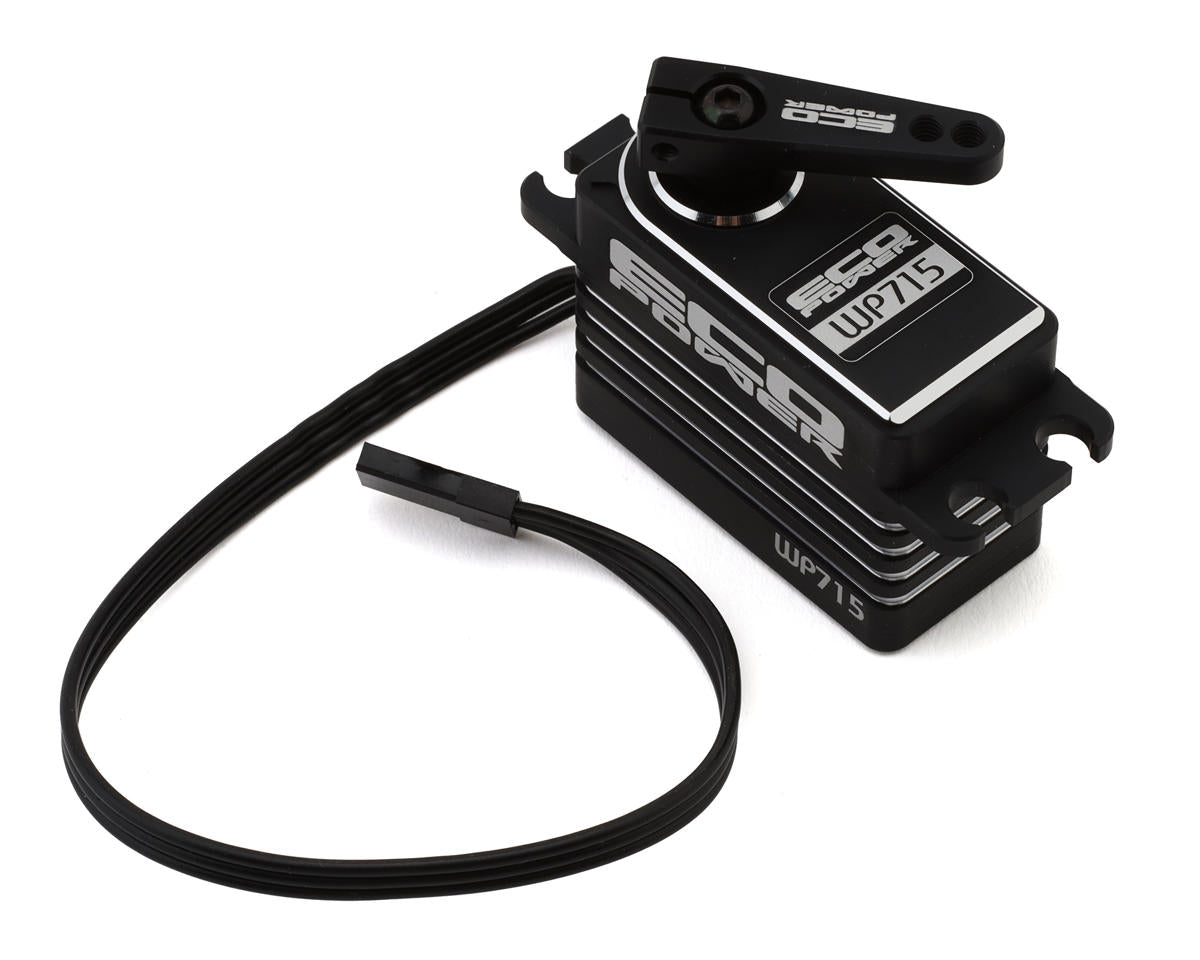

EcoPower WP715 Low Profile High Torque Brushless Rock Crawling/Bashing Servo

The EcoPower WP715 is a low-profile, high-torque brushless servo for 1:10 scale rock crawlers and bashers. It features a waterproof design, high-voltage circuitry, full steel gears, and a black aluminum case.

With a 25T output shaft and brushless digital motor, the WP715 delivers up to 715oz-in (51.4 kg-cm) of dynamic torque at 8.4V. It is ideal for applications including the SCX10 Pro and Vanquish VRD.

Features

• Brushless digital motor
• Waterproof
• High-voltage circuitry
• Full steel gears with Lifetime Gear Warranty
• Full black aluminum case
• 25T output shaft

Specifications

• Application: 1:10 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.06/60° sec
• Operating Speed @ 7.4V: 0.055/60° sec
• Operating Speed @ 8.4V: 0.05/60° sec
• Dynamic Torque @ 6.0V: 530oz-in (38.1 kg-cm)
• Dynamic Torque @ 7.4V: 650oz-in (46.0 kg-cm)
• Dynamic Torque @ 8.4V: 715oz-in (51.4 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Steel w/Lifetime Gear Warranty
• Weight: 63g
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 39.6x20x30.4mm
• Length (Bottom to Mount): 19mm

Includes

• (1) Lifetime Gear Warranty
• (1) 715 Low Profile High Torque servo
• (1) Aluminum clamping servo horn

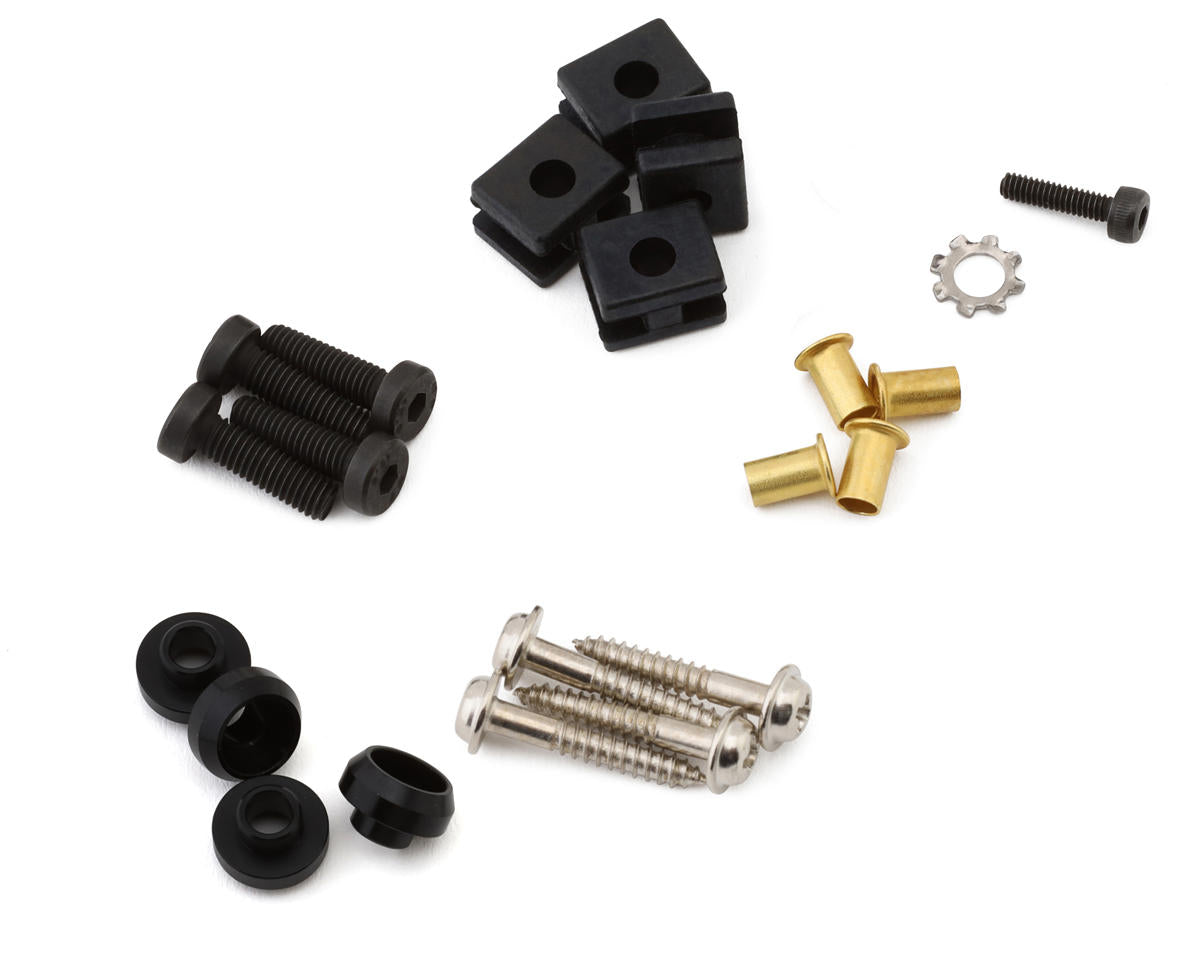

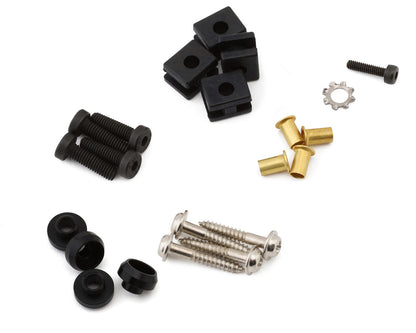

• Servo hardware and grommets
